Intermediate Shaft Speed Sensor: Removal

  1. Raise and support the vehicle.
  2. Disconnect intermediate shaft speed (ISS) sensor electrical connector.

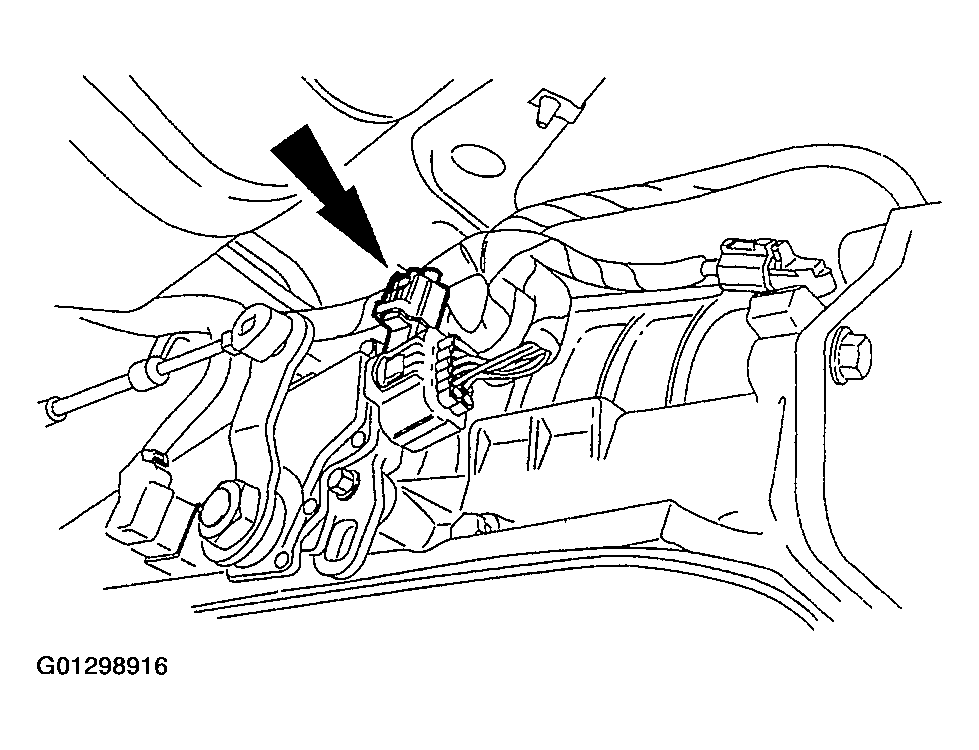

    Fig 1: Disconnecting Intermediate Shaft Speed (ISS) Sensor Electrical Connector
    G01298916Courtesy of FORD MOTOR CO.
  3. Remove ISS sensor.
    1. Remove the ISS sensor screw.
    2. Remove the ISS sensor from the transmission.
    • Inspect the ISS sensor O-ring for damage. If damaged, install a new O-ring.

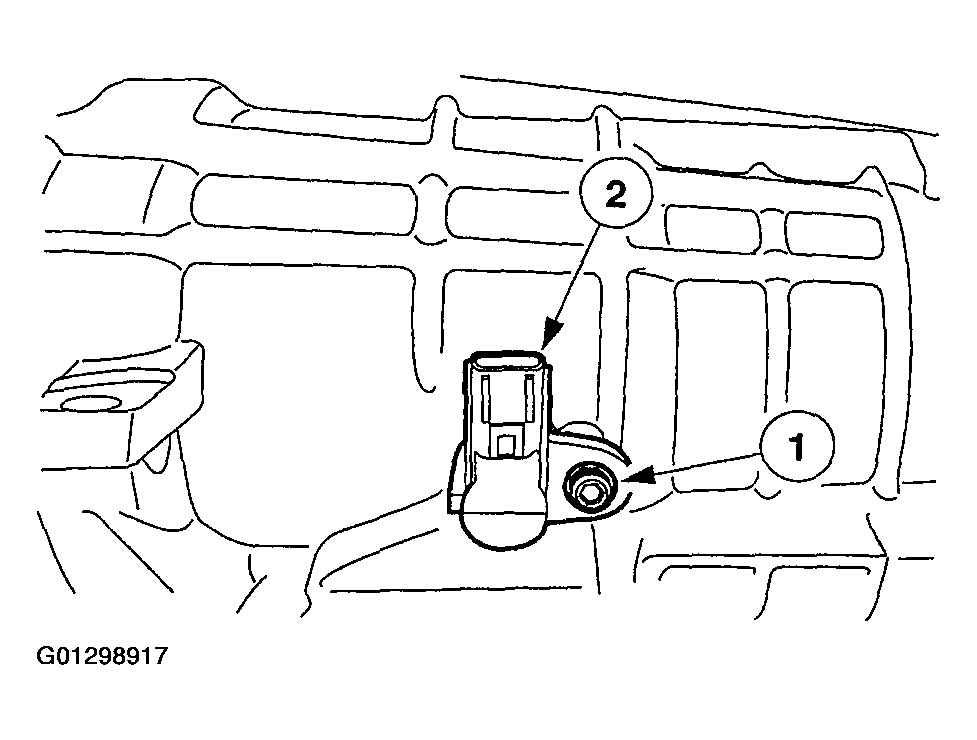

    Fig 2: Removing ISS Sensor Screw
    G01298917Courtesy of FORD MOTOR CO.
