Forward Clutch: Disassembly

    CAUTION: The retaining ring is a select fit. See assembly procedure if installation of a new ring or clutch plate pack is required.
    Fig 1: Removing Forward Clutch Retaining Ring And Pressure Plate
    G01299908Courtesy of FORD MOTOR CO.
  1. Remove the forward clutch pressure plate.
    1. Remove the forward clutch retaining ring.
    2. Remove the forward clutch pressure plate.
    2. CAUTION: If new plates are being used, they should be soaked in clean transmission fluid for at least 30 minutes before assembly.
    CAUTION: Clutch discs are directional. Note direction of grooves for installation.

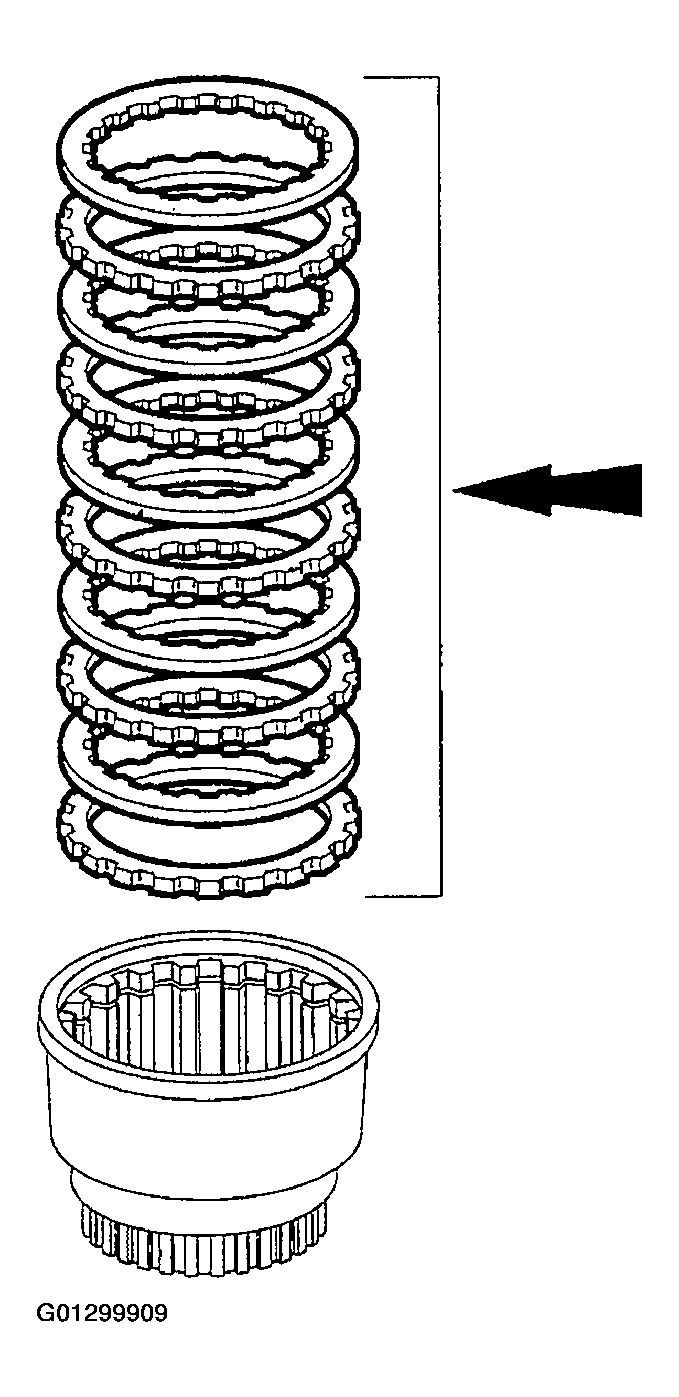

    Fig 2: Removing Forward Clutch Disc Pack
    G01299909Courtesy of FORD MOTOR CO.
  2. Remove the forward clutch disc pack.
    • Inspect the forward clutch plates for wear, damage or overheating.
  3. WARNING: Use caution when releasing tool pressure on the clutch piston springs. Failure to follow these instructions may result in personal injury.
    CAUTION: Do not fully depress the special tool or damage to the spring retainer may occur.

    Using the special tool to remove the forward clutch piston retaining ring.

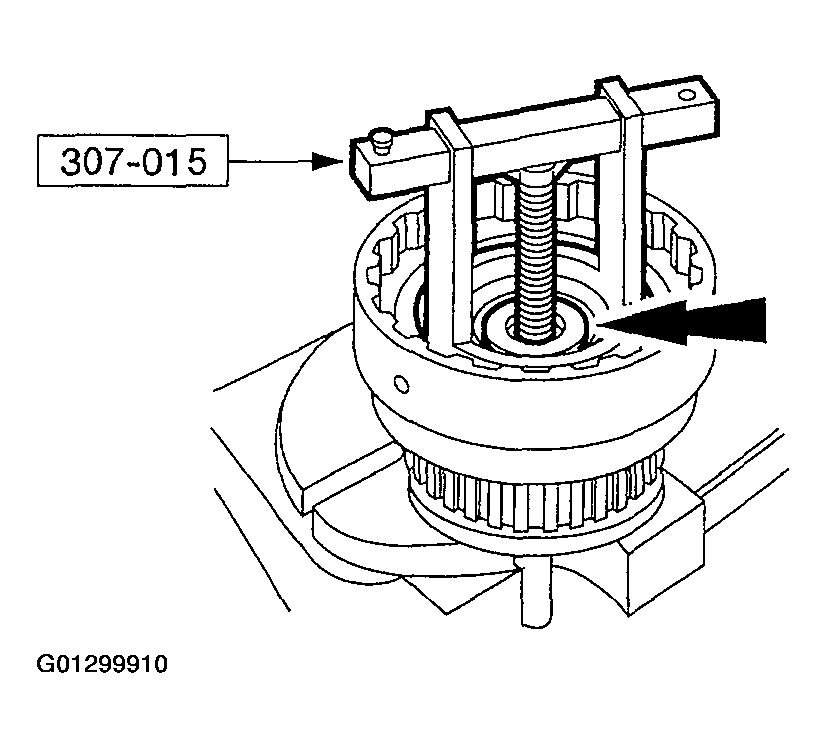

    Fig 3: Removing Forward Clutch Piston Retaining Ring
    G01299910Courtesy of FORD MOTOR CO.
  4. Relieve the forward clutch spring tension and remove the special tool.
  5. Remove the forward clutch piston spring retainer and 15 forward clutch piston springs.
    1. Remove the forward clutch piston spring retainer.
    2. Remove the 15 forward clutch piston springs.
      • Inspect the forward clutch piston springs for distortion.

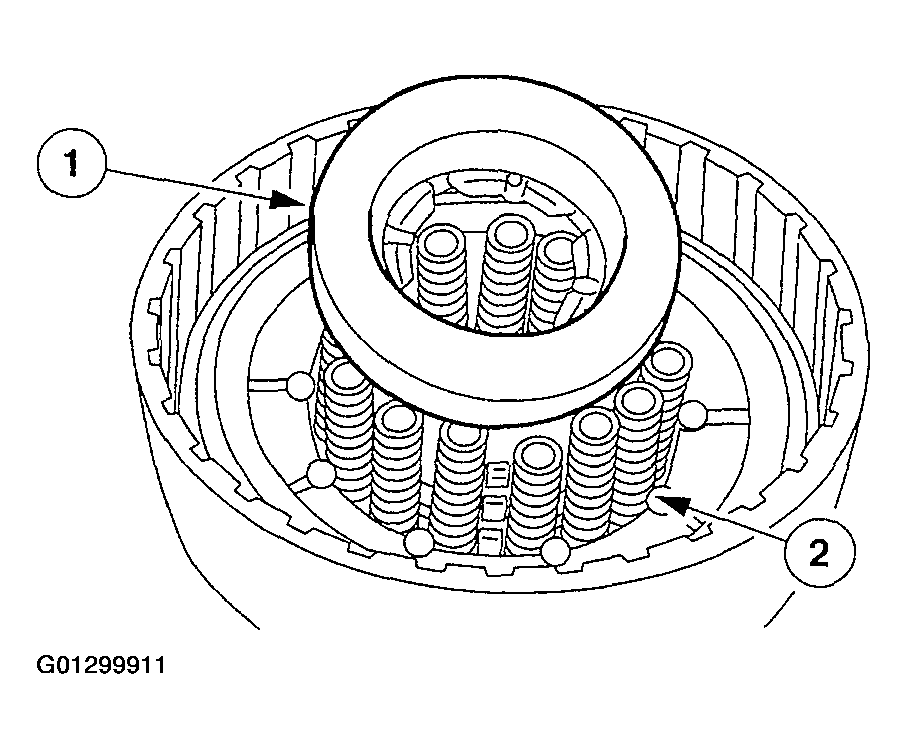

      Fig 4: Removing Forward Clutch Piston Spring Retainer
      G01299911Courtesy of FORD MOTOR CO.
  6. WARNING: Air pressure must not exceed 138 kPa (20 psi). Wear safety glasses when using compressed air. Make sure the cylinder is facing down as shown. Failure to follow these instructions may result in personal injury.

    Remove the forward clutch piston.

    1. Place the forward clutch cylinder with forward clutch piston facing down.
    2. Install the center support on the forward clutch cylinder.
    3. Apply air pressure to the left port of the center support.

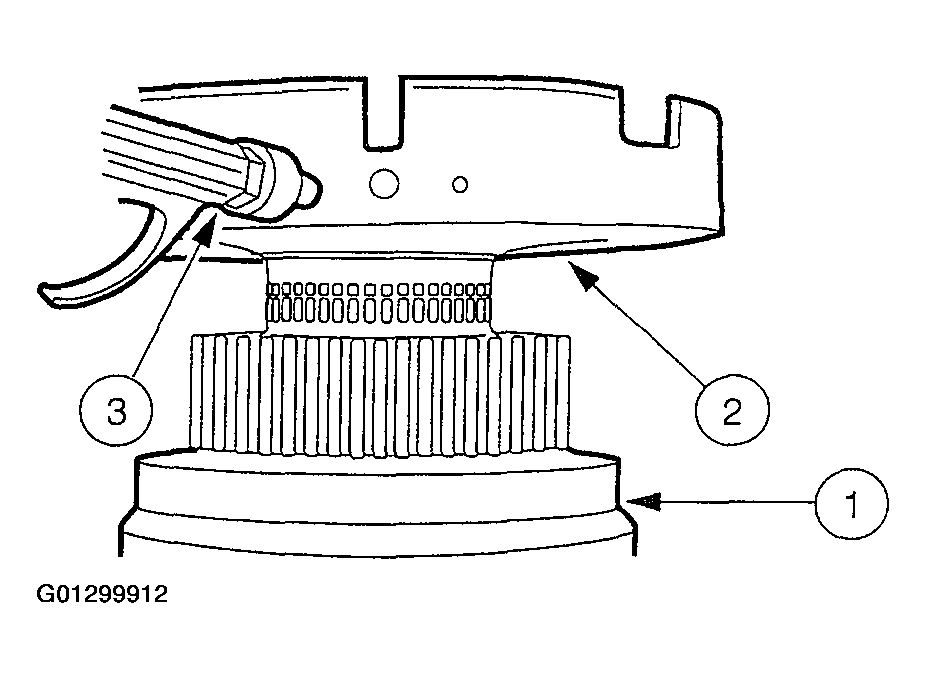

    Fig 5: Applying Air Pressure To Left Port Of Center Support
    G01299912Courtesy of FORD MOTOR CO.
  7. Remove and discard the forward clutch piston seals.
    1. Remove the forward clutch piston outer seal and inspect the forward clutch piston for cracks.
    2. Remove forward clutch cushion spring.
    3. Remove the forward clutch piston inner seal.

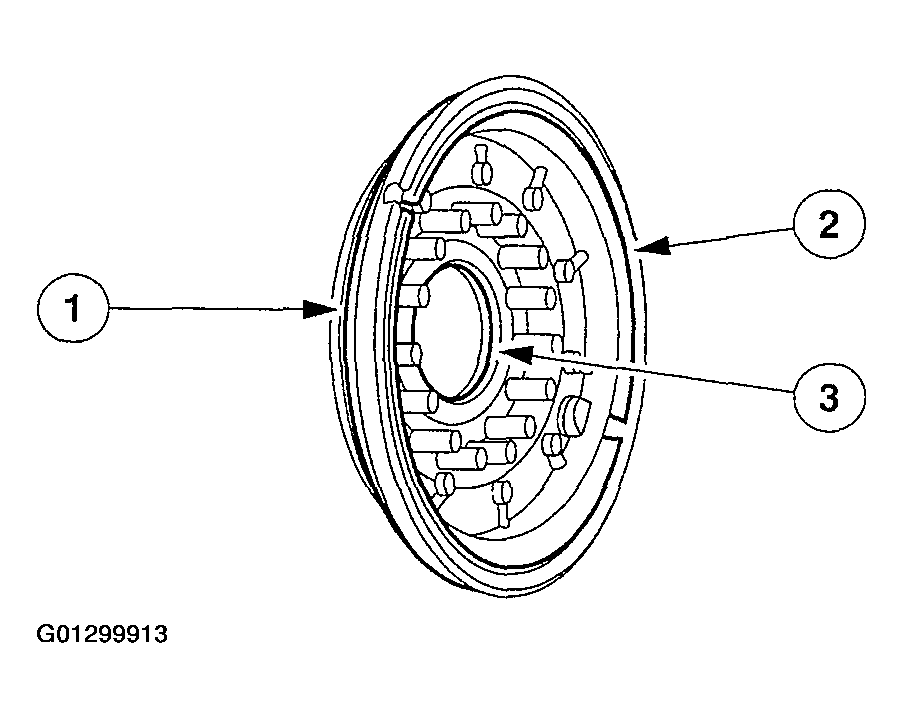

    Fig 6: Removing And Discarding Forward Clutch Piston Seals
    G01299913Courtesy of FORD MOTOR CO.
  8. Inspect the remaining forward clutch drum components for damage or wear, install new components as necessary.
    1. Inspect the forward clutch cylinder surfaces for scores or burrs. Minor scores or burrs can be removed with a crocus cloth. Install a new forward clutch cylinder if it is badly scored or damaged.
    2. Inspect forward clutch piston for scores or burrs. Minor scores or burrs may be removed with a crocus cloth. Install a new forward clutch cylinder if it is badly scored or damaged.
    3. Make sure the check ball is free and clear of debris, has freedom of movement, and is correctly seated.
    Fig 7: Identifying Check Ball
    G01299914Courtesy of FORD MOTOR CO.
  9. Inspect the forward clutch drum components.
    • Inspect clutch plate serration for scores or burrs.
    • Inspect fluid passages for obstructions. Clean out all passages.
    • Inspect the friction clutch plates, steel clutch plates and clutch pressure plate for worn or scored bearing surface. Install new parts that are deeply scored.
    • Check clutch plates for flatness and fit on the clutch hub serrations. Discard any plate that does not slide freely on the serrations or that is not flat.
    • Check clutch hub thrust surfaces for scores and clutch hub splines for wear.
    • Inspect for damage or wear to the clutch disc grooves and retaining ring grooves.
    10. NOTE: Inspect the needle bearing for damage and install new if necessary.

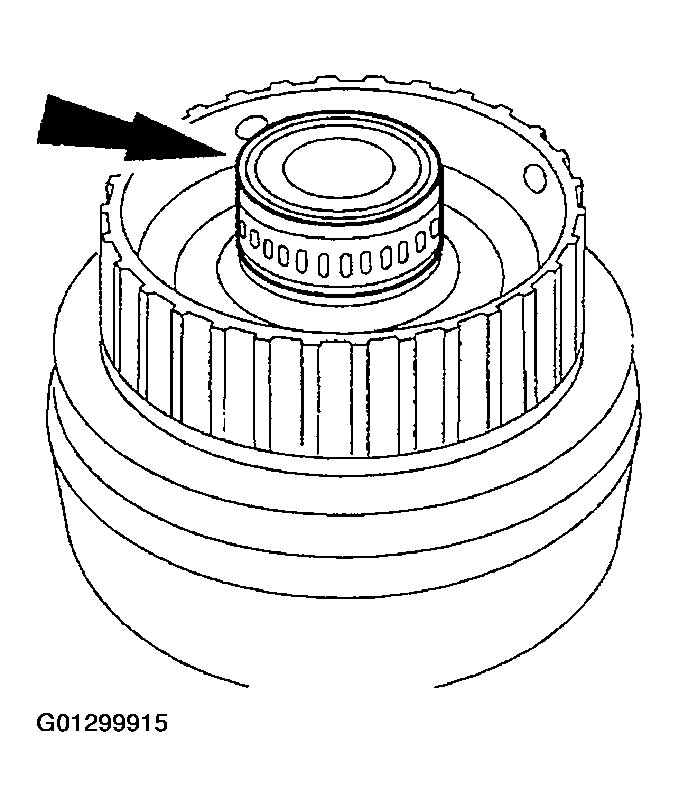

    Fig 8: Inspecting Needle Bearing For Damage
    G01299915Courtesy of FORD MOTOR CO.
  10. Inspect the needle bearing for damage.
    11. CAUTION: Do not overtighten the tool or damage to the forward clutch bearing can occur.
    NOTE: This step only needs to be carried out if there is damage to the bearing.

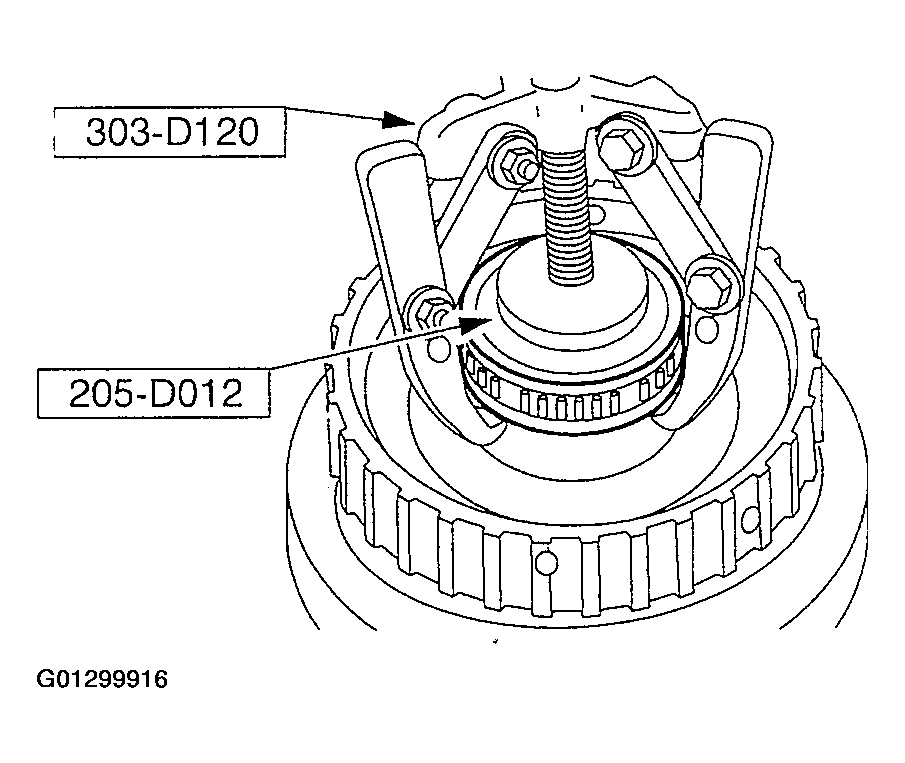

    Fig 9: Removing Forward Clutch Bearing
    G01299916Courtesy of FORD MOTOR CO.
  11. Using the special tools, remove the forward clutch bearing.
    12. NOTE: This step only needs to be carried out if there is damage to the bearing.
    Fig 10: Inspecting Forward Clutch Outer Race For Scoring
    G01299917Courtesy of FORD MOTOR CO.
  12. Inspect the forward clutch outer race for scoring or nicks, if any damage is found installation of a new forward clutch drum will needed.
