Valve - Spring Installed Length

  1. Measure the installed length of each valve spring.
    • For additional information, refer to SPECIFICATIONS .
    • If out of specification, install new components.

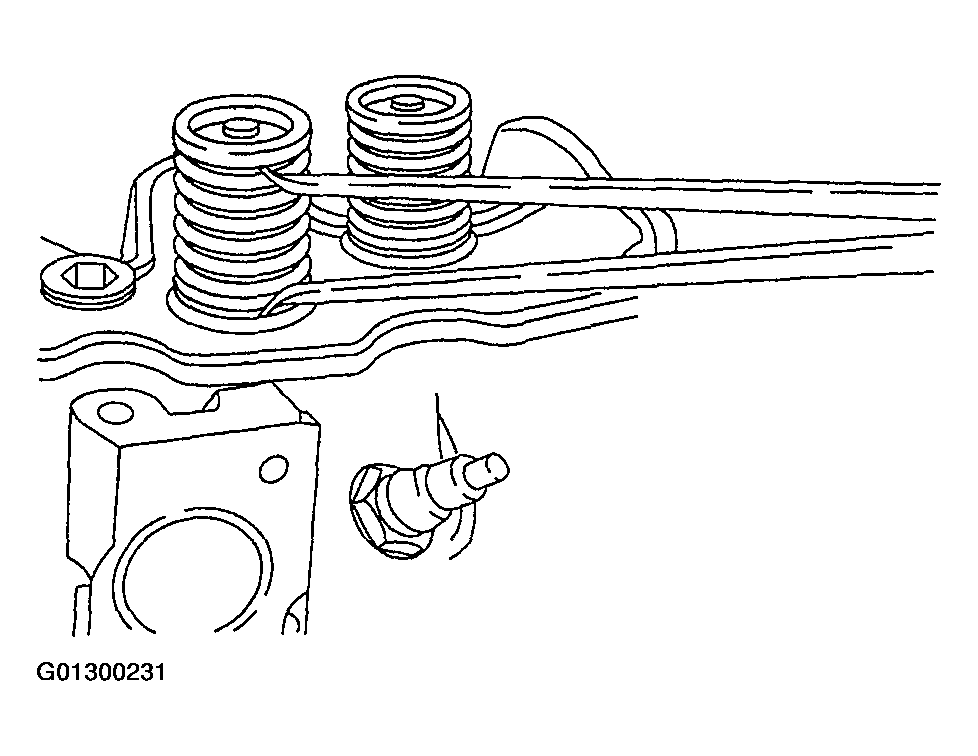

    Fig 1: Measuring Length Of Valve Spring
    G01300231Courtesy of FORD MOTOR CO.
