Connector Views

Fig 1: A/C Clutch Solenoid Connector End View (C100)

G07832569

Courtesy of FORD MOTOR CO.

Fig 2: Crankshaft Position Sensor Connector End View (C101)

G07832570

Courtesy of FORD MOTOR CO.

Fig 3: Generator Connector End View (C102a)

G07832571

Courtesy of FORD MOTOR CO.

Fig 4: Generator Connector End View (C102b)

G07832572

Courtesy of FORD MOTOR CO.

Fig 5: Oil Pressure Switch Connector End View (C103)

G07832573

Courtesy of FORD MOTOR CO.

Fig 6: Knock Sensor Connector End View (C109)

G07832574

Courtesy of FORD MOTOR CO.

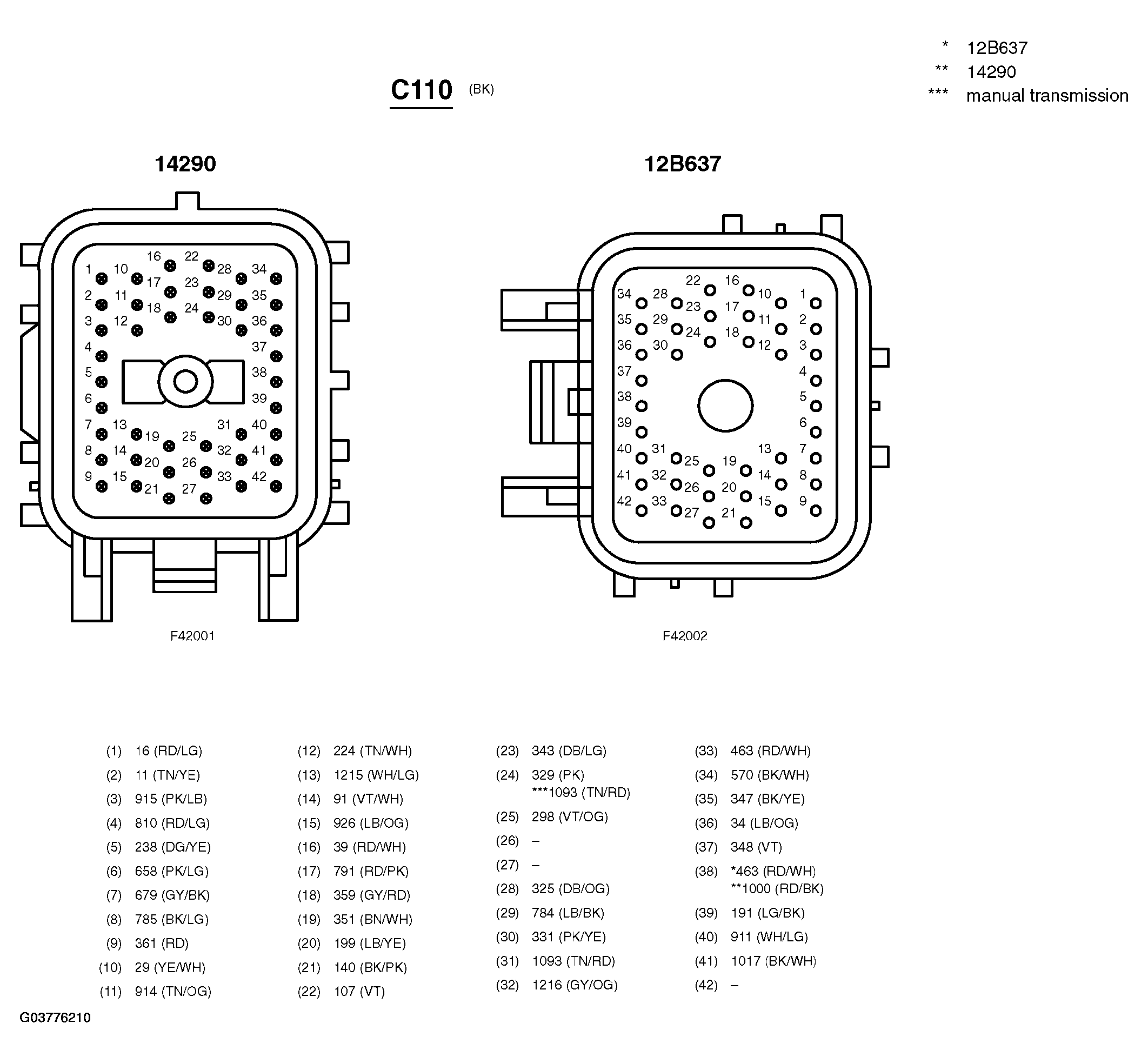

Fig 7: Inline Connector End View (C110)

G03776210

Courtesy of FORD MOTOR CO.

Fig 8: Speed Control Servo Connector End View (C122)

G07832575

Courtesy of FORD MOTOR CO.

Fig 9: Brake Fluid Level Switch Connector End View (C124)

G07832576

Courtesy of FORD MOTOR CO.

Fig 10: Windshield Wiper Motor Connector End View (C125)

G07832577

Courtesy of FORD MOTOR CO.

Fig 11: Inline Connector End View (C126)

G07832578

Courtesy of FORD MOTOR CO.

Fig 12: Mass Air Flow (MAF) Sensor Connector End View (C128)

G07832579

Courtesy of FORD MOTOR CO.

Fig 13: Horn Connector End View (C131)

G07832580

Courtesy of FORD MOTOR CO.

Fig 14: Ambient Air Temperature Sensor Connector End View (C132)

G07832581

Courtesy of FORD MOTOR CO.

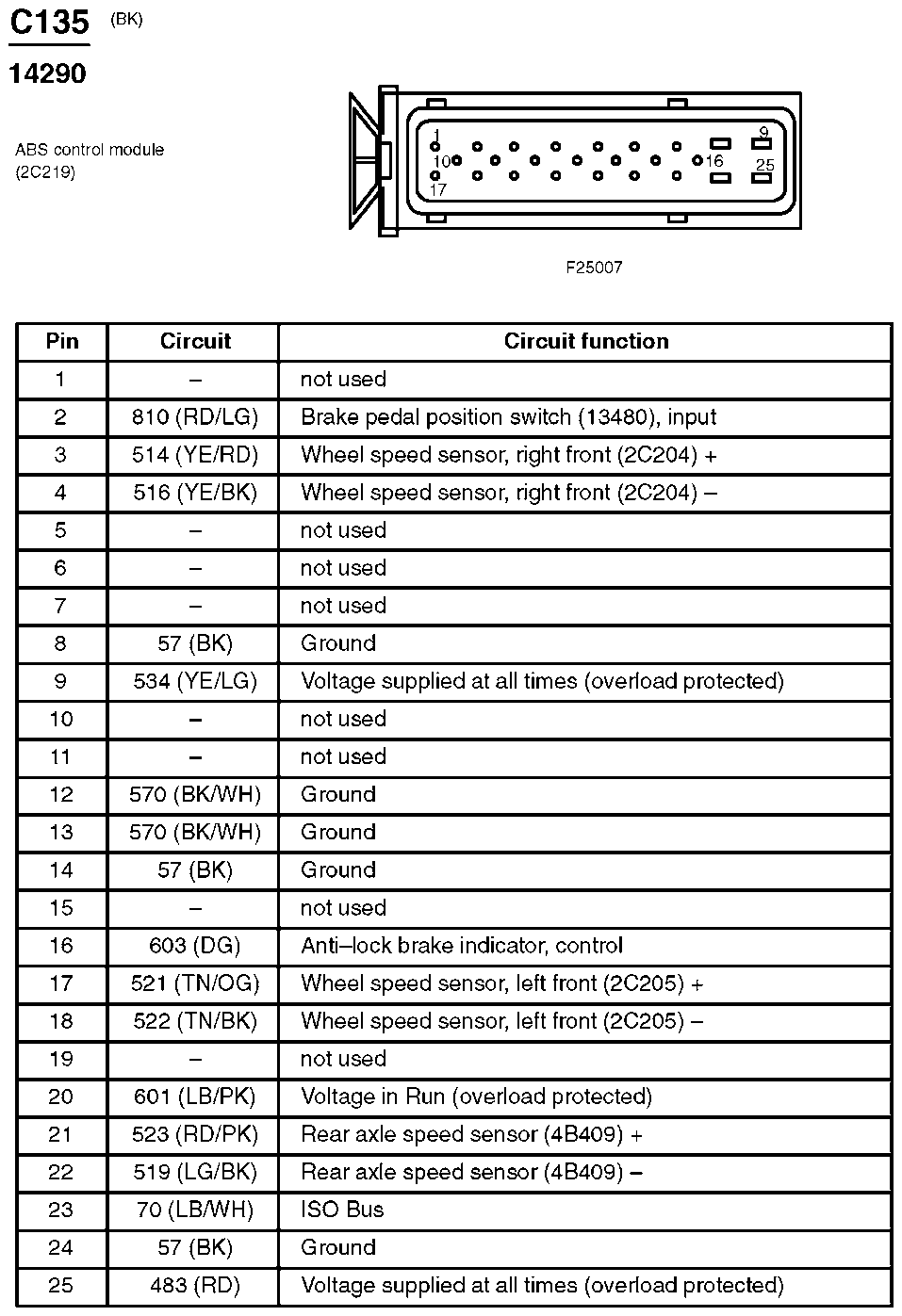

Fig 15: ABS Control Module Connector End View (C135)

G07832582

Courtesy of FORD MOTOR CO.

Fig 16: Windshield Washer Pump Motor Connector End View (C137)

G07832583

Courtesy of FORD MOTOR CO.

Fig 17: Inline Connector End View (Inline)

G07832584

Courtesy of FORD MOTOR CO.

Fig 18: Heated Oxygen Sensor (HO2S) #12 Connector End View (C142)

G07832585

Courtesy of FORD MOTOR CO.

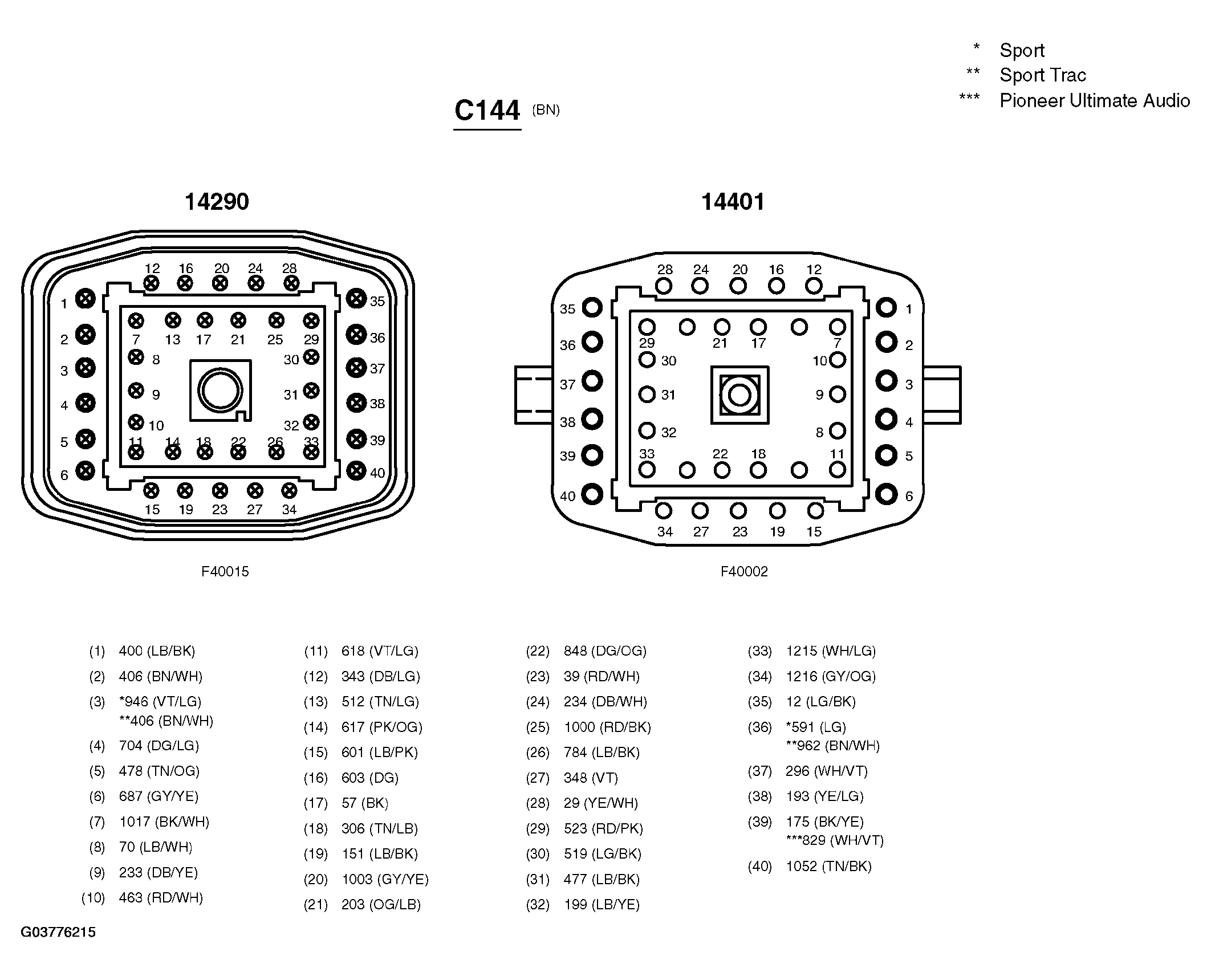

Fig 19: Inline Connector End View (C144)

G03776215

Courtesy of FORD MOTOR CO.

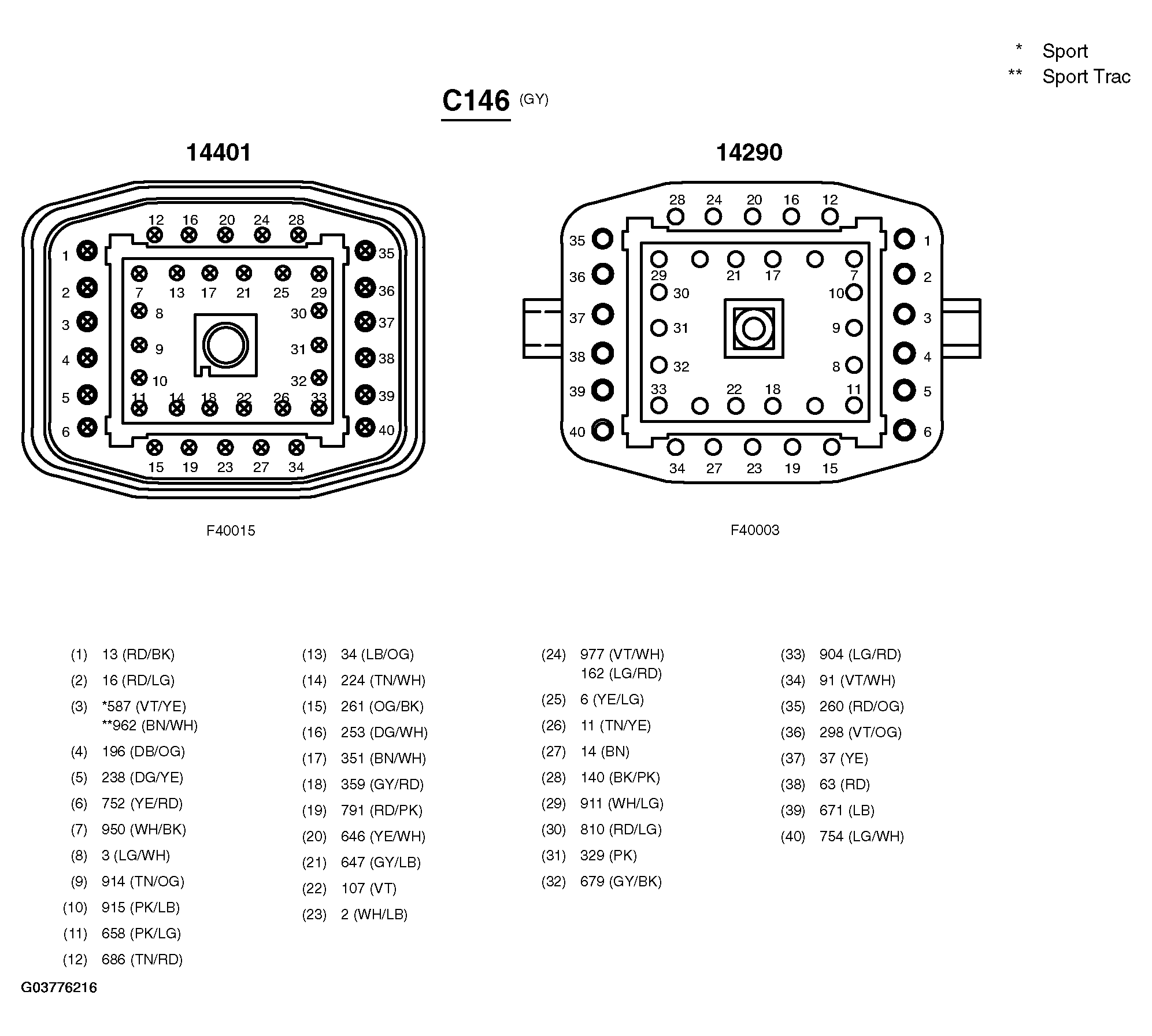

Fig 20: Inline Connector End View (C146)

G03776216

Courtesy of FORD MOTOR CO.

Fig 21: Wheel Speed Sensor, Left Front Connector End View (C150)

G07832586

Courtesy of FORD MOTOR CO.

Fig 22: Fog Lamp, Left Front Connector End View (C152)

G07832587

Courtesy of FORD MOTOR CO.

Fig 23: Wheel Speed Sensor, Right Front Connector End View (C160)

G07832588

Courtesy of FORD MOTOR CO.

Fig 24: Fog Lamp, Right Front Connector End View (C162)

G07832589

Courtesy of FORD MOTOR CO.

Fig 25: Intermediate Shaft Speed (ISS) Sensor Connector End View (C164)

G07832590

Courtesy of FORD MOTOR CO.

Fig 26: Digital Transmission Range (DTR) Sensor Connector End View (C167)

G07832591

Courtesy of FORD MOTOR CO.

Fig 27: Reversing Lamps Switch Connector End View (C169)

G07832592

Courtesy of FORD MOTOR CO.

Fig 28: Heated Oxygen Sensor (HO2S) #11 Connector End View (C171)

G07832593

Courtesy of FORD MOTOR CO.

Fig 29: Heated Oxygen Sensor (HO2S) #21 Connector End View (C172)

G07832594

Courtesy of FORD MOTOR CO.

Fig 30: Ignition Transformer Capacitor 1 Connector End View (C174)

G03776219

Courtesy of FORD MOTOR CO.

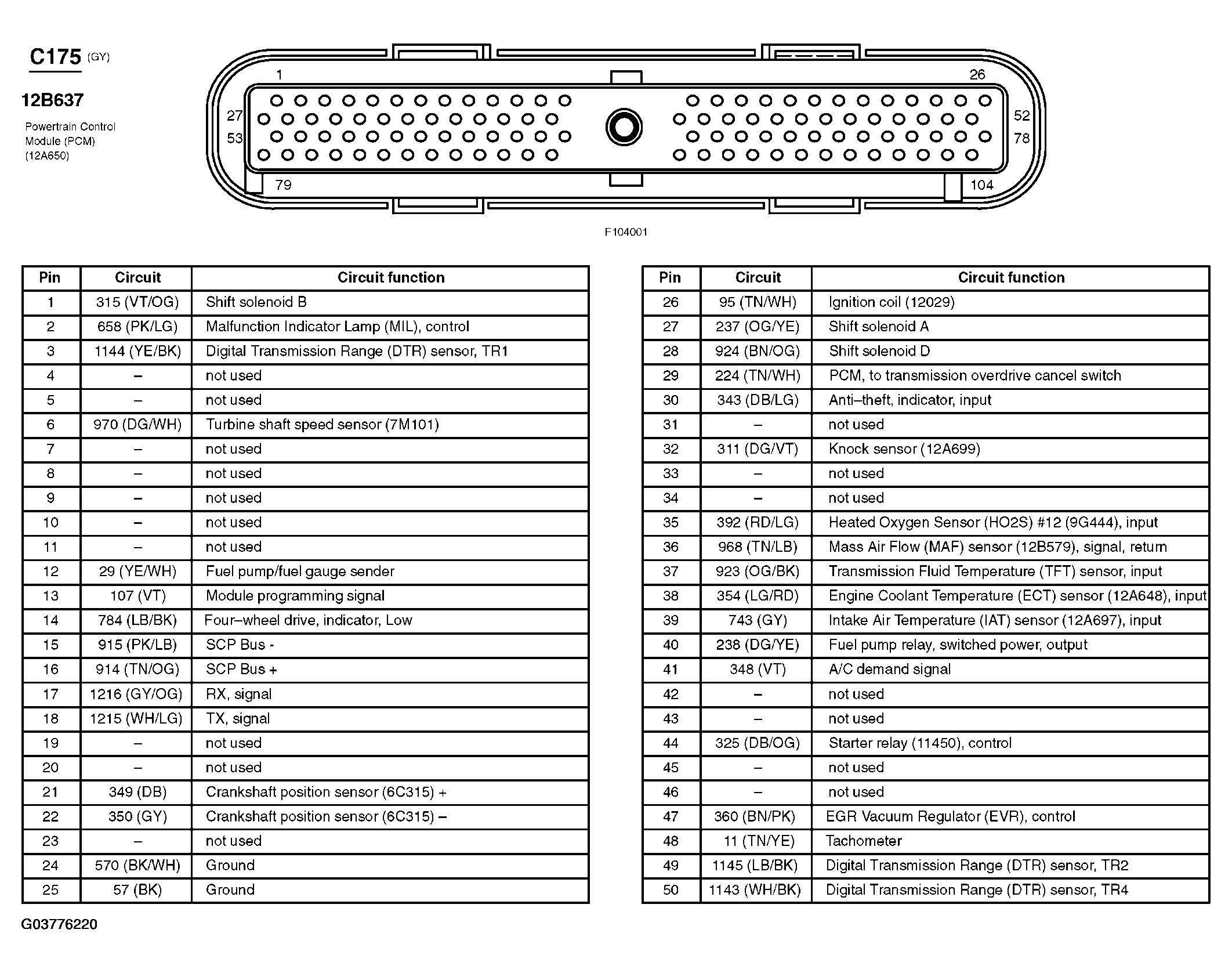

Fig 31: Powertrain Control Module (PCM) Connector End View (C175) (1 Of 2)

G03776220

Courtesy of FORD MOTOR CO.

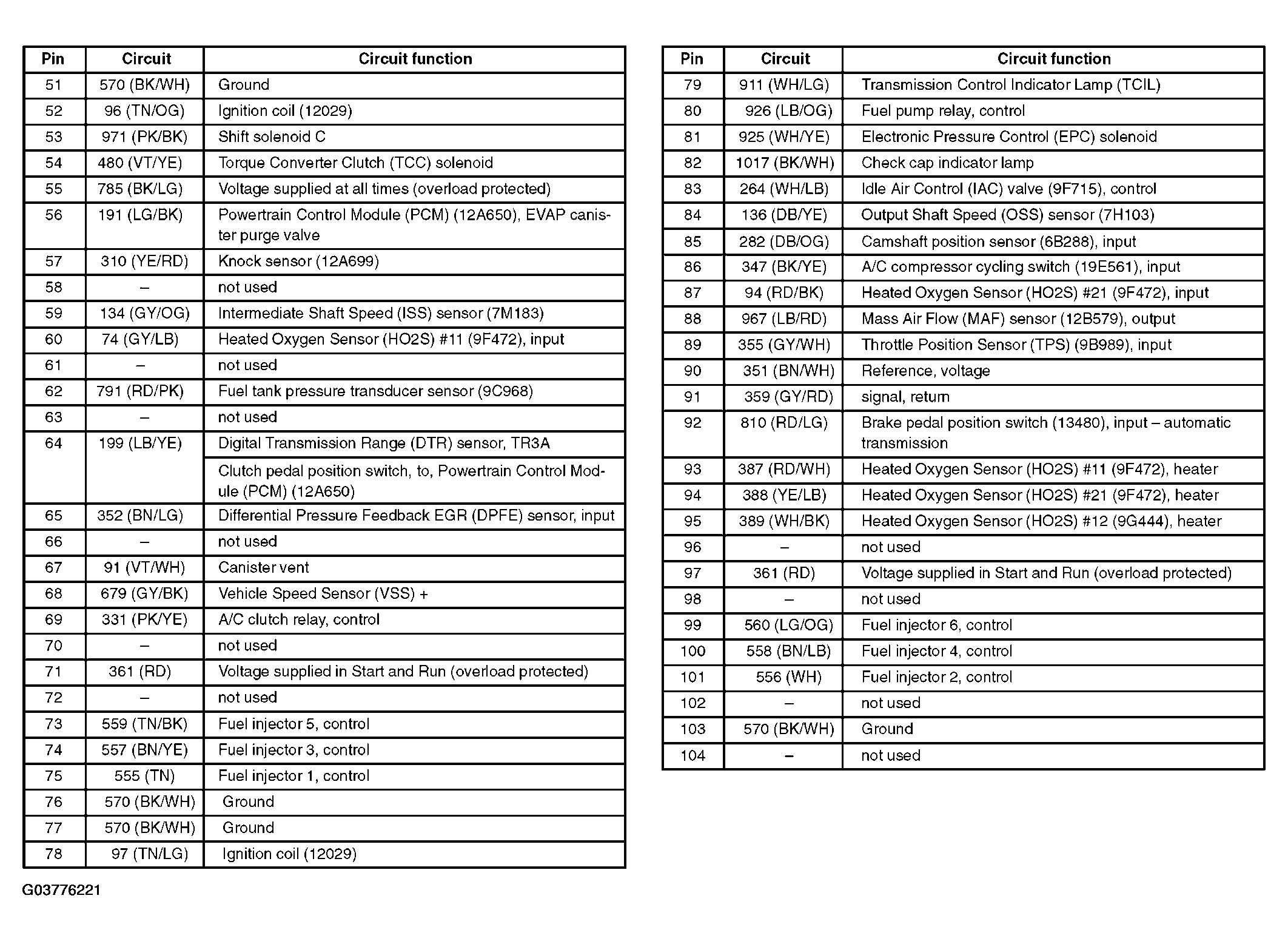

Fig 32: Powertrain Control Module (PCM) Connector End View (C175) (2 Of 2)

G03776221

Courtesy of FORD MOTOR CO.

Fig 33: Forward Crash Sensor Connector End View (C177)

G07832595

Courtesy of FORD MOTOR CO.

Fig 34: Camshaft Position Sensor Connector End View (C180)

G07832596

Courtesy of FORD MOTOR CO.

Fig 35: Fuel Injector 1 Connector End View (C181)

G07832597

Courtesy of FORD MOTOR CO.

Fig 36: Fuel Injector 2 Connector End View (C182)

G07832598

Courtesy of FORD MOTOR CO.

Fig 37: Fuel Injector 3 Connector End View (C183)

G07832599

Courtesy of FORD MOTOR CO.

Fig 38: Fuel Injector 4 Connector End View (C184)

G07832600

Courtesy of FORD MOTOR CO.

Fig 39: Fuel Injector 5 Connector End View (C185)

G07832601

Courtesy of FORD MOTOR CO.

Fig 40: Fuel Injector 6 Connector End View (C186)

G07832602

Courtesy of FORD MOTOR CO.

Fig 41: Throttle Position Sensor (TPS) Connector End View (C189)

G07832603

Courtesy of FORD MOTOR CO.

Fig 42: Output Shaft Speed (OSS) Sensor Connector End View (C193)

G07832604

Courtesy of FORD MOTOR CO.

Fig 43: Starter Motor Connector End View (C197a)

G07832605

Courtesy of FORD MOTOR CO.

Fig 44: Starter Motor Connector End View (C197b)

G07832606

Courtesy of FORD MOTOR CO.

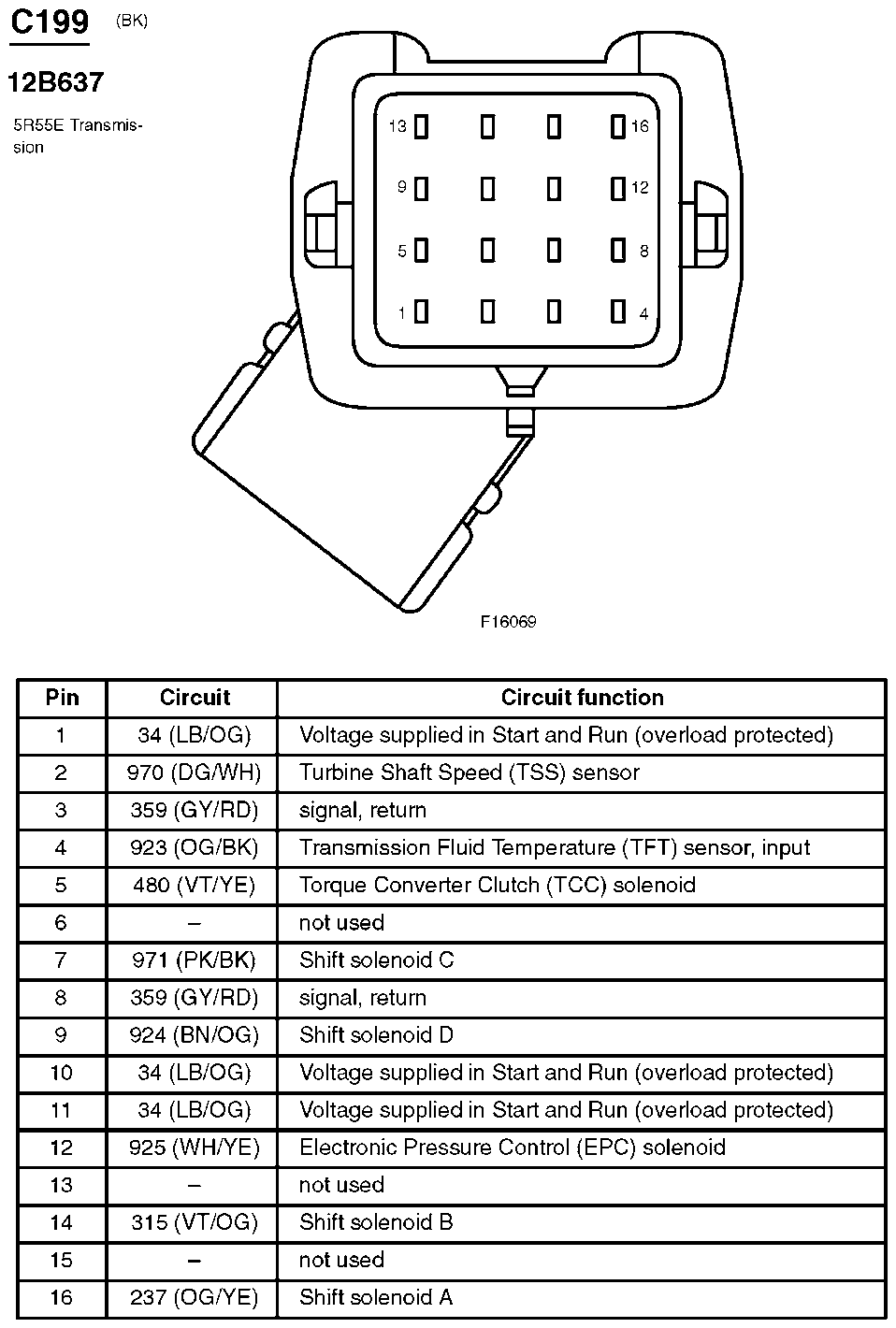

Fig 45: Transmission Connector End View (C199)

G07832607

Courtesy of FORD MOTOR CO.

Fig 46: Multifunction Switch Connector End View (C202a)

G07832608

Courtesy of FORD MOTOR CO.

Fig 47: Multifunction Switch Connector End View (C202b)

G07832609

Courtesy of FORD MOTOR CO.

Fig 48: Main Light Switch Connector End View (C205)

G07832610

Courtesy of FORD MOTOR CO.

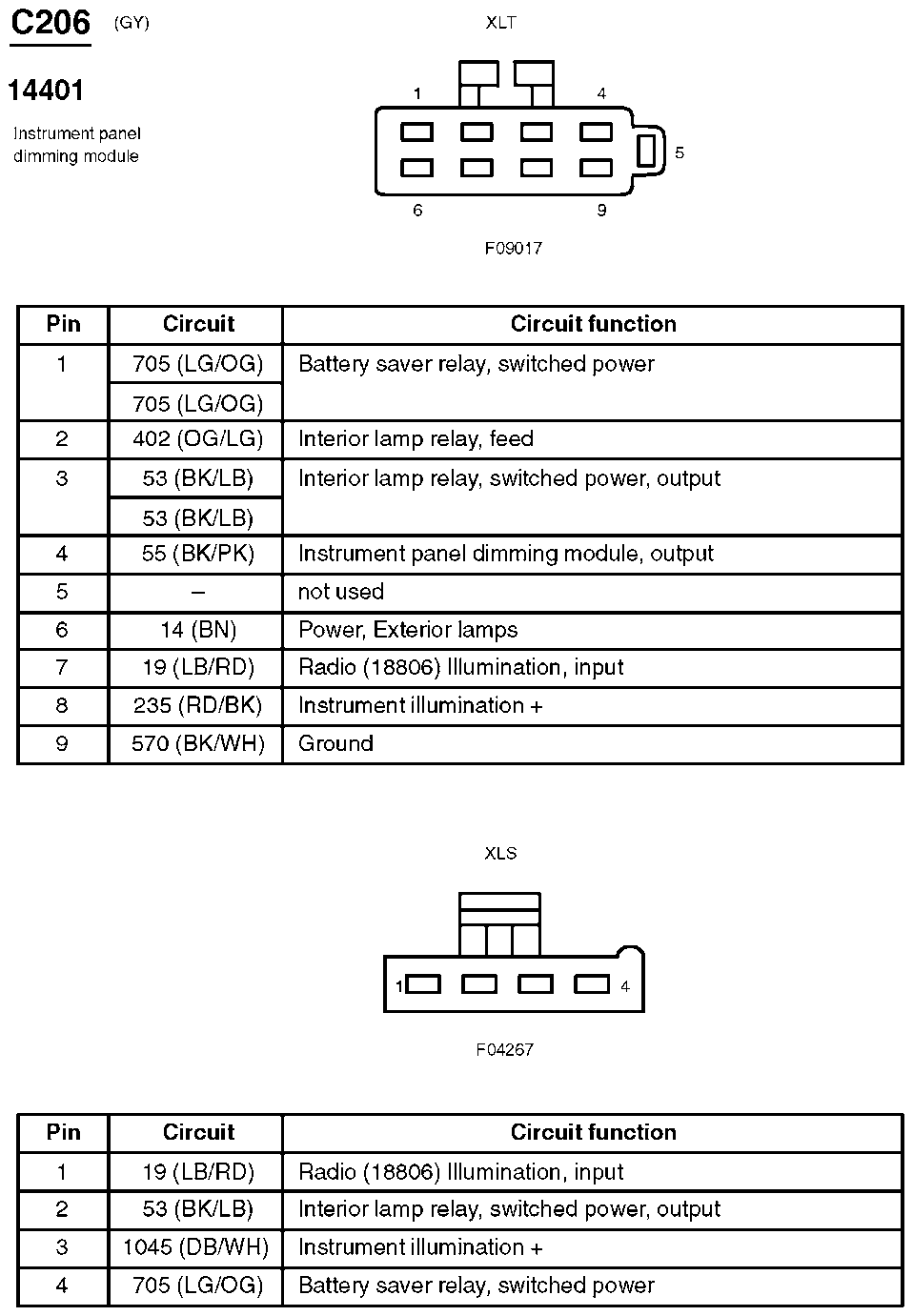

Fig 49: Instrument Panel Dimming Module Connector End View (C206)

G07832611

Courtesy of FORD MOTOR CO.

Fig 50: Inline Connector End View (C210)

G07832612

Courtesy of FORD MOTOR CO.

Fig 51: Inline Connector End View (C211)

G07832613

Courtesy of FORD MOTOR CO.

Fig 52: Inline Connector End View (C212)

G07832614

Courtesy of FORD MOTOR CO.

Fig 53: Inline Connector End View (C213)

G07832615

Courtesy of FORD MOTOR CO.

Fig 54: Inline Connector End View (C214)

G07832616

Courtesy of FORD MOTOR CO.

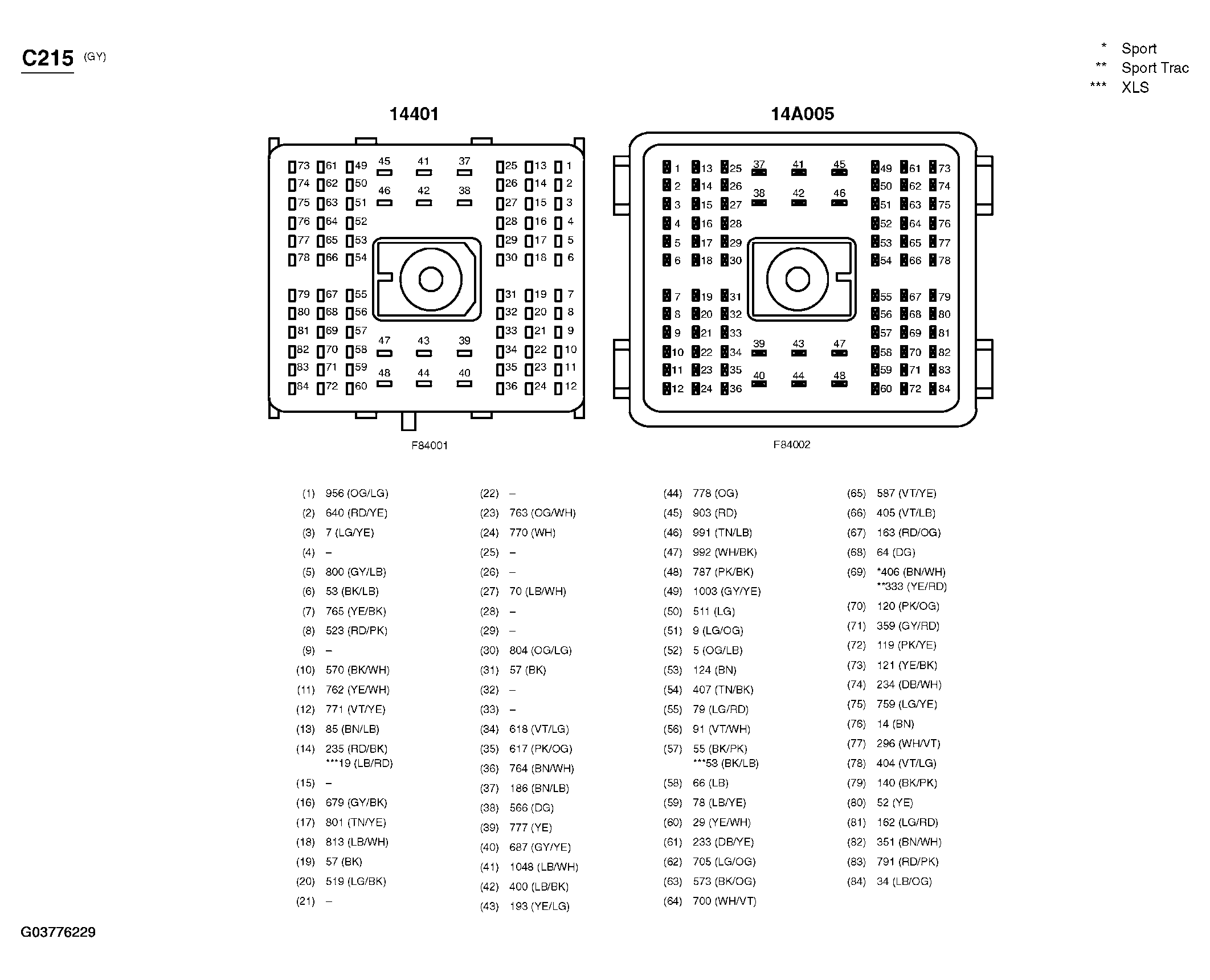

Fig 55: Inline Connector End View (C215)

G03776229

Courtesy of FORD MOTOR CO.

Fig 56: Air Bag Sliding Contact Connector End View (C218a)

G07832617

Courtesy of FORD MOTOR CO.

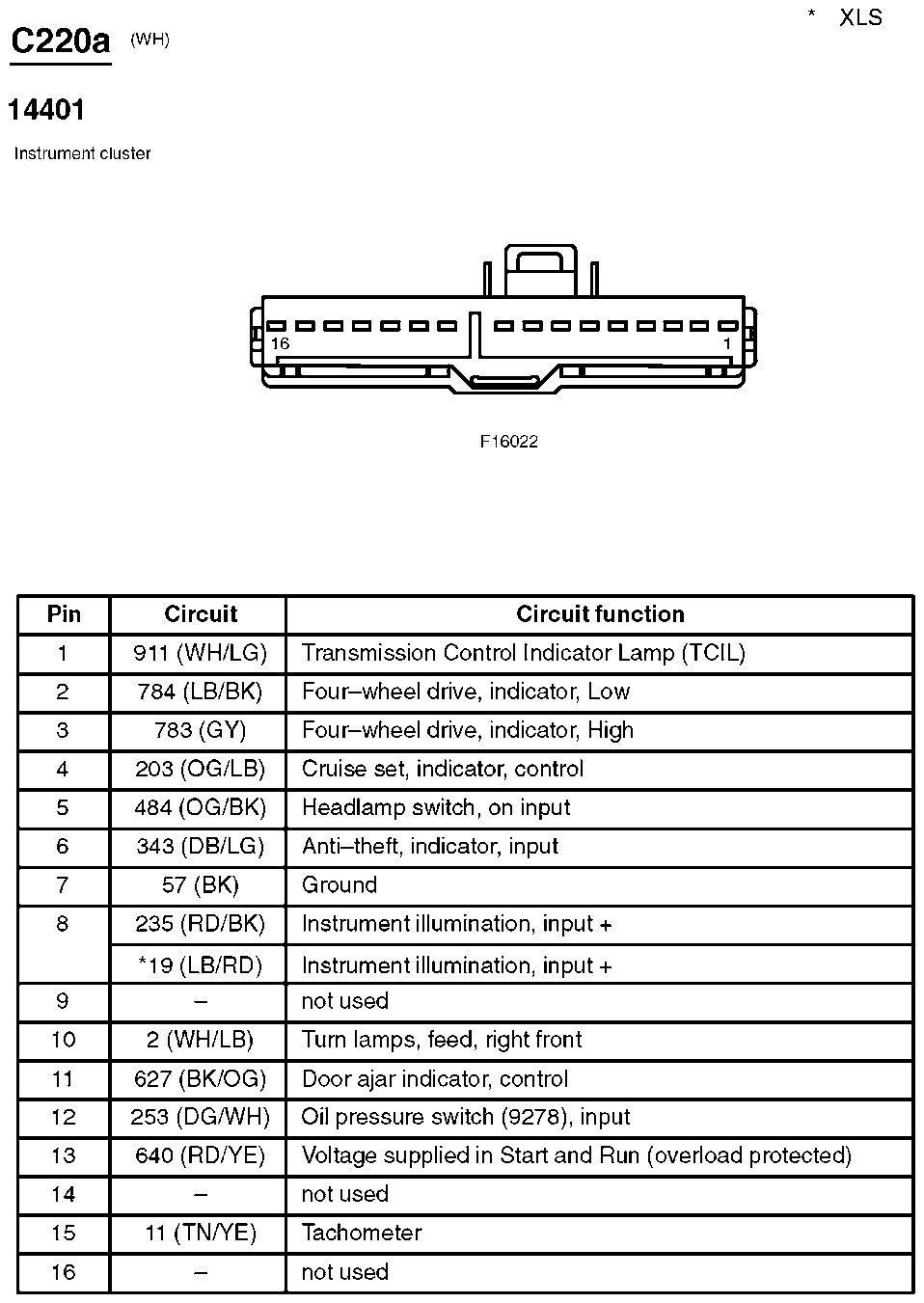

Fig 57: Instrument Cluster Connector End View (C220a)

G07832618

Courtesy of FORD MOTOR CO.

Fig 58: Instrument Cluster Connector End View (C220a)

G07832619

Courtesy of FORD MOTOR CO.

Fig 59: Instrument Cluster Connector End View (C220b)

G07832620

Courtesy of FORD MOTOR CO.

Fig 60: Instrument Cluster Connector End View (C220c)

G07832621

Courtesy of FORD MOTOR CO.

Fig 61: Inline Connector End View (C237)

G07832622

Courtesy of FORD MOTOR CO.

Fig 62: Inline Connector End View (C238)

G07832623

Courtesy of FORD MOTOR CO.

Fig 63: Fog Lamp Switch Connector End View (C240)

G07832624

Courtesy of FORD MOTOR CO.

Fig 64: Rear Window Defrost Switch Connector End View (C241)

G07832625

Courtesy of FORD MOTOR CO.

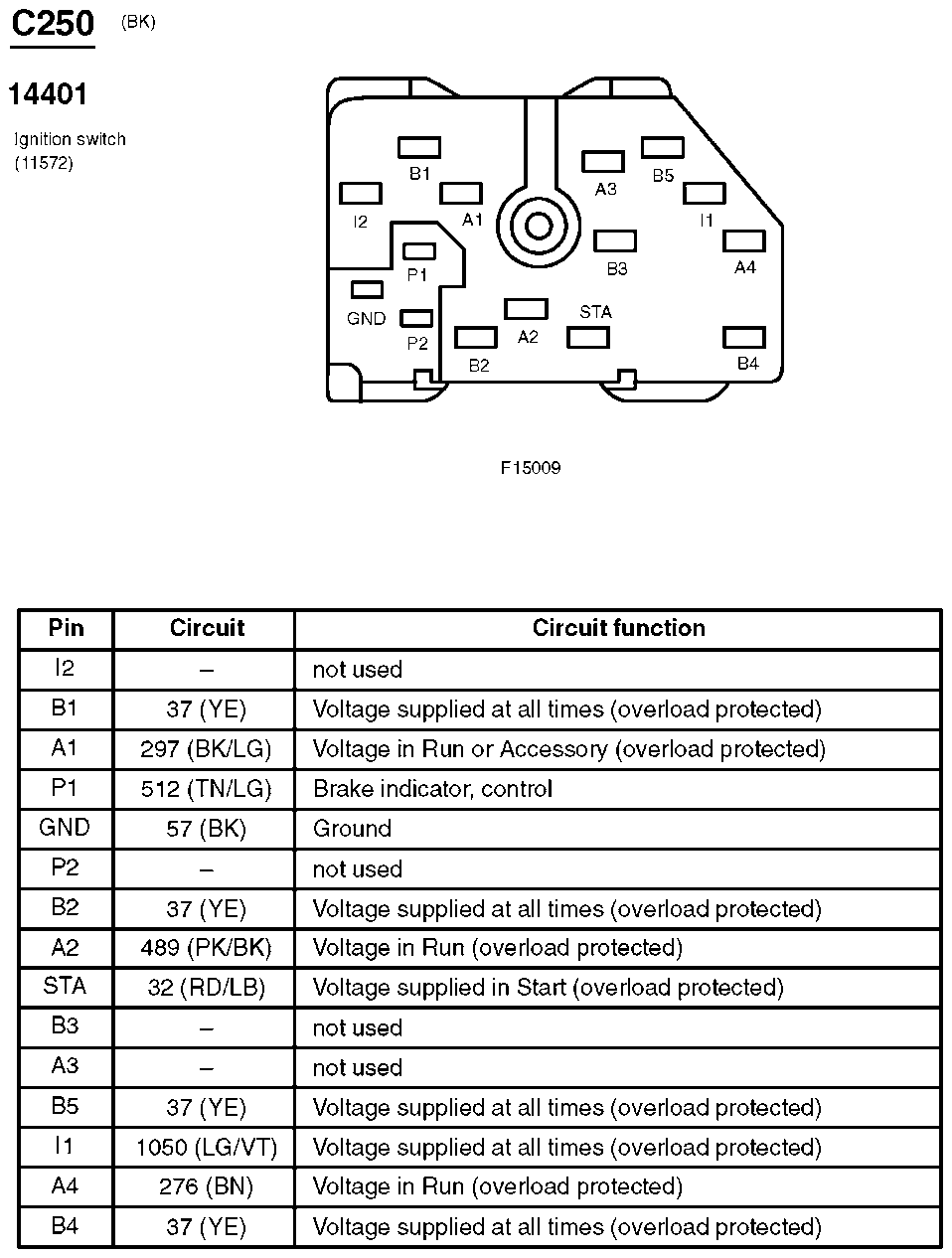

Fig 65: Ignition Switch Connector End View (C250)

G07832626

Courtesy of FORD MOTOR CO.

Fig 66: Data Link Connector (DLC), OBD II Connector End View (C251)

G07832627

Courtesy of FORD MOTOR CO.

Fig 67: Glove Box Lamp Connector End View (C254)

G07832628

Courtesy of FORD MOTOR CO.

Fig 68: Passenger Air Bag Module Connector End View (C256)

G07832629

Courtesy of FORD MOTOR CO.

Fig 69: Inline Connector End View (C263)

G07832630

Courtesy of FORD MOTOR CO.

Fig 70: Inline Connector End View (C263)

G07832631

Courtesy of FORD MOTOR CO.

Fig 71: Inline Connector End View (C264)

G07832632

Courtesy of FORD MOTOR CO.

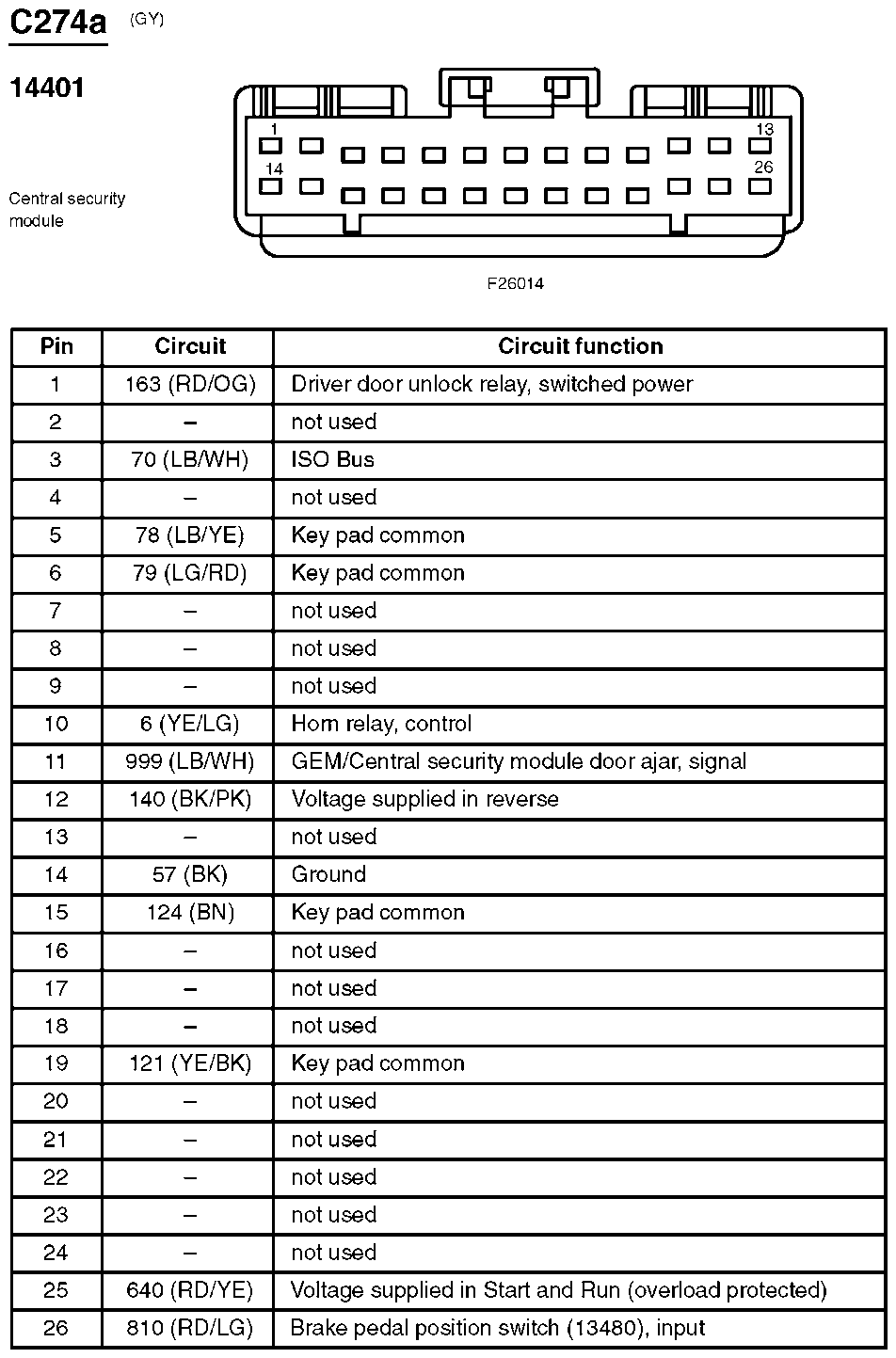

Fig 72: Central Security Module Connector End View (C274a)

G07832633

Courtesy of FORD MOTOR CO.

Fig 73: Central Security Module Connector End View (C274b)

G07832634

Courtesy of FORD MOTOR CO.

Fig 74: Transmission Control Switch Connector End View (C279)

G07832635

Courtesy of FORD MOTOR CO.

Fig 75: Transmission Control Switch Connector End View (C279)

G07832636

Courtesy of FORD MOTOR CO.

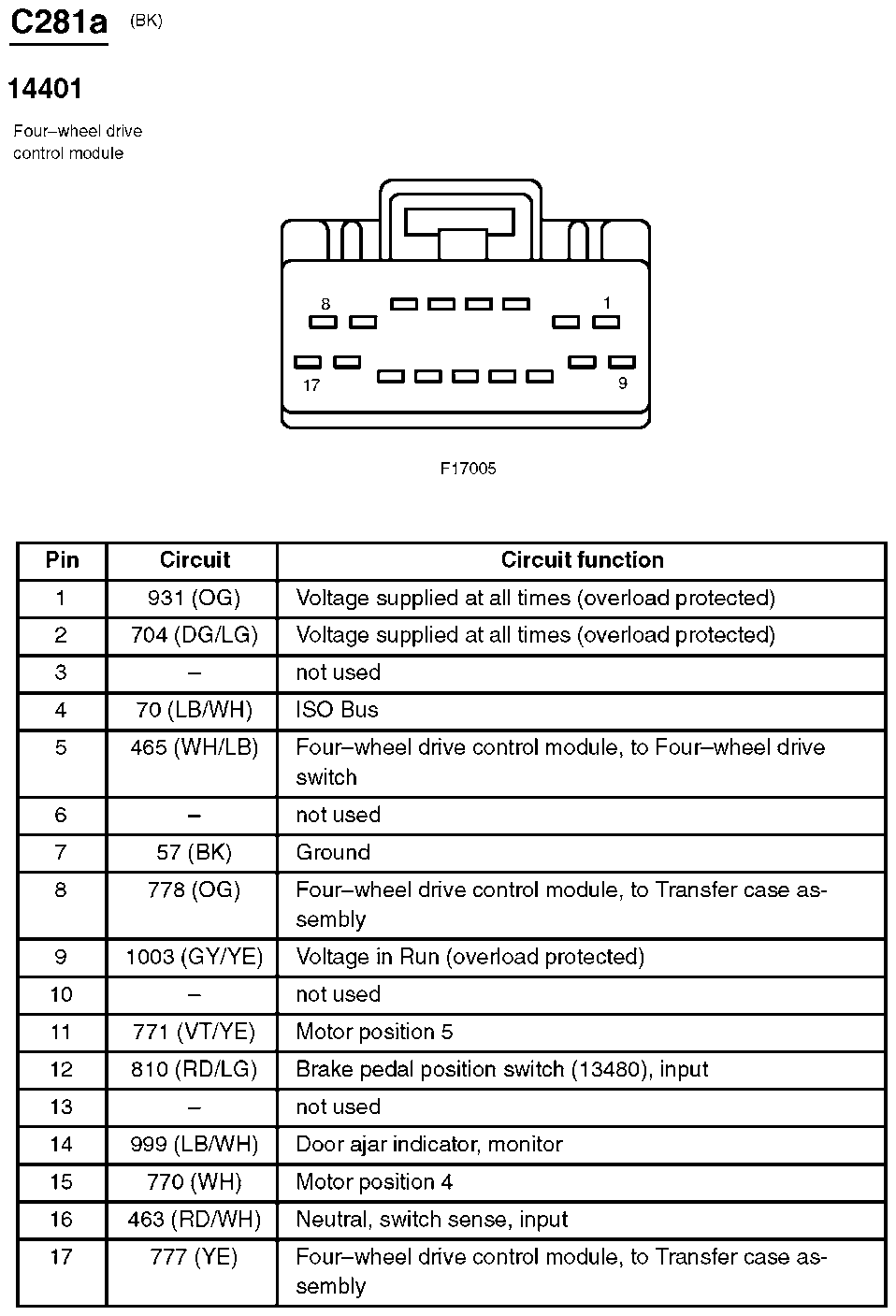

Fig 76: Four-Wheel Drive Control Module Connector End View (C281a)

G07832637

Courtesy of FORD MOTOR CO.

Fig 77: Four-Wheel Drive Control Module Connector End View (C281b)

G07832638

Courtesy of FORD MOTOR CO.

Fig 78: Inertia Fuel Shutoff (IFS) Switch Connector End View (C282)

G07832639

Courtesy of FORD MOTOR CO.

Fig 79: Temperature Blend Door Actuator Connector End View (C289)

G07832640

Courtesy of FORD MOTOR CO.

Fig 80: Temperature Blend Door Actuator Connector End View (C289)

G07832641

Courtesy of FORD MOTOR CO.

Fig 81: Radio Connector End View (C290a)

G07832642

Courtesy of FORD MOTOR CO.

Fig 82: Radio Connector End View (C290b)

G07832643

Courtesy of FORD MOTOR CO.

Fig 83: Radio Connector End View (C290c)

G07832644

Courtesy of FORD MOTOR CO.

Fig 84: Function Selector Switch Assembly, Front Connector End View (C294a)

G07832645

Courtesy of FORD MOTOR CO.

Fig 85: Function Selector Switch Assembly, Front Connector End View (C294b)

G07832646

Courtesy of FORD MOTOR CO.

Fig 86: Function Selector Switch Assembly, Front Connector End View (C294c)

G07832647

Courtesy of FORD MOTOR CO.

Fig 87: Function Selector Switch Assembly, Front Connector End View (C294d)

G07832648

Courtesy of FORD MOTOR CO.

Fig 88: Inline Connector End View (C311)

G07832649

Courtesy of FORD MOTOR CO.

Fig 89: Passenger Safety Belt Retractor Pretensioner Connector End View (C303)

G07832650

Courtesy of FORD MOTOR CO.

Fig 90: Inline Connector End View (C315)

G07832651

Courtesy of FORD MOTOR CO.

Fig 91: Inline Connector End View (C316)

G07832652

Courtesy of FORD MOTOR CO.

Fig 92: Seat Heater Switch, Driver Side Connector End View (C320)

G07832653

Courtesy of FORD MOTOR CO.

Fig 93: Driver Safety Belt Retractor Pretensioner Connector End View (C323)

G07832654

Courtesy of FORD MOTOR CO.

Fig 94: Seat Heater Switch, Passenger Side Connector End View (C321)

G07832655

Courtesy of FORD MOTOR CO.

Fig 95: Inline Connector End View (C327)

G07832656

Courtesy of FORD MOTOR CO.

Fig 96: Inline Connector End View (C328)

G07832657

Courtesy of FORD MOTOR CO.

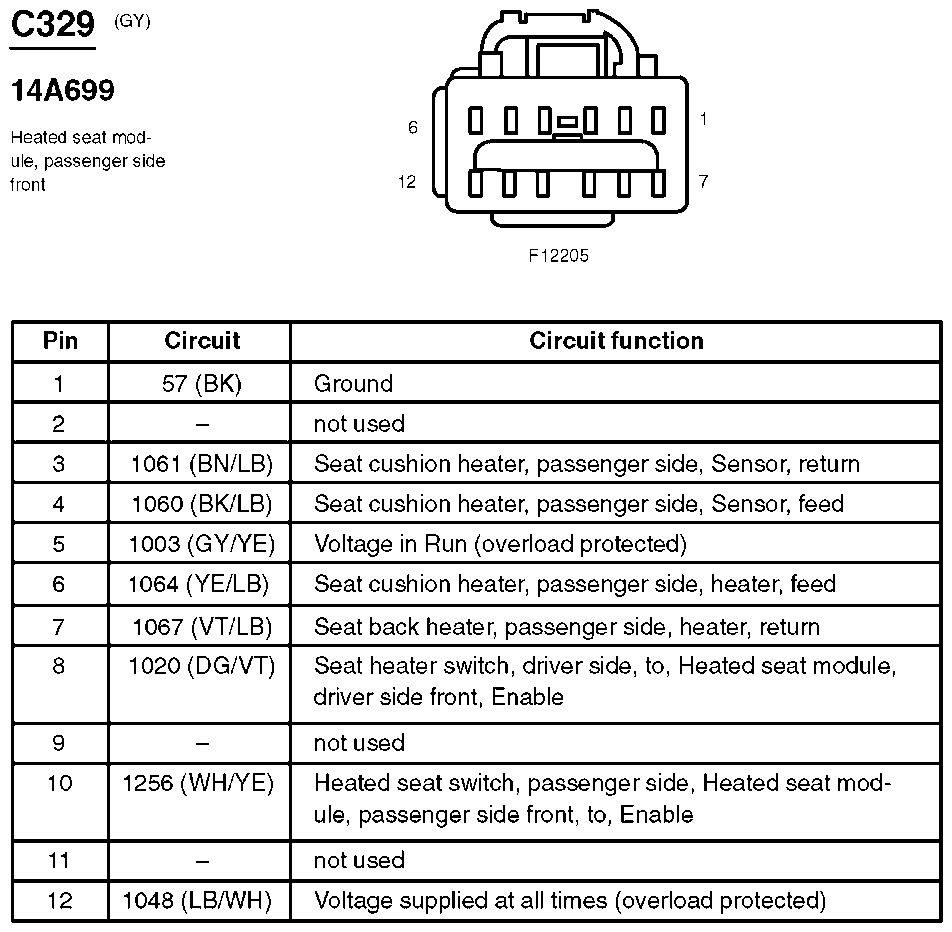

Fig 97: Heated Seat Module, Passenger Side Front Connector End View (C329)

G07832658

Courtesy of FORD MOTOR CO.

Fig 98: Seat Adjust Switch, Passenger Side Front Connector End View (C330)

G07832659

Courtesy of FORD MOTOR CO.

Fig 99: Lumbar Adjust Switch, Right Front Connector End View (C331)

G07832660

Courtesy of FORD MOTOR CO.

Fig 100: Seat Cushion Heater, Passenger Side Connector End View (C334)

G07832661

Courtesy of FORD MOTOR CO.

Fig 101: Seat Back Heater, Passenger Side Connector End View (C335)

G07832662

Courtesy of FORD MOTOR CO.

Fig 102: Passenger Seat Lumbar Compressor Motor Connector End View (C336)

G07832663

Courtesy of FORD MOTOR CO.

Fig 103: Inline Connector End View (C339)

G07832664

Courtesy of FORD MOTOR CO.

Fig 104: Side Air Bag Module, Right Connector End View (C337)

G07832665

Courtesy of FORD MOTOR CO.

Fig 105: Inline Connector End View (C340)

G07832666

Courtesy of FORD MOTOR CO.

Fig 106: Rear Integrated Control Panel (RICP) Connector End View (C349)

G07832667

Courtesy of FORD MOTOR CO.

Fig 107: Transfer Case Assembly Connector End View (C350)

G07832668

Courtesy of FORD MOTOR CO.

Fig 108: Rear Window Motor Connector End View (C351)

G07832669

Courtesy of FORD MOTOR CO.

Fig 109: Power Seat Motor Assembly, Left Connector End View (C357)

G07832670

Courtesy of FORD MOTOR CO.

Fig 110: Heated Seat Module, Driver Side Front Connector End View (C359)

G07832671

Courtesy of FORD MOTOR CO.

Fig 111: Lumbar Adjust Switch, Left Front Connector End View (C361)

G07832672

Courtesy of FORD MOTOR CO.

Fig 112: Seat Cushion Heater, Driver Side Connector End View (C364)

G07832673

Courtesy of FORD MOTOR CO.

Fig 113: Seat Back Heater, Driver Side Connector End View (C365)

G07832674

Courtesy of FORD MOTOR CO.

Fig 114: Driver Seat Lumbar Compressor Motor Connector End View (C366)

G07832675

Courtesy of FORD MOTOR CO.

Fig 115: Side Air Bag Module, Left Connector End View (C367)

G07832676

Courtesy of FORD MOTOR CO.

Fig 116: Seat Adjust Switch, Driver Side Front Connector End View (C369)

G07832677

Courtesy of FORD MOTOR CO.

Fig 117: Power Point, Console Connector End View (C380)

G07832678

Courtesy of FORD MOTOR CO.

Fig 118: Speaker, Left Rear Connector End View (C395)

G07832679

Courtesy of FORD MOTOR CO.

Fig 119: Speaker, Right Rear Connector End View (C396)

G07832680

Courtesy of FORD MOTOR CO.

Fig 120: Rear Window Defrost Grid Connector End View (C402b)

G07832681

Courtesy of FORD MOTOR CO.

Fig 121: Rear Window Defrost Grid Connector End View (C402a)

G07832682

Courtesy of FORD MOTOR CO.

Fig 122: Inline Connector End View (C406)

G07832683

Courtesy of FORD MOTOR CO.

Fig 123: Inline Connector End View (C408)

G07832684

Courtesy of FORD MOTOR CO.

Fig 124: Inline Connector End View (C410)

G07832685

Courtesy of FORD MOTOR CO.

Fig 125: Inline Connector End View (C411)

G07832686

Courtesy of FORD MOTOR CO.

Fig 126: Inline Connector End View (C421)

G07832687

Courtesy of FORD MOTOR CO.

Fig 127: Inline Connector End View (C422)

G07832688

Courtesy of FORD MOTOR CO.

Fig 128: Fuel Tank Pressure Transducer Sensor Connector End View (C435)

G07832689

Courtesy of FORD MOTOR CO.

Fig 129: Trailer Tow Connector End View (C439)

G07832690

Courtesy of FORD MOTOR CO.

Fig 130: Evaporative Emission (EVAP) Canister Vent Valve Connector End View (C450)

G07832691

Courtesy of FORD MOTOR CO.

Fig 131: Reversing Lamp, Left Connector End View (C451)

G07832692

Courtesy of FORD MOTOR CO.

Fig 132: License Plate Lamp, Left Connector End View (C452)

G07832693

Courtesy of FORD MOTOR CO.

Fig 133: License Plate Lamp, Left Connector End View (C454)

G07832694

Courtesy of FORD MOTOR CO.

Fig 134: Rear Axle Speed Sensor Connector End View (C455)

G07832695

Courtesy of FORD MOTOR CO.

Fig 135: Liftgate Door Lock Switch Connector End View (C456)

G07832696

Courtesy of FORD MOTOR CO.

Fig 136: Liftgate Lock Actuator Connector End View (C457)

G07832697

Courtesy of FORD MOTOR CO.

Fig 137: Liftgate Ajar Switch, Left Connector End View (C458)

G07832698

Courtesy of FORD MOTOR CO.

Fig 138: Liftgate Ajar Switch, Right Connector End View (C459)

G07832699

Courtesy of FORD MOTOR CO.

Fig 139: Reversing Lamp, Right Connector End View (C461)

G07832700

Courtesy of FORD MOTOR CO.

Fig 140: License Plate Lamp, Right Connector End View (C462)

G07832701

Courtesy of FORD MOTOR CO.

Fig 141: License Plate Lamp, Right Connector End View (C464)

G07832702

Courtesy of FORD MOTOR CO.

Fig 142: Subwoofer Amplifier Connector End View (C466a)

G07832703

Courtesy of FORD MOTOR CO.

Fig 143: Subwoofer Amplifier Connector End View (C466b)

G07832704

Courtesy of FORD MOTOR CO.

Fig 144: Rear Window Wiper Disable Switch Connector End View (C467)

G07832705

Courtesy of FORD MOTOR CO.

Fig 145: Master Window Adjust Switch Connector End View (C504a)

G07832706

Courtesy of FORD MOTOR CO.

Fig 146: Power Point, Rear Connector End View (C474)

G07832707

Courtesy of FORD MOTOR CO.

Fig 147: Master Window Adjust Switch Connector End View (C504b)

G07832708

Courtesy of FORD MOTOR CO.

Fig 148: Door Lock Switch, Driver Side Connector End View (C505)

G07832709

Courtesy of FORD MOTOR CO.

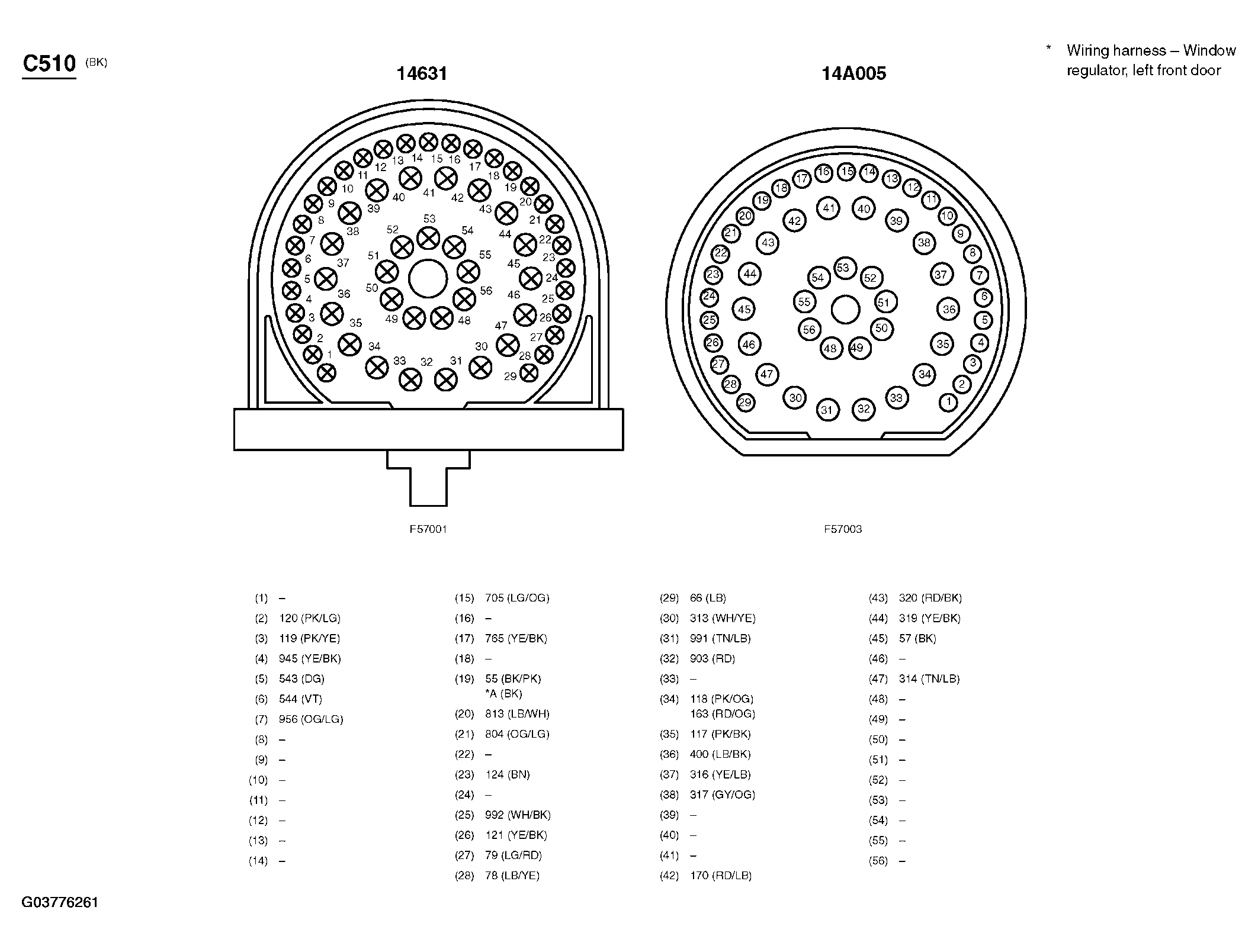

Fig 149: Inline Connector End View (C510)

G03776261

Courtesy of FORD MOTOR CO.

Fig 150: Exterior Rear View Mirror, Driver Side Connector End View (C520)

G07832710

Courtesy of FORD MOTOR CO.

Fig 151: Exterior Rear View Mirror, Driver Side Connector End View (C521)

G07832711

Courtesy of FORD MOTOR CO.

Fig 152: Speaker, Left Front Connector End View (C523)

G07832712

Courtesy of FORD MOTOR CO.

Fig 153: Power Window Motor, Driver Side Front Connector End View (C524)

G07832713

Courtesy of FORD MOTOR CO.

Fig 154: Door Lock Actuator, Driver Side Connector End View (C525)

G07832714

Courtesy of FORD MOTOR CO.

Fig 155: Door Ajar Switch, Driver Side Front Connector End View (C526a)

G07832715

Courtesy of FORD MOTOR CO.

Fig 156: Door Ajar Switch, Driver Side Front Connector End View (C526b)

G07832716

Courtesy of FORD MOTOR CO.

Fig 157: Exterior Rear View Mirror Switch Connector End View (C527)

G07832717

Courtesy of FORD MOTOR CO.

Fig 158: Key Pad Switch Assembly Connector End View (C530)

G07832718

Courtesy of FORD MOTOR CO.

Fig 159: Exterior Rear View Mirror, Passenger Side Connector End View (C601)

G07832719

Courtesy of FORD MOTOR CO.

Fig 160: Door Ajar Switch, Passenger Side Front Connector End View (C602a)

G07832720

Courtesy of FORD MOTOR CO.

Fig 161: Door Ajar Switch, Passenger Side Front Connector End View (C602b)

G07832721

Courtesy of FORD MOTOR CO.

Fig 162: Door Lock Actuator, Passenger Side Connector End View (C603)

G07832722

Courtesy of FORD MOTOR CO.

Fig 163: Window Adjust Switch, Passenger Side Connector End View (C604)

G07832723

Courtesy of FORD MOTOR CO.

Fig 164: Door Lock Switch, Passenger Side Connector End View (C605)

G07832724

Courtesy of FORD MOTOR CO.

Fig 165: Power Window Motor, Passenger Side Front Connector End View (C608)

G07832725

Courtesy of FORD MOTOR CO.

Fig 166: Speaker, Right Front Connector End View (C612)

G07832726

Courtesy of FORD MOTOR CO.

Fig 167: Exterior Rear View Mirror, Passenger Side Connector End View (C615)

G07832727

Courtesy of FORD MOTOR CO.

Fig 168: Window Adjust Switch, Left Rear Connector End View (C701)

G07832728

Courtesy of FORD MOTOR CO.

Fig 169: Speaker, Left Rear Connector End View (C702)

G07832729

Courtesy of FORD MOTOR CO.

Fig 170: Power Window Motor, Left Rear Connector End View (C703)

G07832730

Courtesy of FORD MOTOR CO.

Fig 171: Door Lock Actuator, Left Rear Connector End View (C704)

G07832731

Courtesy of FORD MOTOR CO.

Fig 172: Door Ajar Switch, Driver Side Rear Connector End View (C715a)

G07832732

Courtesy of FORD MOTOR CO.

Fig 173: Door Ajar Switch, Driver Side Rear Connector End View (C715b)

G07832733

Courtesy of FORD MOTOR CO.

Fig 174: Window Adjust Switch, Right Rear Connector End View (C801)

G07832734

Courtesy of FORD MOTOR CO.

Fig 175: Speaker, Right Rear Connector End View (C802)

G07832735

Courtesy of FORD MOTOR CO.

Fig 176: Power Window Motor, Right Rear Connector End View (C803)

G07832736

Courtesy of FORD MOTOR CO.

Fig 177: Door Lock Actuator, Right Rear Connector End View (C804)

G07832737

Courtesy of FORD MOTOR CO.

Fig 178: Door Ajar Switch, Passenger Side Rear Connector End View (C820a)

G07832738

Courtesy of FORD MOTOR CO.

Fig 179: High Mounted Stoplamp Connector End View (C904)

G07832739

Courtesy of FORD MOTOR CO.

Fig 180: Door Ajar Switch, Passenger Side Rear Connector End View (C820b)

G07832740

Courtesy of FORD MOTOR CO.

Fig 181: Roof Opening Panel Switch Connector End View (C912)

G07832741

Courtesy of FORD MOTOR CO.

Fig 182: Inline Connector End View (C919)

G07832742

Courtesy of FORD MOTOR CO.

Fig 183: Roof Opening Panel Module Connector End View (C921)

G07832743

Courtesy of FORD MOTOR CO.

Fig 184: Inline Connector End View (C922)

G07832744

Courtesy of FORD MOTOR CO.

Fig 185: Cargo Lamp Assembly Connector End View (C927)

G07832745

Courtesy of FORD MOTOR CO.

Fig 186: Overhead Console Connector End View (C930)

G07832746

Courtesy of FORD MOTOR CO.

Fig 187: Interior/Map Lamps Assembly, Front Connector End View (C931a)

G07832747

Courtesy of FORD MOTOR CO.

Fig 188: Interior/Map Lamps Assembly, Rear Connector End View (C932a)

G07832748

Courtesy of FORD MOTOR CO.

Fig 189: Interior/Map Lamps Assembly, Front Connector End View (C931b)

G07832749

Courtesy of FORD MOTOR CO.

Fig 190: Interior/Map Lamps Assembly, Rear Connector End View (C932b)

G07832750

Courtesy of FORD MOTOR CO.

Fig 191: Inline Connector End View (C934)

G07832751

Courtesy of FORD MOTOR CO.

Fig 192: Inline Connector End View (C935)

G07832752

Courtesy of FORD MOTOR CO.

Fig 193: Wiper High/Low Relay Connector End View (C1001)

G07832753

Courtesy of FORD MOTOR CO.

Fig 194: Autolamp Sensor Connector End View (C995)

G07832754

Courtesy of FORD MOTOR CO.

Fig 195: Wiper Run/Park Relay Connector End View (C1002)

G07832755

Courtesy of FORD MOTOR CO.

Fig 196: Windshield Washer Relay Connector End View (C1004)

G07832756

Courtesy of FORD MOTOR CO.

Fig 197: Horn Relay Connector End View (C1006)

G07832757

Courtesy of FORD MOTOR CO.

Fig 198: Fog Lamp Relay Connector End View (C1007)

G07832758

Courtesy of FORD MOTOR CO.

Fig 199: A/C Clutch Relay Connector End View (C1008)

G07832759

Courtesy of FORD MOTOR CO.

Fig 200: Blower Motor Relay Connector End View (C1011)

G07832760

Courtesy of FORD MOTOR CO.

Fig 201: PCM Power Relay Connector End View (C1016)

G07832761

Courtesy of FORD MOTOR CO.

Fig 202: Starter Relay Connector End View (C1017)

G07832762

Courtesy of FORD MOTOR CO.

Fig 203: PCM Power Diode Connector End View (C1018)

G07832763

Courtesy of FORD MOTOR CO.

Fig 204: Headlamp, Left Connector End View (C1021)

G07832764

Courtesy of FORD MOTOR CO.

Fig 205: Park/Turn Lamp, Left Front Connector End View (C1023)

G07832765

Courtesy of FORD MOTOR CO.

Fig 206: Brake Pressure Switch Connector End View (C1025)

G07832766

Courtesy of FORD MOTOR CO.

Fig 207: EVAP Canister Purge Valve Connector End View (C1029)

G07832767

Courtesy of FORD MOTOR CO.

Fig 208: Daytime Running Lamps (DRL) Module Connector End View (C1030)

G07832768

Courtesy of FORD MOTOR CO.

Fig 209: Heater Blower Motor Connector End View (C1031)

G07832769

Courtesy of FORD MOTOR CO.

Fig 210: Heater Blower Motor Resistor, Front Connector End View (C1032)

G07832770

Courtesy of FORD MOTOR CO.

Fig 211: Battery Junction Box (BJB) Connector End View (C1035)

G07832771

Courtesy of FORD MOTOR CO.

Fig 212: Fog Lamp Isolation Relay Connector End View (C1038)

G07832772

Courtesy of FORD MOTOR CO.

Fig 213: Washer Pump Relay, Rear Connector End View (C1039)

G07832773

Courtesy of FORD MOTOR CO.

Fig 214: Headlamp, Right Connector End View (C1041)

G07832774

Courtesy of FORD MOTOR CO.

Fig 215: Park/Turn Lamp, Right Front Connector End View (C1043)

G07832775

Courtesy of FORD MOTOR CO.

Fig 216: Fuel Pump Relay Connector End View (C1051)

G07832776

Courtesy of FORD MOTOR CO.

Fig 217: High Speed Fan Control Relay Connector End View (C1056)

G07832777

Courtesy of FORD MOTOR CO.

Fig 218: Rear Wiper Relay Connector End View (C1059)

G07832778

Courtesy of FORD MOTOR CO.

Fig 219: Engine Coolant Temperature (ECT) Sender Connector End View (C1061)

G07832779

Courtesy of FORD MOTOR CO.

Fig 220: Engine Coolant Temperature (ECT) Sensor Connector End View (C1064)

G07832780

Courtesy of FORD MOTOR CO.

Fig 221: Ignition Coil Connector End View (C1065)

G07832781

Courtesy of FORD MOTOR CO.

Fig 222: Idle Air Control (IAC) Valve Connector End View (C1066)

G07832782

Courtesy of FORD MOTOR CO.

Fig 223: Differential Pressure Feedback EGR (DPFE) Sensor Connector End View (C1068)

G07832783

Courtesy of FORD MOTOR CO.

Fig 224: A/C High Pressure Switch Connector End View (C1078)

G07832784

Courtesy of FORD MOTOR CO.

Fig 225: A/C High Pressure Switch Connector End View (C1078)

G07832785

Courtesy of FORD MOTOR CO.

Fig 226: A/C Compressor Cycling Switch Connector End View (C1081)

G07832786

Courtesy of FORD MOTOR CO.

Fig 227: Window Safety Relay Connector End View (C1096)

G07832787

Courtesy of FORD MOTOR CO.

Fig 228: Battery Connector End View (C1100a)

G07832788

Courtesy of FORD MOTOR CO.

Fig 229: Battery Connector End View (C1100b)

G07832789

Courtesy of FORD MOTOR CO.

Fig 230: Output Shaft Speed (OSS) Sensor Connector End View (C1107)

G07832790

Courtesy of FORD MOTOR CO.

Fig 231: Rear Window Wiper/Washer Switch Connector End View (C2000)

G07832791

Courtesy of FORD MOTOR CO.

Fig 232: Brake Shift Interlock Connector End View (C2008)

G07832792

Courtesy of FORD MOTOR CO.

Fig 233: Ashtray Illumination Lamp Connector End View (C2014)

G07832793

Courtesy of FORD MOTOR CO.

Fig 234: Parking Brake Switch Connector End View (C2015)

G07832794

Courtesy of FORD MOTOR CO.

Fig 235: Rear Window Defrost Relay Connector End View (C2021)

G07832795

Courtesy of FORD MOTOR CO.

Fig 236: Interior Lamps Relay Connector End View (C2022)

G07832796

Courtesy of FORD MOTOR CO.

Fig 237: Cigar Lighter, Front Connector End View (C2031a)

G07832797

Courtesy of FORD MOTOR CO.

Fig 238: Cigar Lighter, Front Connector End View (C2031b)

G07832798

Courtesy of FORD MOTOR CO.

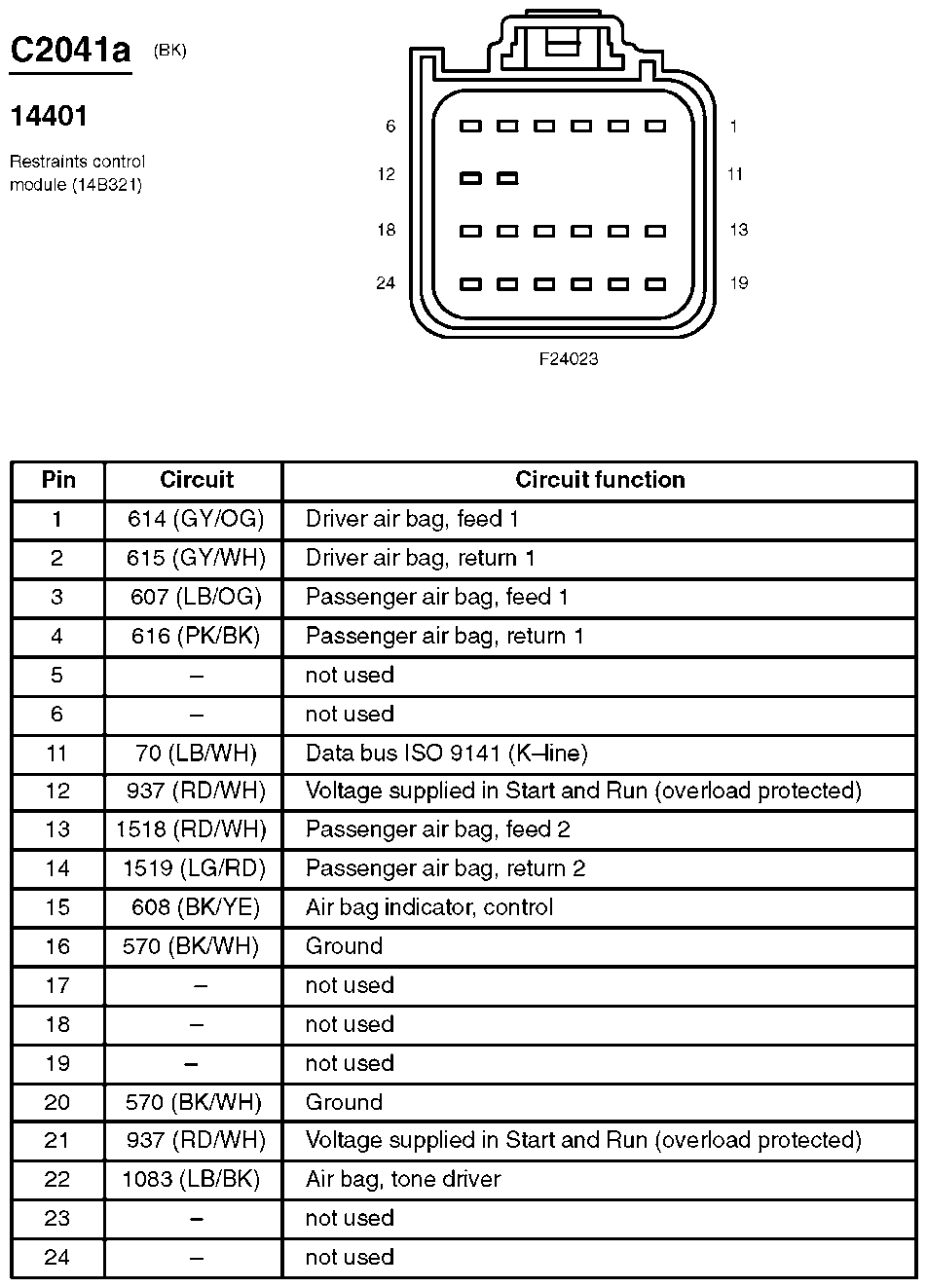

Fig 239: Restraints Control Module Connector End View (C2041a)

G07832799

Courtesy of FORD MOTOR CO.

Fig 240: Power Point Connector End View (C2033)

G07832800

Courtesy of FORD MOTOR CO.

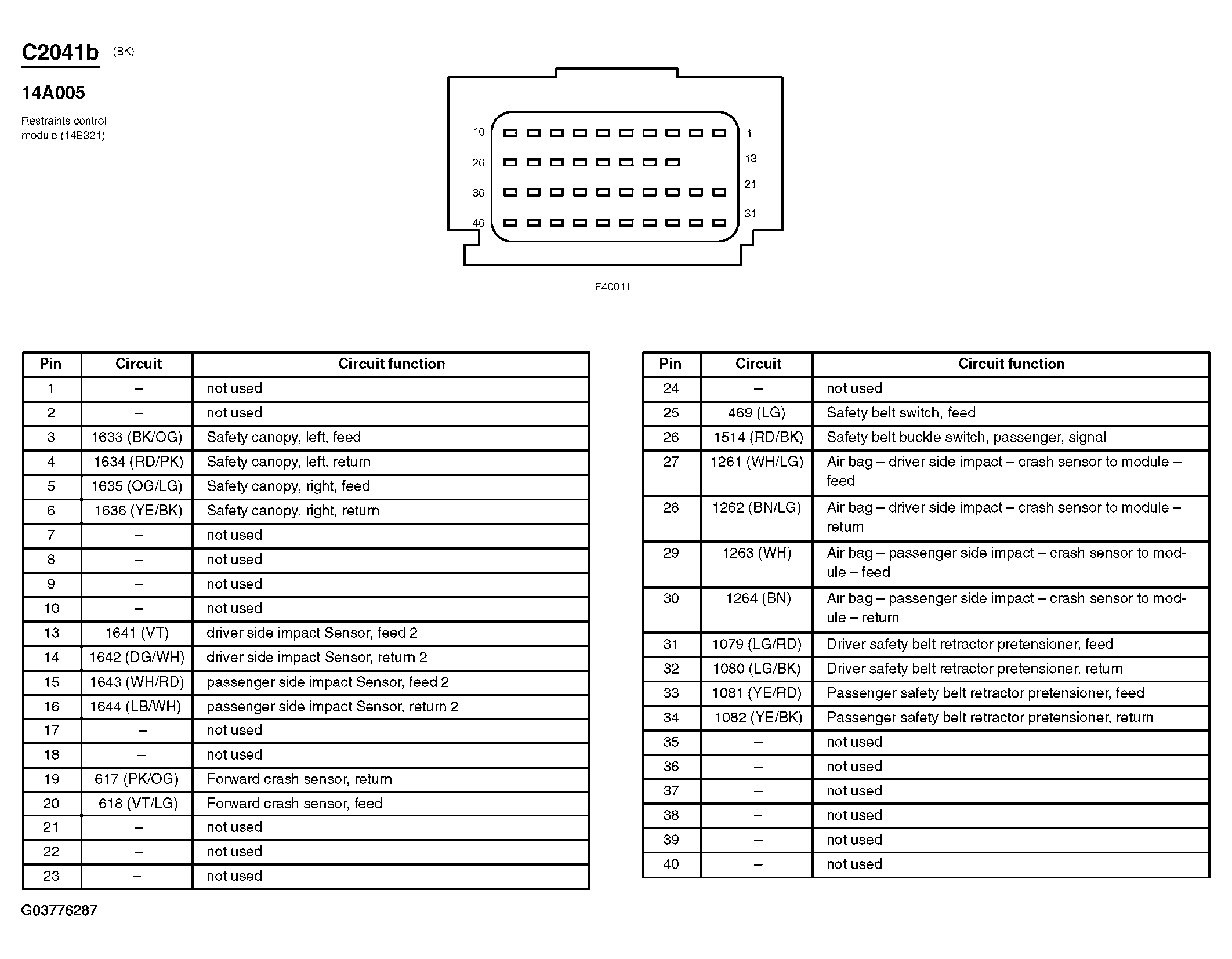

Fig 241: Restraints Control Module Connector End View (C2041b)

G03776287

Courtesy of FORD MOTOR CO.

Fig 242: Indicator Flasher Relay Connector End View (C2047)

G07832801

Courtesy of FORD MOTOR CO.

Fig 243: Battery Saver Relay Connector End View (C2048)

G07832802

Courtesy of FORD MOTOR CO.

Fig 244: Trailer Tow Relay Connector End View (C2049)

G07832803

Courtesy of FORD MOTOR CO.

Fig 245: One-Touch Window Relay Connector End View (C2051)

G07832804

Courtesy of FORD MOTOR CO.

Fig 246: Park Lamp Relay Connector End View (C2059)

G07832805

Courtesy of FORD MOTOR CO.

Fig 247: Rear Window Adjust Switch Connector End View (C2060)

G07832806

Courtesy of FORD MOTOR CO.

Fig 248: Door Unlock Relay Connector End View (C2061)

G07832807

Courtesy of FORD MOTOR CO.

Fig 249: Door Lock Relay Connector End View (C2062)

G07832808

Courtesy of FORD MOTOR CO.

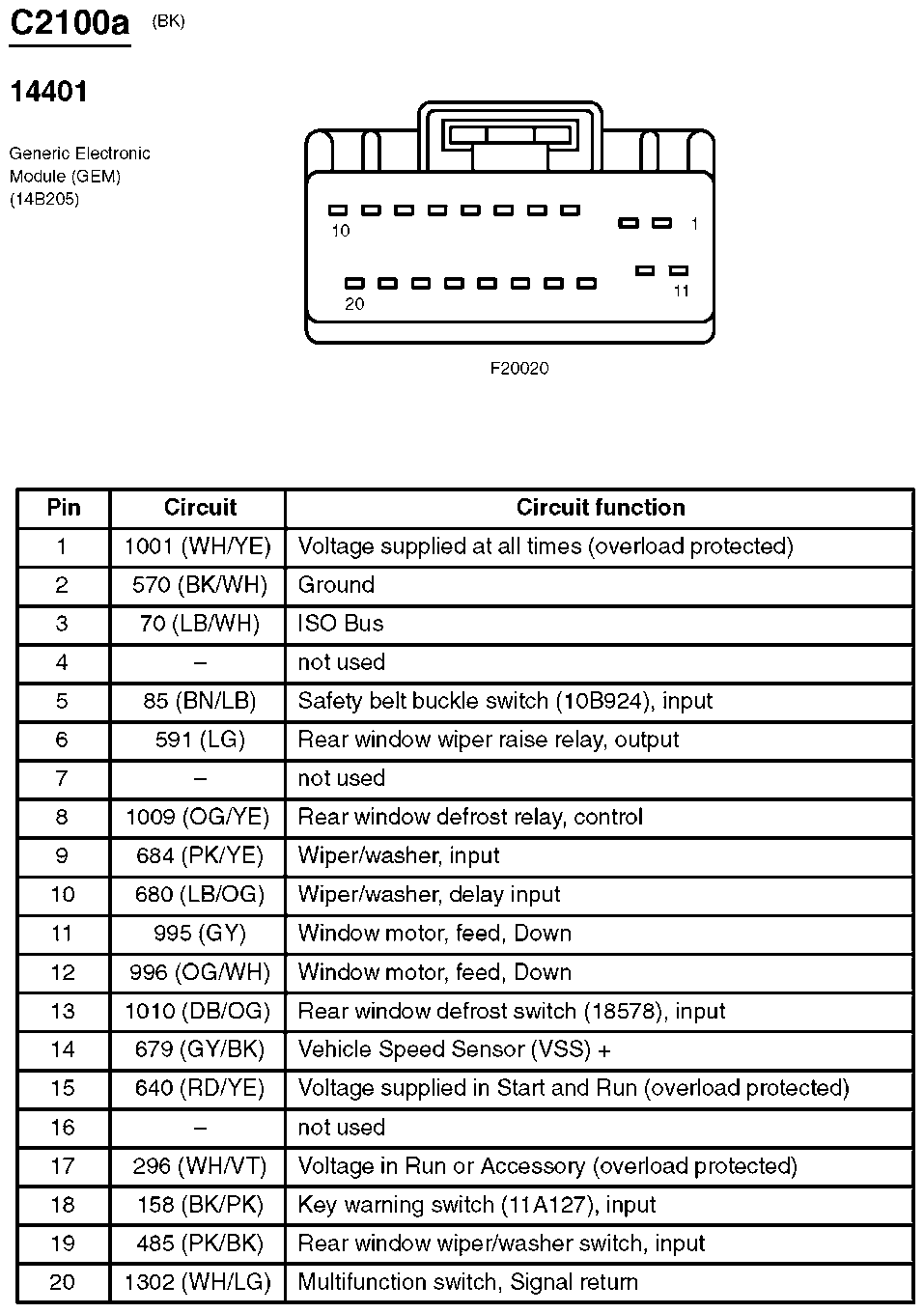

Fig 250: Generic Electronic Module (GEM) Connector End View (C2100a)

G07832809

Courtesy of FORD MOTOR CO.

Fig 251: Passive Anti-Theft Transceiver Connector End View (C2097)

G07832810

Courtesy of FORD MOTOR CO.

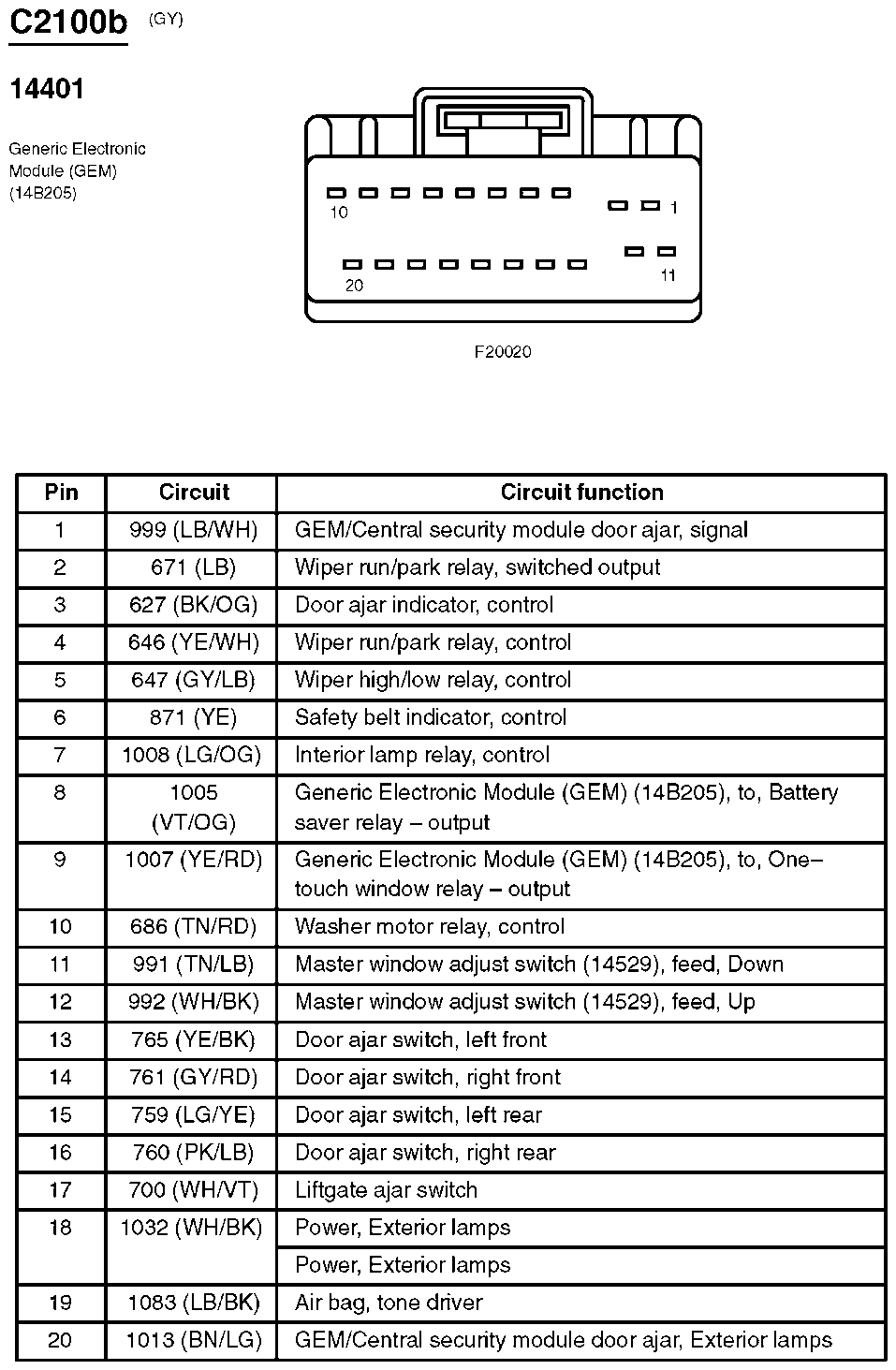

Fig 252: Generic Electronic Module (GEM) Connector End View (C2100b)

G07832811

Courtesy of FORD MOTOR CO.

Fig 253: Autolamp Headlamp Relay Connector End View (C2233)

G07832812

Courtesy of FORD MOTOR CO.

Fig 254: Autolamp Dimmer Relay Connector End View (C2234)

G07832813

Courtesy of FORD MOTOR CO.

Fig 255: Neutral Tow Indicator Connector End View (C2260)

G07832814

Courtesy of FORD MOTOR CO.

Fig 256: Blower Motor, Rear Connector End View (C3002)

G07832815

Courtesy of FORD MOTOR CO.

Fig 257: Heater Blower Motor Resistor, Rear Connector End View (C3003)

G07832816

Courtesy of FORD MOTOR CO.

Fig 258: Function Selector Switch Assembly, Rear Connector End View (C3006)

G07832817

Courtesy of FORD MOTOR CO.

Fig 259: Power Seat Motor Assembly, Right Connector End View (C3015)

G07832818

Courtesy of FORD MOTOR CO.

Fig 260: Subwoofer Connector End View (C3020)

G07832819

Courtesy of FORD MOTOR CO.

Fig 261: Subwoofer Amplifier Connector End View (C3041a)

G07832820

Courtesy of FORD MOTOR CO.

Fig 262: Subwoofer Amplifier Connector End View (C3041b)

G07832821

Courtesy of FORD MOTOR CO.

Fig 263: Subwoofer Amplifier Connector End View (C3041c)

G07832822

Courtesy of FORD MOTOR CO.

Fig 264: Seat Belt Buckle Sensor, Driver Connector End View (C3065)

G07832823

Courtesy of FORD MOTOR CO.

Fig 265: Seat Belt Buckle Sensor, Passenger Connector End View (C3066)

G07832824

Courtesy of FORD MOTOR CO.

Fig 266: Power Point, Left Rear Connector End View (C3164)

G07832825

Courtesy of FORD MOTOR CO.

Fig 267: Side Impact Sensor, Driver 1 Connector End View (C3209)

G07832826

Courtesy of FORD MOTOR CO.

Fig 268: Side Impact Sensor, Driver 2 Connector End View (C3210)

G07832827

Courtesy of FORD MOTOR CO.

Fig 269: Side Impact Sensor, Passenger 1 Connector End View (C3211)

G07832828

Courtesy of FORD MOTOR CO.

Fig 270: Side Impact Sensor, Passenger 2 Connector End View (C3212)

G07832829

Courtesy of FORD MOTOR CO.

Fig 271: Park/Stop/Turn Lamp, Right Rear Connector End View (C4032)

G07832830

Courtesy of FORD MOTOR CO.

Fig 272: Fuel Tank Unit Connector End View (C4033)

G07832831

Courtesy of FORD MOTOR CO.

Fig 273: Park/Stop/Turn Lamp, Left Rear Connector End View (C4035)

G07832832

Courtesy of FORD MOTOR CO.

Fig 274: Rear Wiper Motor Assembly Connector End View (C4171)

G07832833

Courtesy of FORD MOTOR CO.
