Selector Lever Indicator Adjustment

Remove the lower steering column opening finish panel.
1. Remove the screws and position the hood release handle out of the way.
2. Remove the two screws from the lower steering column opening finish panel.
3. Pull outward to release the retaining clips and remove the lower steering column opening finish panel.

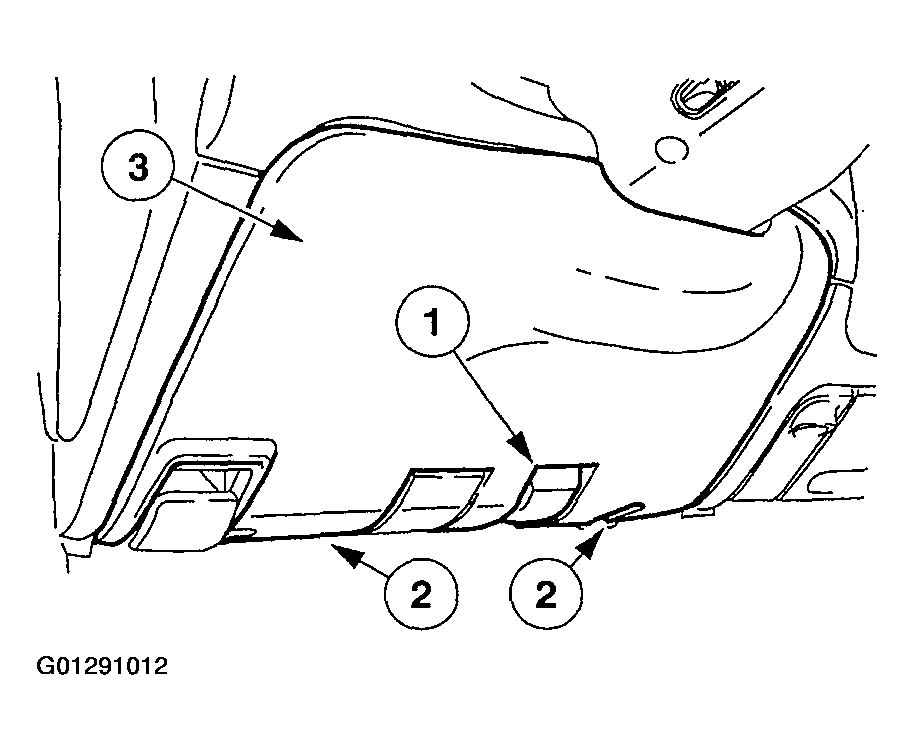

Fig 1: Removing Lower Steering Column Opening Finish Panel
Courtesy of FORD MOTOR CO.
Remove the five bolts and the lower steering column opening finish panel reinforcement.

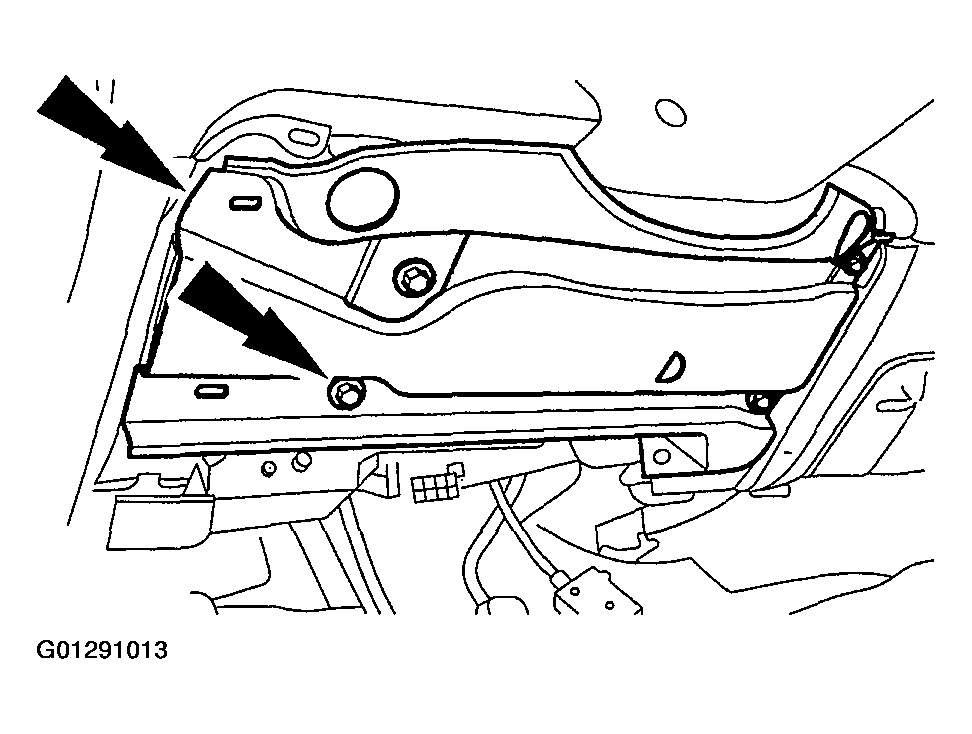

Fig 2: Removing Five Bolts
Courtesy of FORD MOTOR CO.
Rotate the gearshift lever (7210) clockwise until it bottoms out (first gear), then rotate it counterclockwise two detents ((D) position).
Hang a 1.4 kg (3 lb) weight on the gearshift lever.
Rotate the thumbwheel to center the selector lever indicator in the middle of the (D) position.

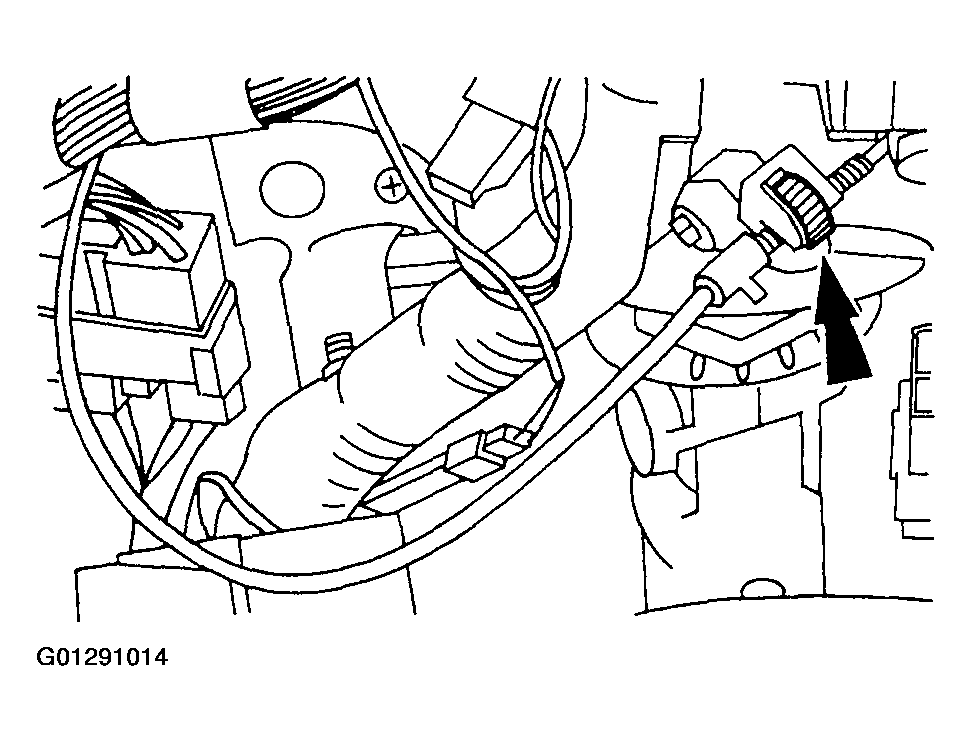

Fig 3: Rotating Thumbwheel To Center Selector Lever Indicator
Courtesy of FORD MOTOR CO.
Remove the 1.4 kg (3 lb) weight.
Rotate the gearshift lever into each detent to verify that the selector lever indicator matches the selected range. Readjust, if necessary.
Install the lower steering column opening finish panel reinforcement.

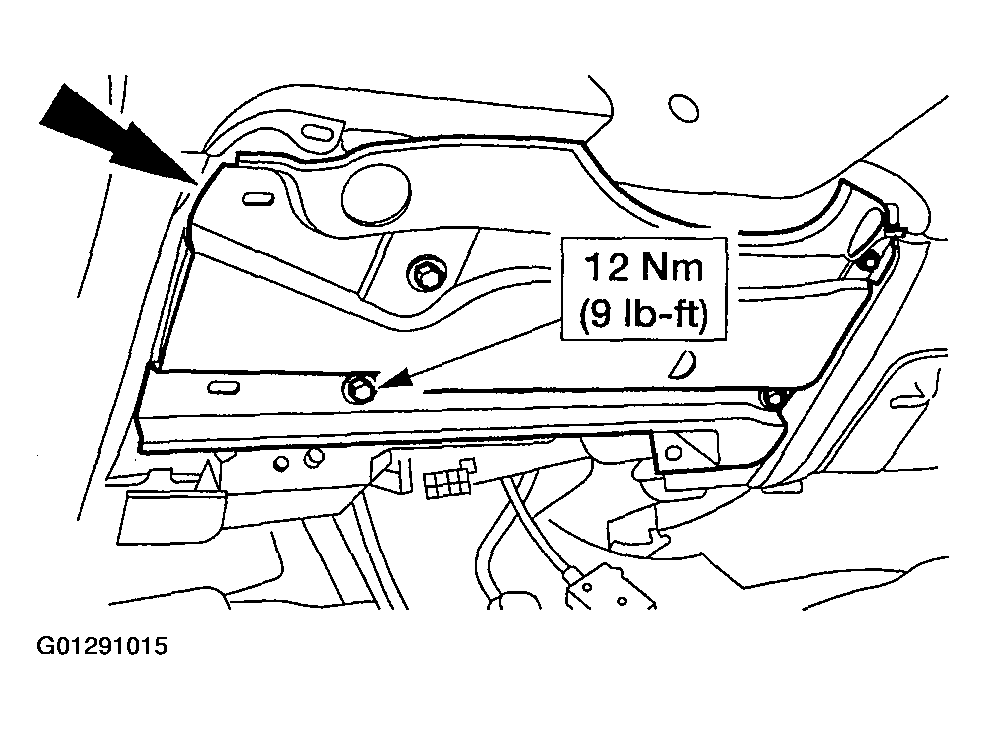

Fig 4: Installing Lower Steering Column Opening Finish Panel Reinforcement
Courtesy of FORD MOTOR CO.
Install the lower steering column opening finish panel and the hood release handle.

Fig 5: Installing Lower Steering Column Opening Finish Panel
Courtesy of FORD MOTOR CO.
