End Play Specifications

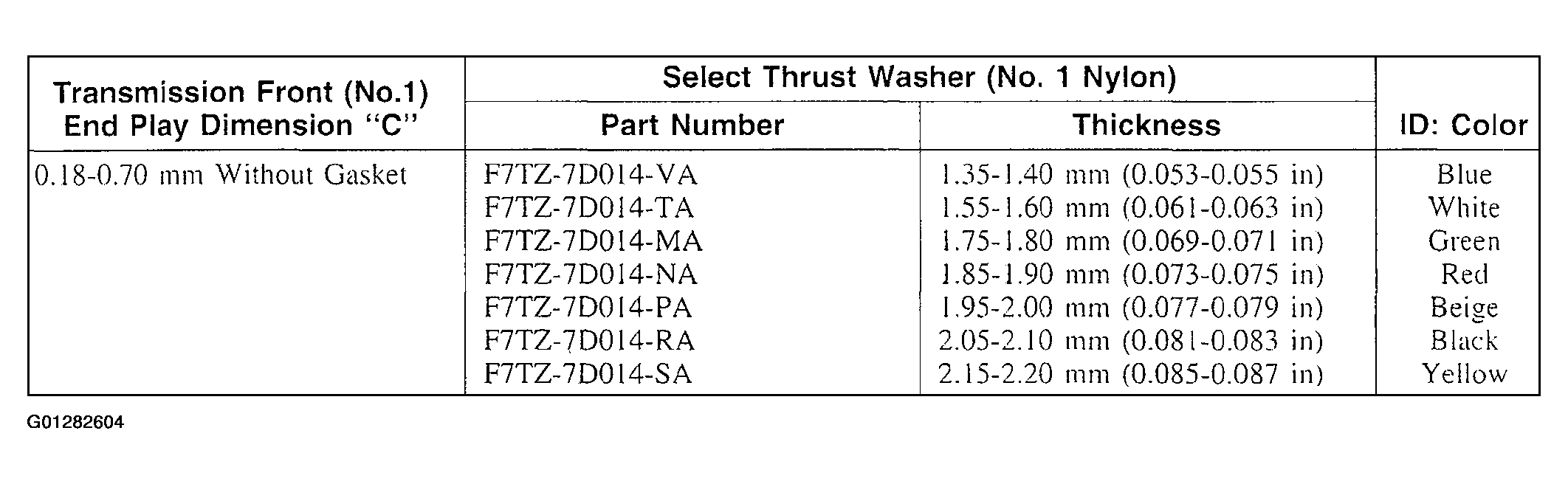

Fig 1: End Play Specifications (No 1 Nylon)
Courtesy of FORD MOTOR CO.

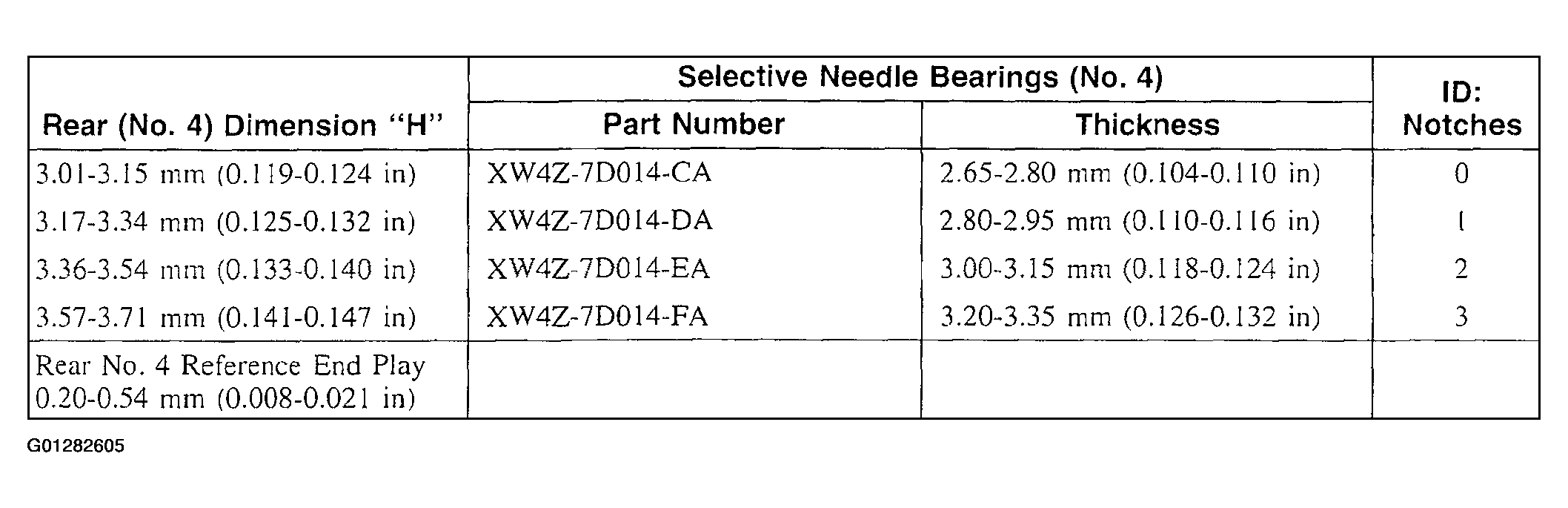

Fig 1: End Play Specifications (No 4)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
