Torque Converter End Play Check: Notes

Special Tool(s)

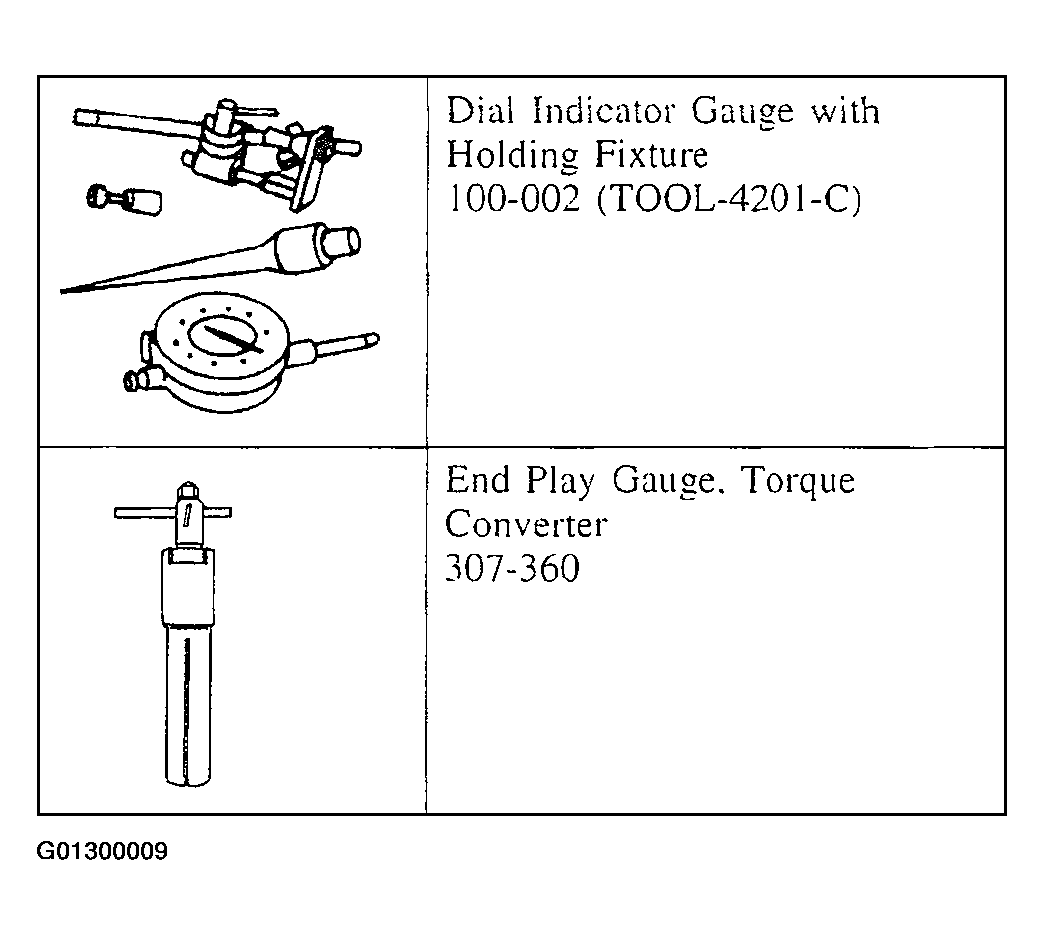

Fig 1: Identifying Special Tool(s)

Courtesy of FORD MOTOR CO.

1. Install special tool into the torque converter.
2. Insert special tool into the torque converter until it bottoms.
3. Tighten the inner post until the tool is securely locked.

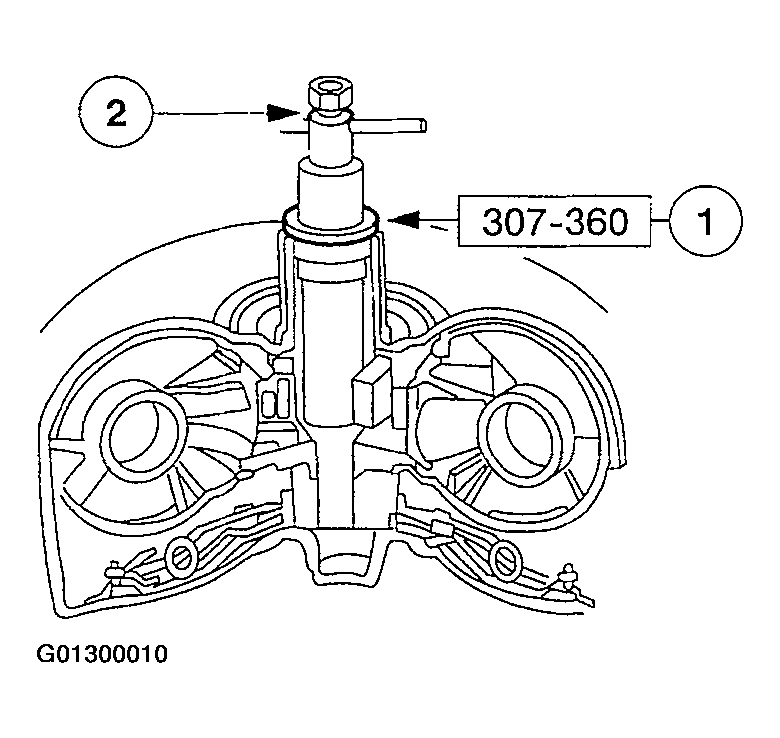

   Fig 2: Installing Special Tool Into Torque Converter

   Courtesy of FORD MOTOR CO.
4. Install the special tool as shown. Position the dial indicator bottom on the converter impeller housing and zero the dial.

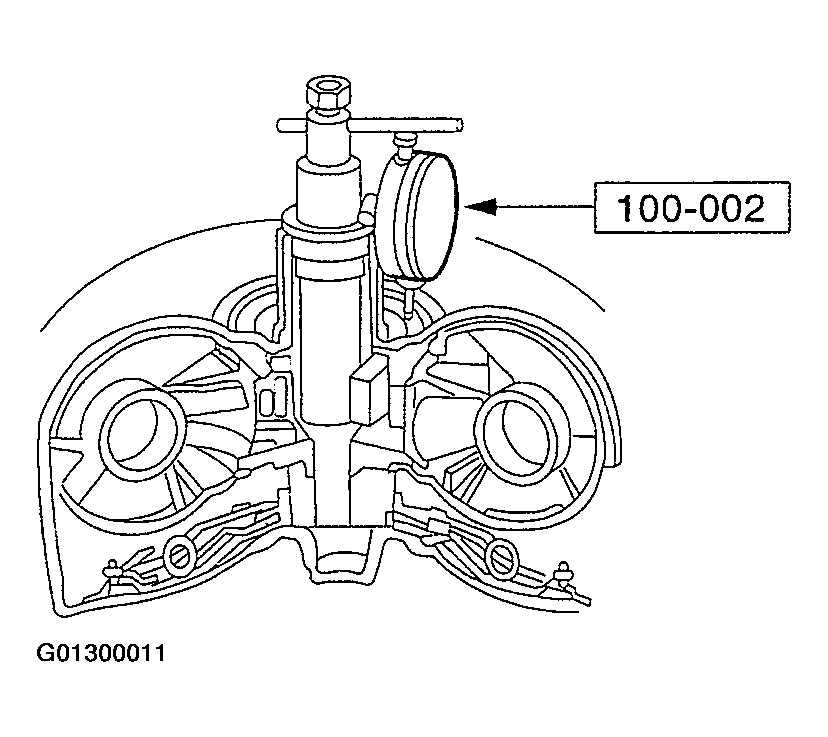

   Fig 3: Positioning Dial Indicator Bottom On Converter Impeller Housing And Zero Dial

   Courtesy of FORD MOTOR CO.
5. Lift up on the special tool and note the dial indicator reading. If the reading exceeds end play limits, install a new or remanufactured torque converter.
