Front Planetary Gears: Assembly

NOTE: Thoroughly clean all parts and blow dry with moisture free compressed air.

NOTE: Use petroleum jelly to hold the front planetary thrust bearing (No. 2) in place.

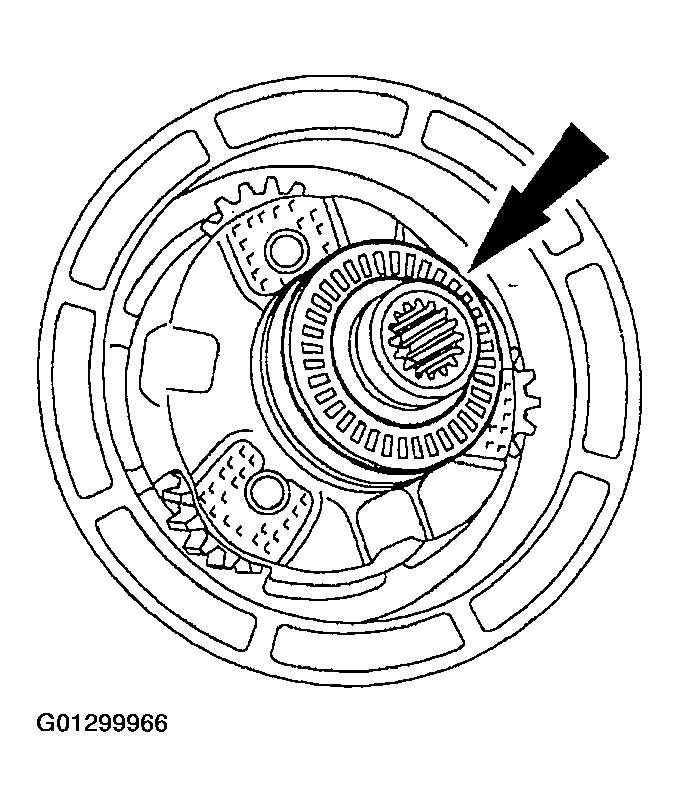

Fig 1: Installing No. 2 Front Planetary Thrust Bearing

Courtesy of FORD MOTOR CO.

Install the No. 2 front planetary thrust bearing.
Install the front planetary gear carrier into the center shaft and front ring gear.

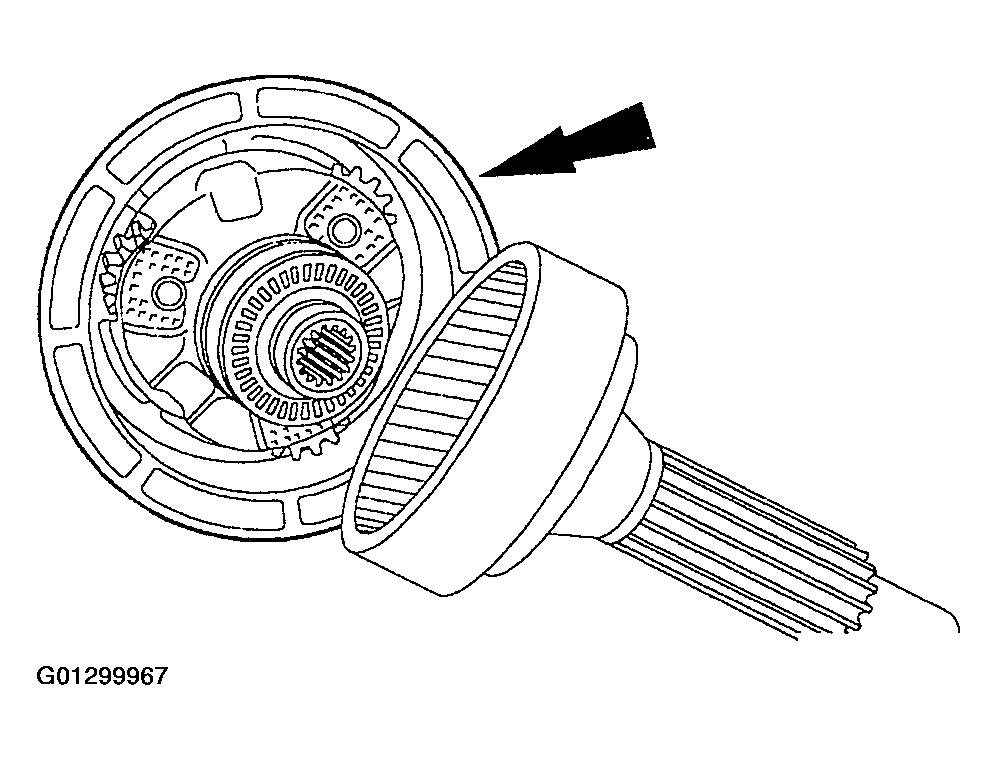

Fig 2: Installing Front Planetary Gear Carrier
Courtesy of FORD MOTOR CO.

CAUTION: The part number that is stamped on the coast clutch adapter must face toward the front sun gear or the coast clutch assembly will not fit into the transmission.

CAUTION: Use care not to bend or damage the exciter wheel.

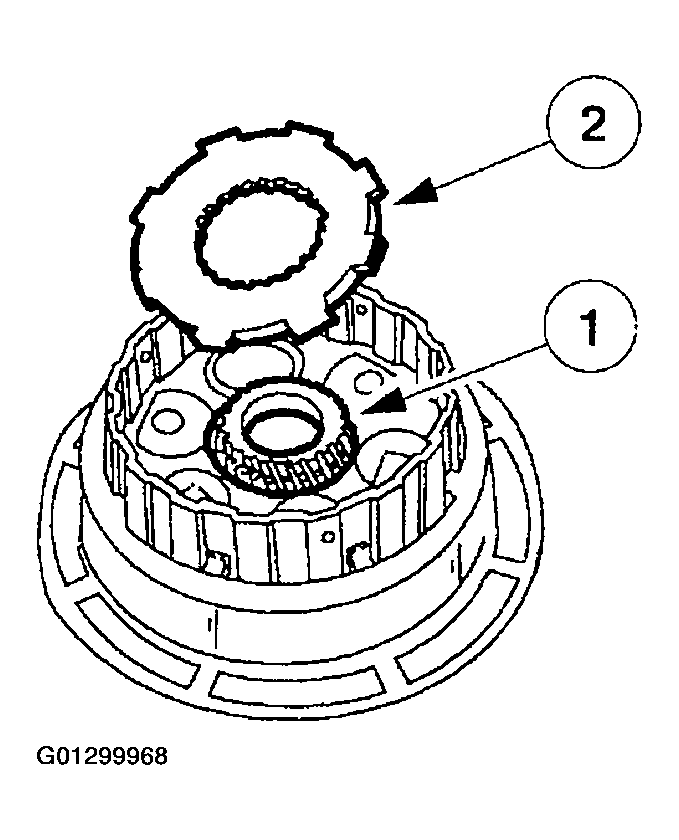

Fig 3: Installing Front Sun Gear

Courtesy of FORD MOTOR CO.

Install the front sun gear.
1. Install the front sun gear.
2. Install the coast clutch to front carrier adapter.
