Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

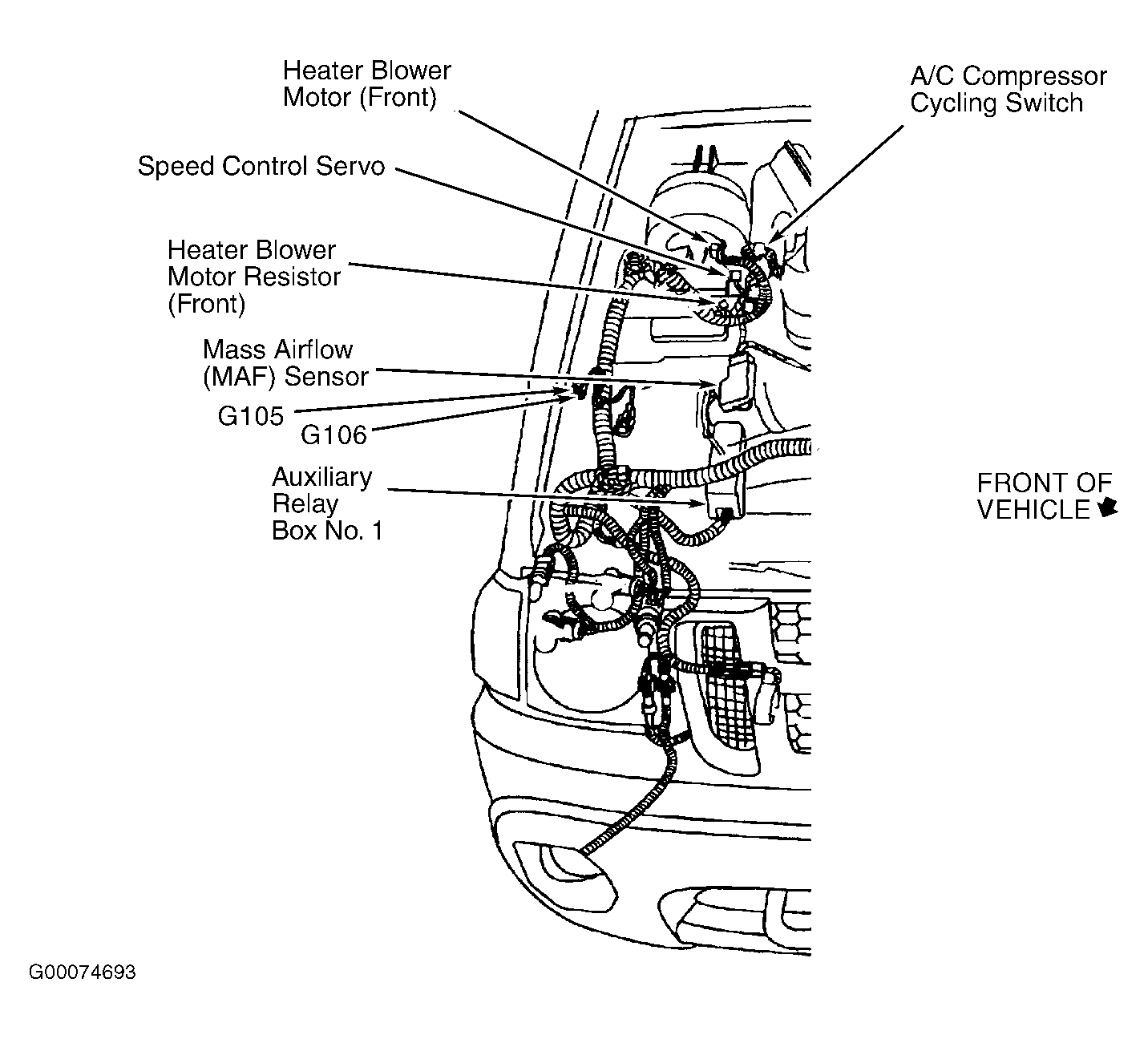

| Auxiliary Relay Box No. 1 | Right side of engine compartment. See Figure . |

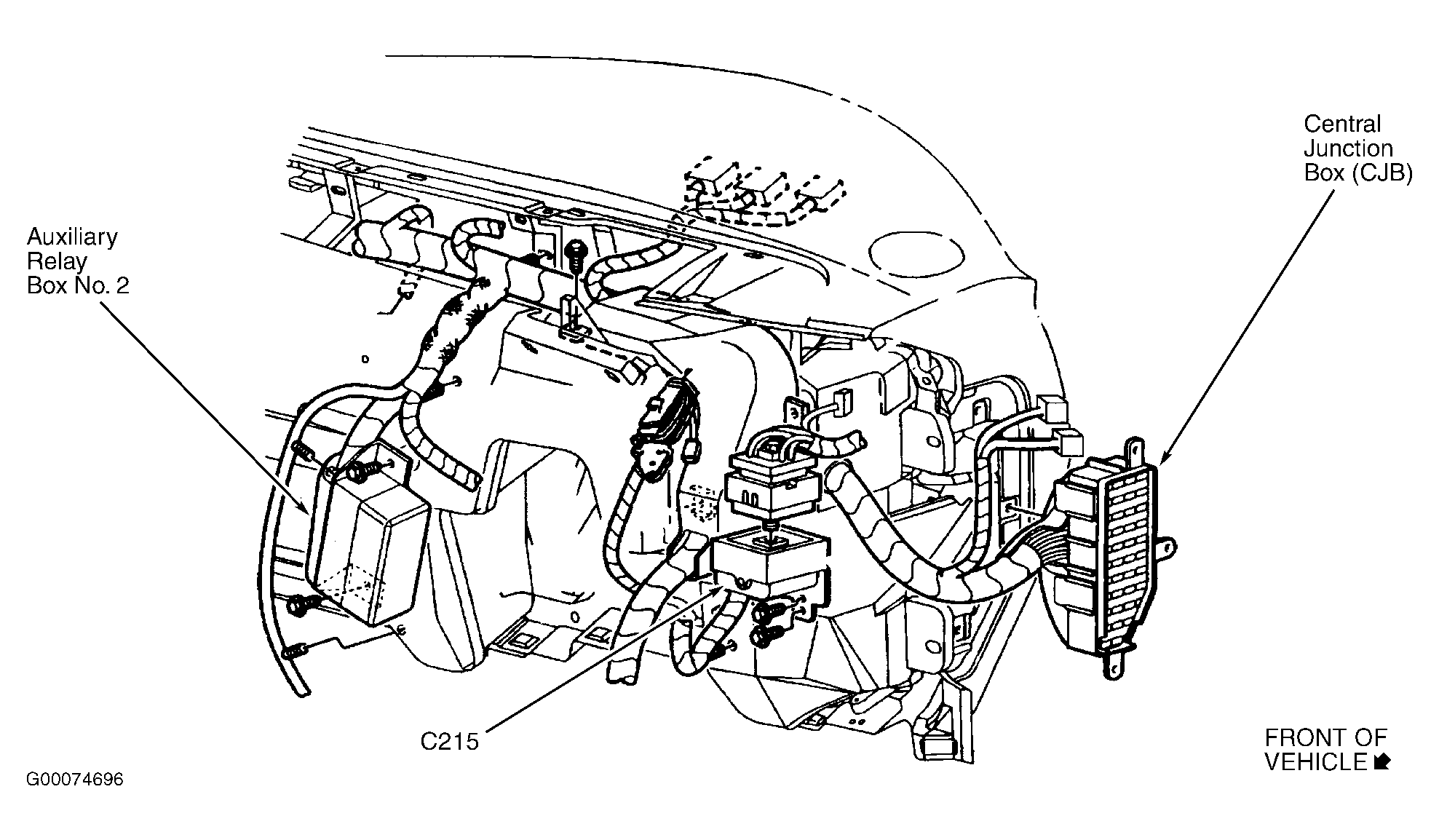

| Auxiliary Relay Box No. 2 | Under left side of dash, near steering column. See Figure . |
| Battery Junction Box (BJB) | Left side of engine compartment, at fender apron. |
| Central Junction Box (CJB) | Behind left side of dash. See Figure . |
