Spring Lock Couplings: Disconnect

WARNING: Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited, resulting in possible personal injury.

WARNING: Fuel in the fuel system remains under high pressure even when the engine is not running. Before repairing or disconnecting any of the fuel lines or fuel system components, the fuel system pressure must be relieved to prevent accidental spraying of fuel, causing personal injury or a fire hazard.

Relieve the fuel pressure. Refer to FUEL SYSTEM PRESSURE RELEASE .

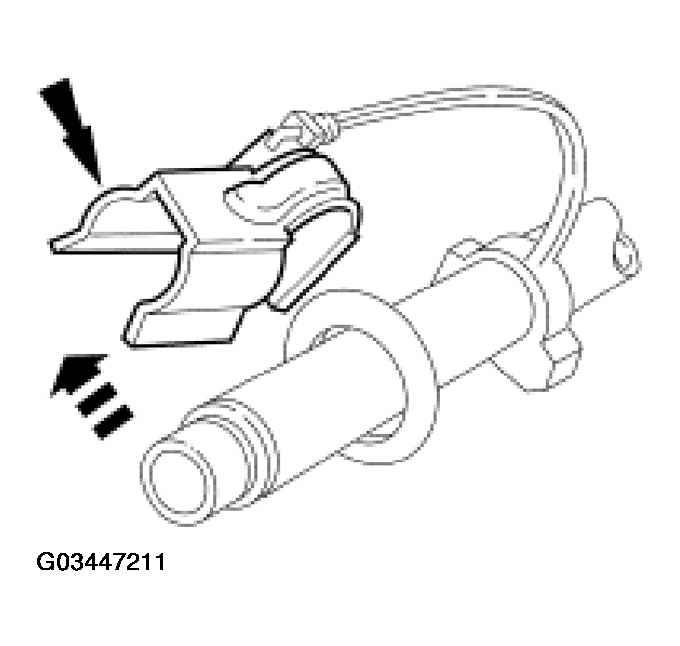

Remove the safety clip.

Fig 1: Removing Safety Clip
Courtesy of FORD MOTOR CO.

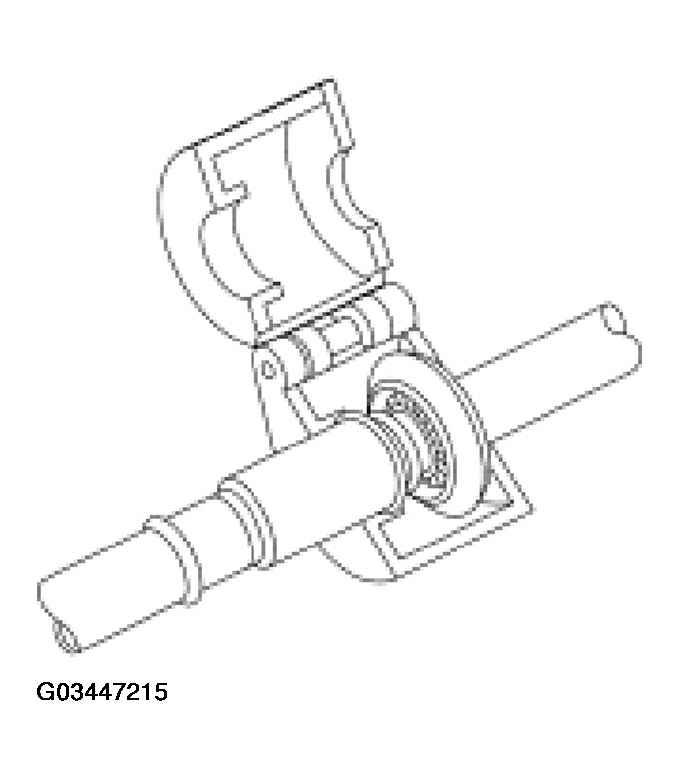

Install the Spring Lock Coupling Disconnect Tool.

Fig 2: Installing Spring Lock Coupling Disconnect Tool
Courtesy of FORD MOTOR CO.

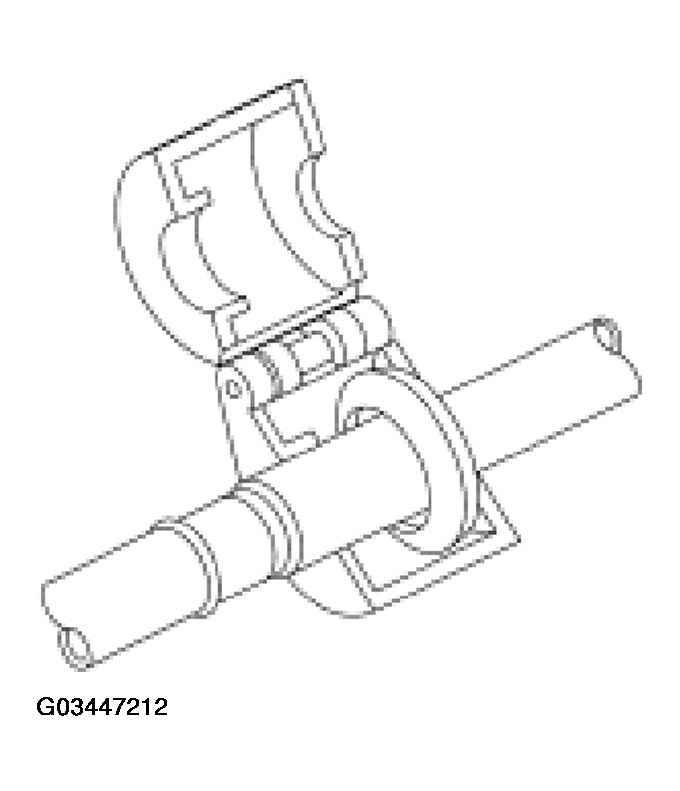

Close and push the Spring Lock Coupling Disconnect Tool into the open side of the cage.

Fig 3: Pushing Spring Lock Coupling Disconnect Tool Into Open Side Of Cage
Courtesy of FORD MOTOR CO.
Separate the coupler.

Fig 4: Separating Coupler
Courtesy of FORD MOTOR CO.
Remove the Spring Lock Coupling Disconnect Tool.

Fig 5: Removing Spring Lock Coupling Disconnect Tool
Courtesy of FORD MOTOR CO.
