Spring Lock Couplings: Connect

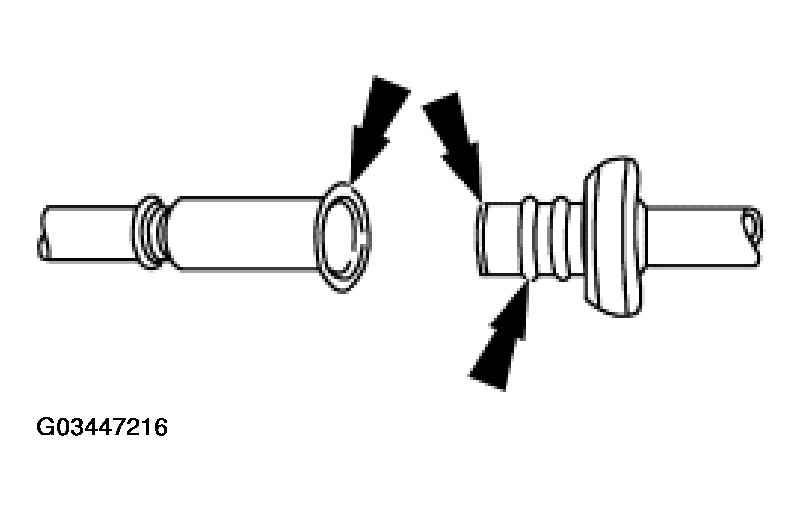

Inspect and clean both the coupling ends. Lubricate the O-ring seals with Super Premium SAE 5W-30 XO-5W30-QSP or equivalent meeting Ford specification WSS-M2C153-G.

Fig 1: Inspecting Coupling Ends
Courtesy of FORD MOTOR CO.

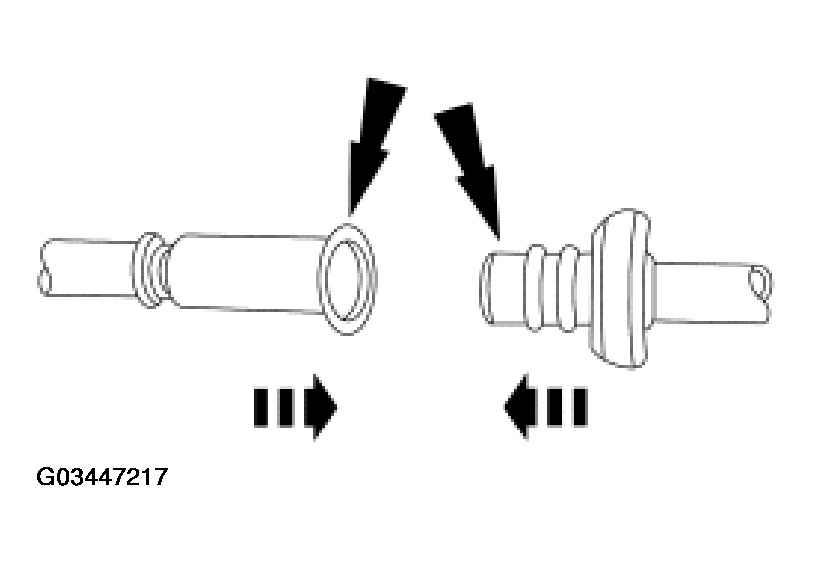

Connect the coupler by inserting the male end into the female end of the coupler. Push the coupler together until the garter spring is engaged.

Fig 2: Inserting Male End Into Female End Of Coupler
Courtesy of FORD MOTOR CO.

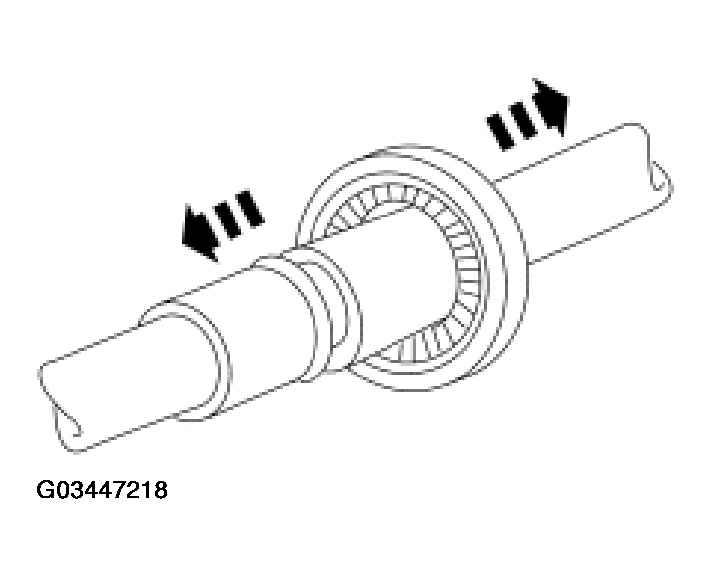

Pull on the coupler to make sure it is fully engaged.

Fig 3: Checking Engagement Of Coupler
Courtesy of FORD MOTOR CO.

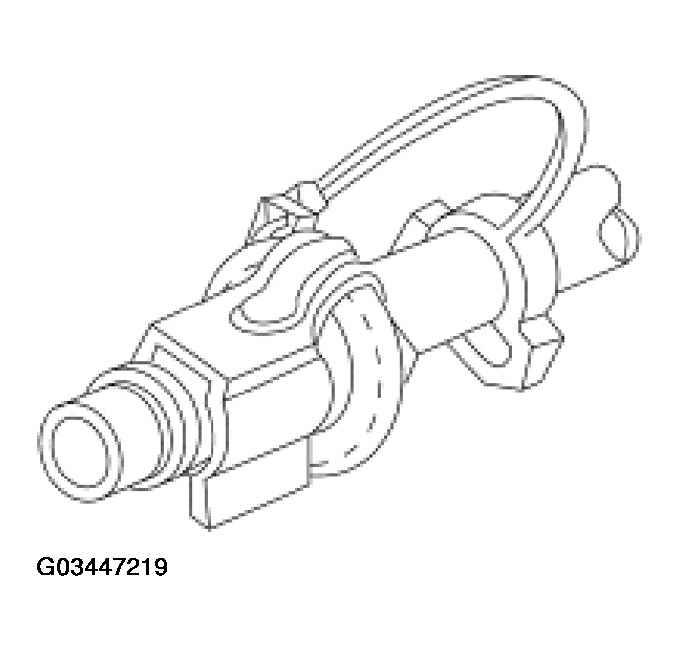

Install the safety clip.

Fig 4: Installing Safety Clip
Courtesy of FORD MOTOR CO.
