Torque Specifications
Torque Specifications

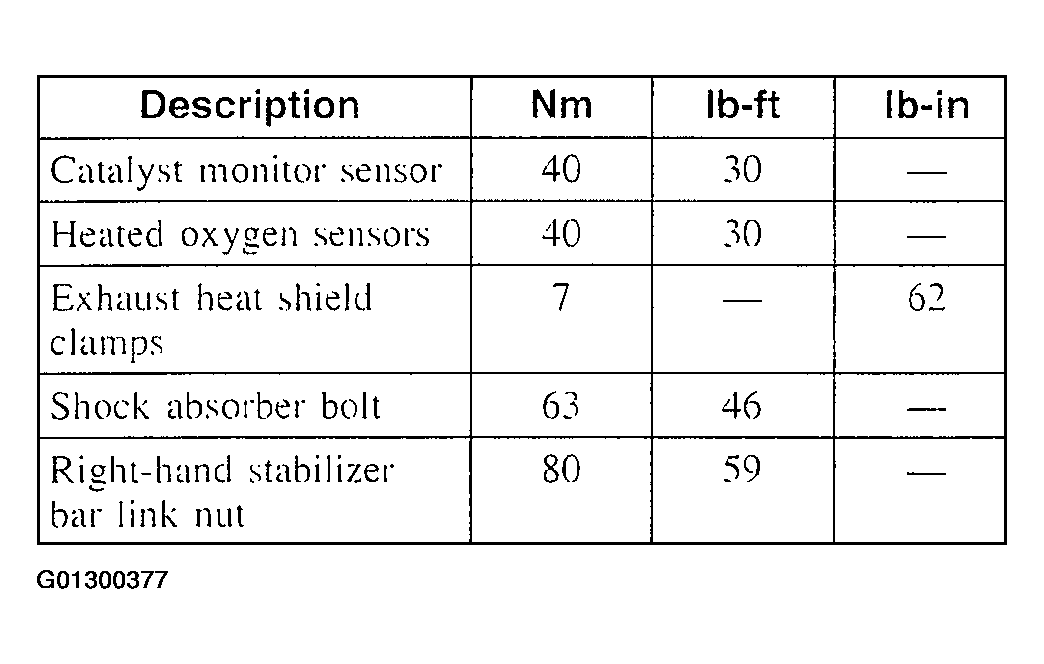

Fig 1: Exhaust System Torque Specifications (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 2: Exhaust System Torque Specifications (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
