Shift Control Housing: Disassembly

  1. Inspect the shift control assembly.
    NOTE: Do not disassemble the shift bar housing to determine if parts have worn. Note the condition of the shift fork rails and forks by a visual inspection. If the forks have excessive wear or if they bind when shifted into the various positions, disassemble the shift bar housing to carry out repairs.
  2. Remove the lower gearshift lever.
    1. Remove the dust cover screws.
    2. Remove the dust cover.
    3. Remove the lower gearshift lever.

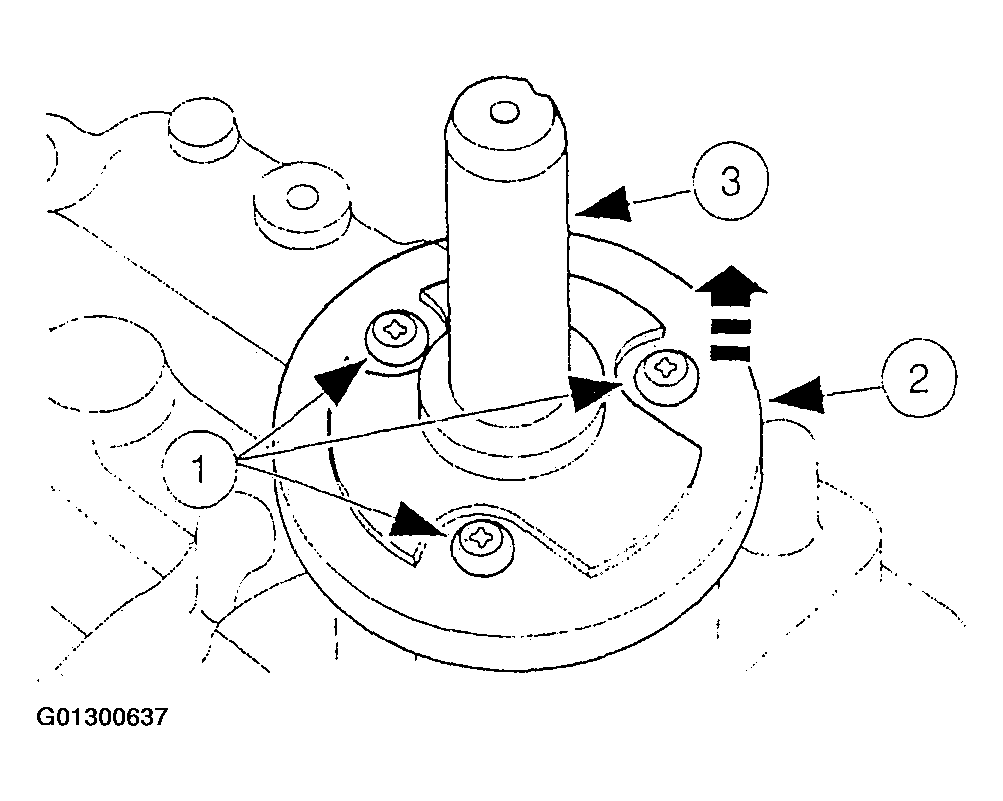

    Fig 1: Removing Lower Gearshift Lever
    G01300637Courtesy of FORD MOTOR CO.
  3. Remove the reverse lamp switch and the actuating pin.

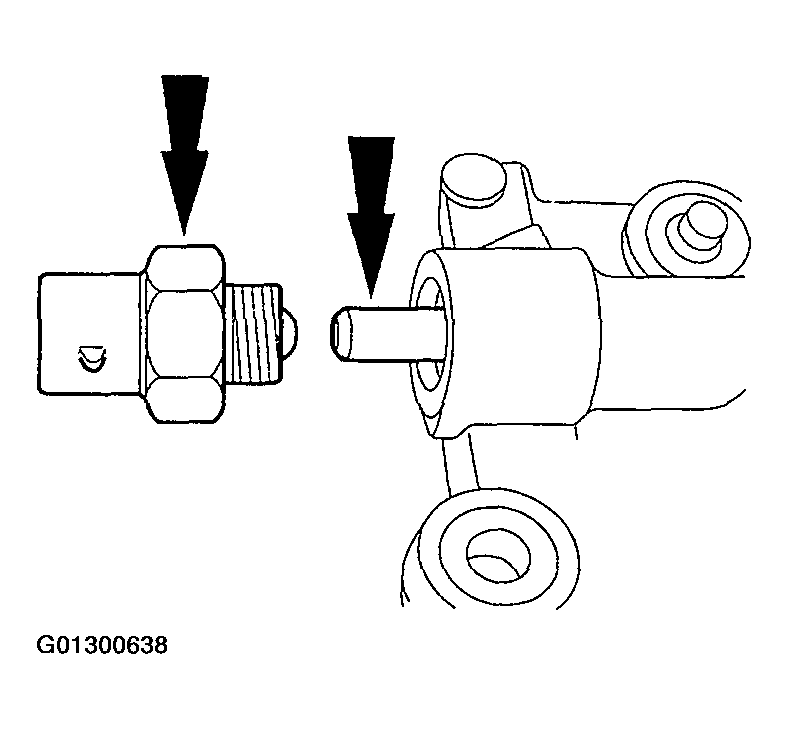

    Fig 2: Removing Reverse Lamp Switch And Actuating Pin
    G01300638Courtesy of FORD MOTOR CO.
  4. Invert the case cover on the special tool.

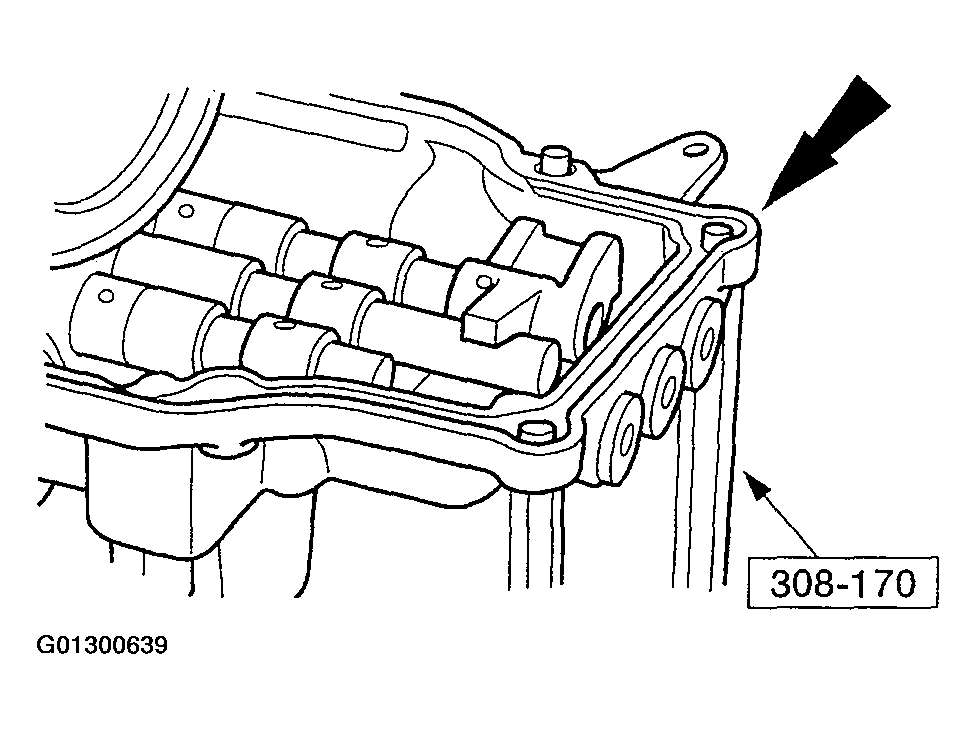

    Fig 3: Inverting Case Cover On Special Tool
    G01300639Courtesy of FORD MOTOR CO.
  5. Remove and discard the shift fork spring pins.
    NOTE: Place the shift mechanism in the neutral position.

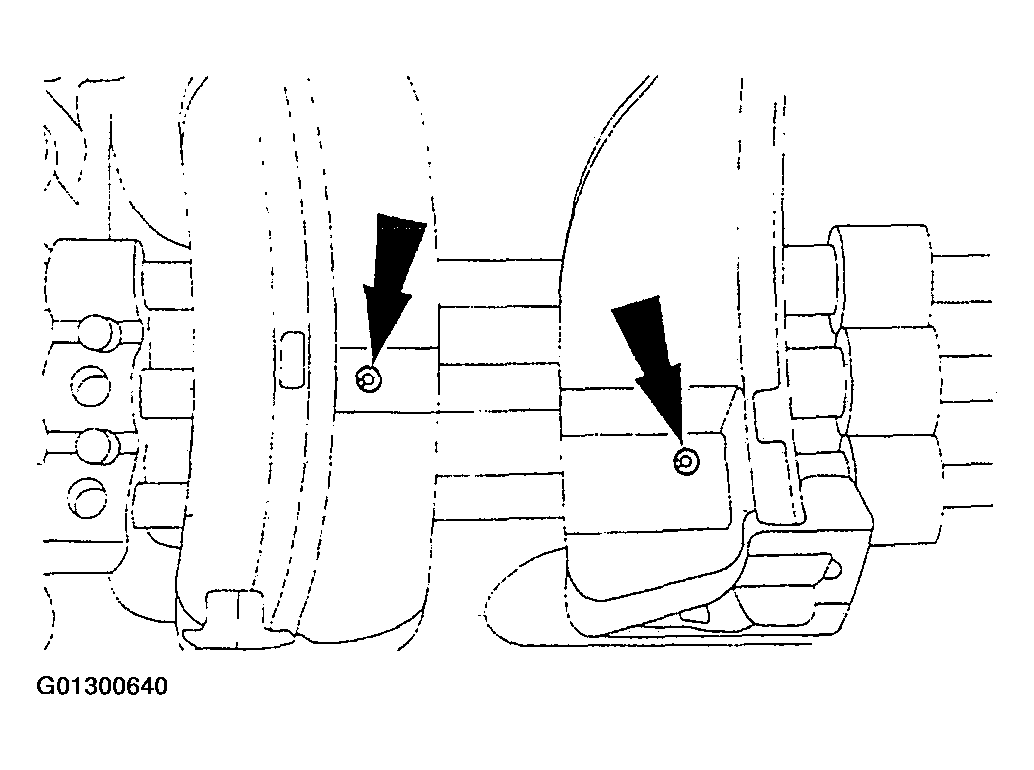

    Fig 4: Removing Shift Fork Spring Pins
    G01300640Courtesy of FORD MOTOR CO.
  6. Remove and discard the shift gate spring pins.

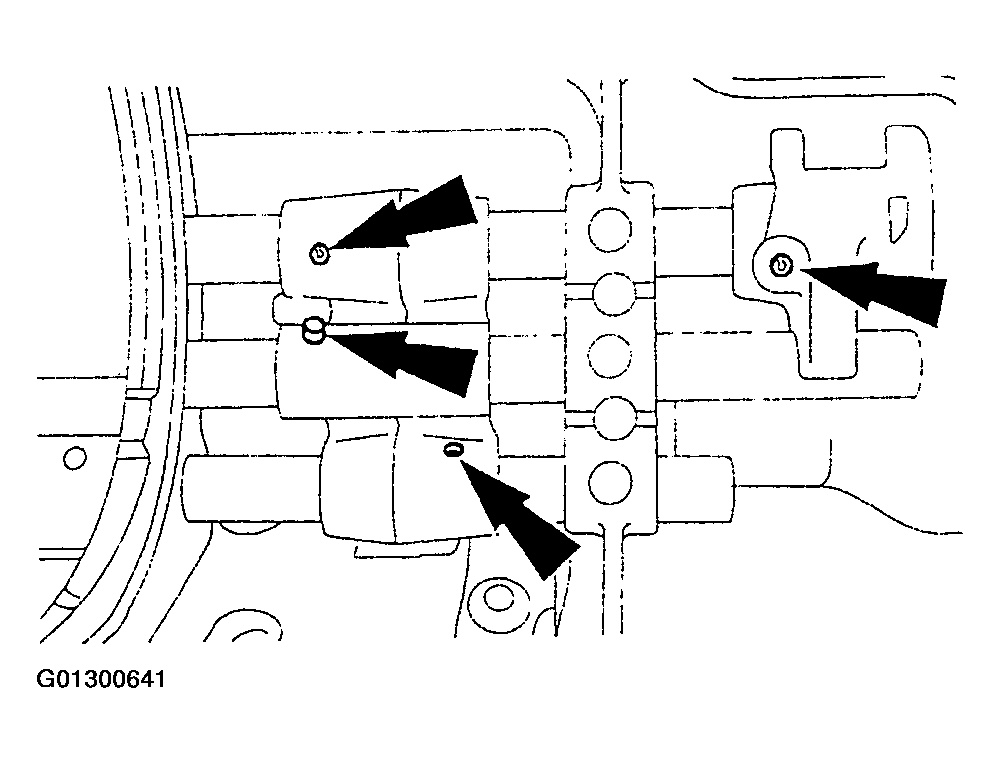

    Fig 5: Removing Shift Gate Spring Pins
    G01300641Courtesy of FORD MOTOR CO.
  7. Remove the three rubber service bore plugs.

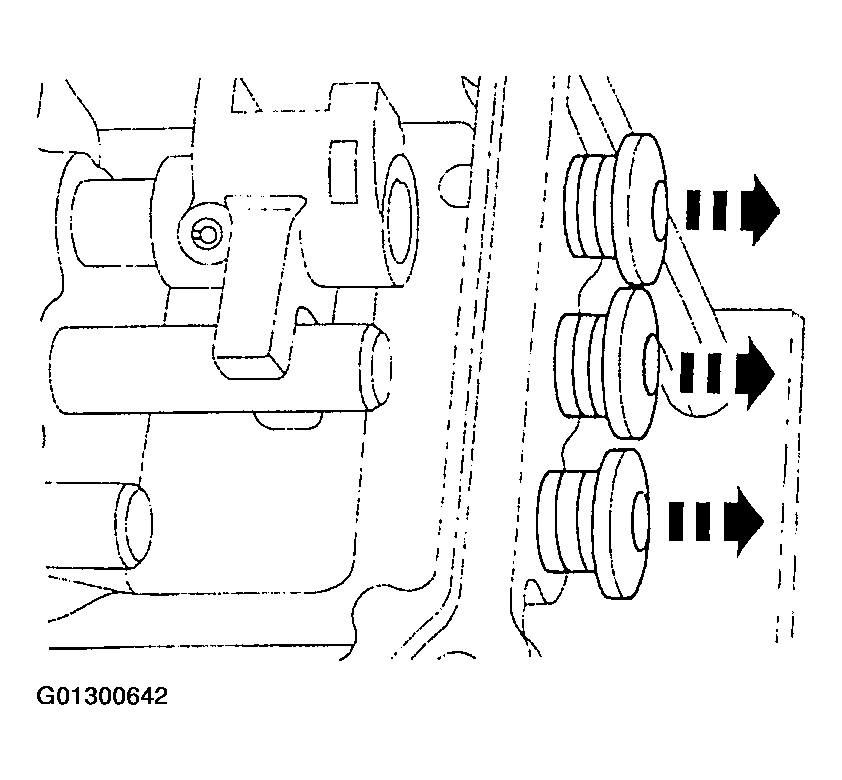

    Fig 6: Removing Rubber Service Bore Plugs
    G01300642Courtesy of FORD MOTOR CO.

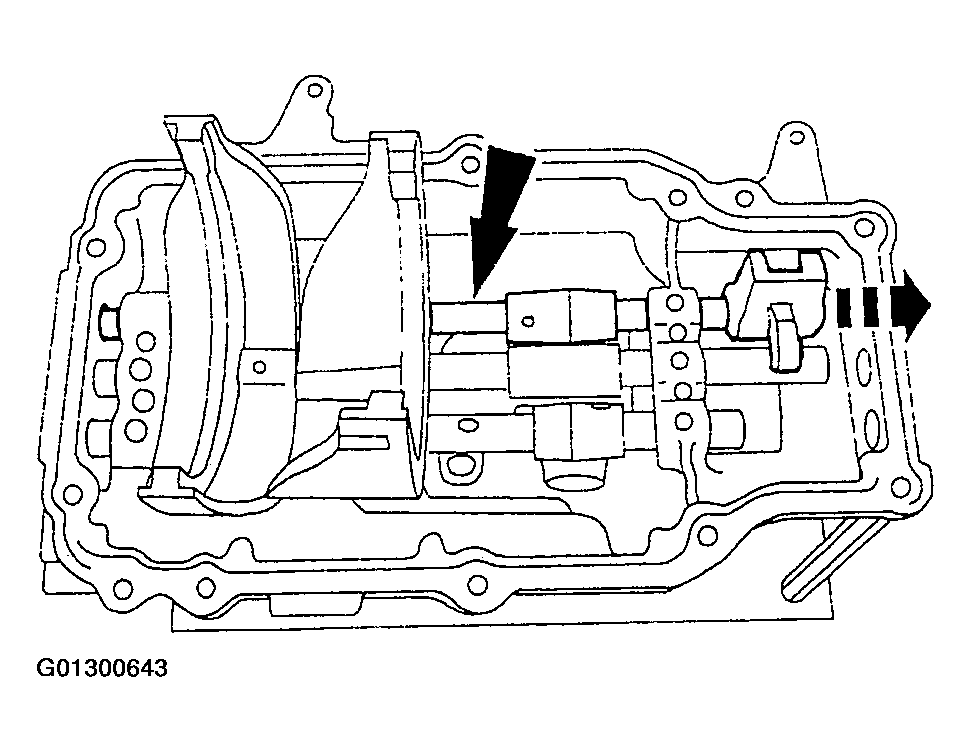

    Fig 7: Locating Shift Rails
    G01300643Courtesy of FORD MOTOR CO.
  8. Use the spring pin bore to remove the fifth/reverse shift rail.
    WARNING: Wear safety glasses while performing shift rail removal procedure.
    CAUTION: Perform the following shift rail removal procedure with great care. Cover the lockball and friction device bores and spring seats with a clean cloth held firmly into place during shift rail removal. Failure to cover bores can result in component loss when the ball/friction device and spring forcefully leave their installed positions.
    NOTE: When removing the shift rails, collect and separate the interlock pins to ensure installation into their original locations.

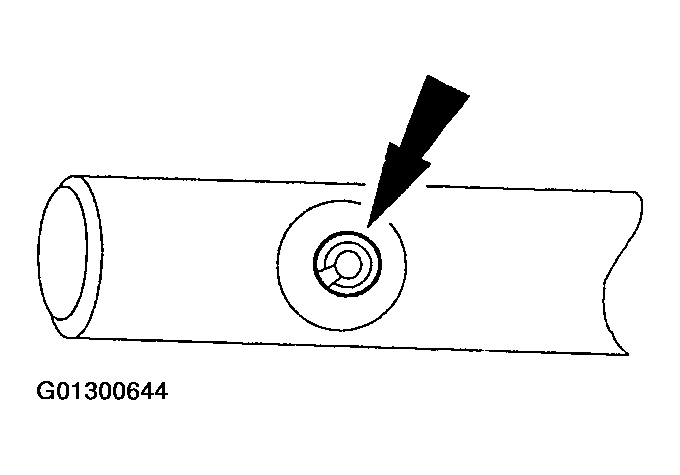

    Fig 8: Locating Interlock Pin
    G01300644Courtesy of FORD MOTOR CO.
  9. Remove the first/second shift rail.
    • Use a suitable punch in the spring pin bore to aid removal.

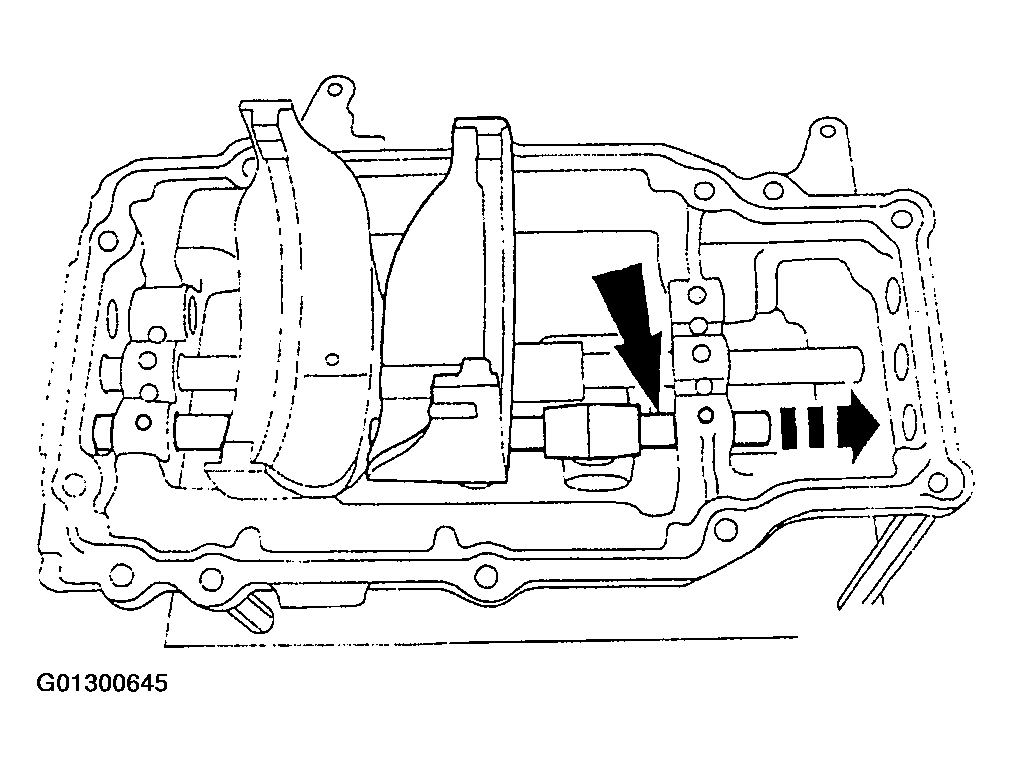

    Fig 9: Removing First/Second Shift Rail
    G01300645Courtesy of FORD MOTOR CO.
  10. Use the spring pin bore to remove the third/fourth shift rail.

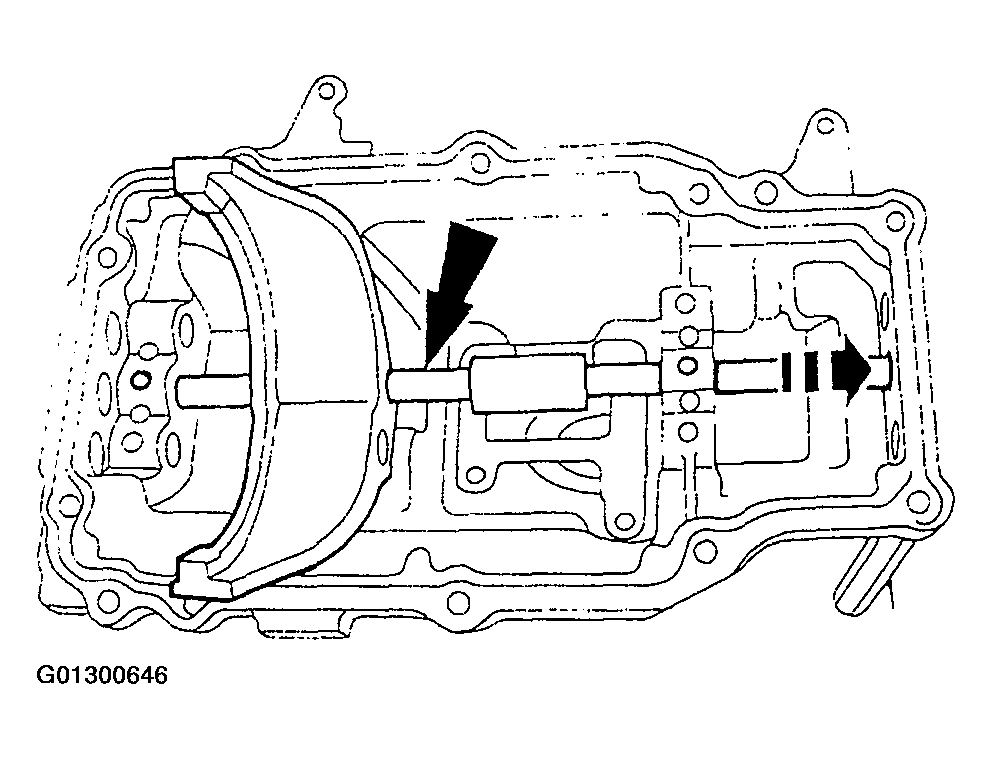

    Fig 10: Removing Third/Fourth Shift Rail
    G01300646Courtesy of FORD MOTOR CO.
  11. Remove the gear selector interlock sleeve.
    1. Remove the bolts.
    2. Remove the gear selector interlock sleeve.

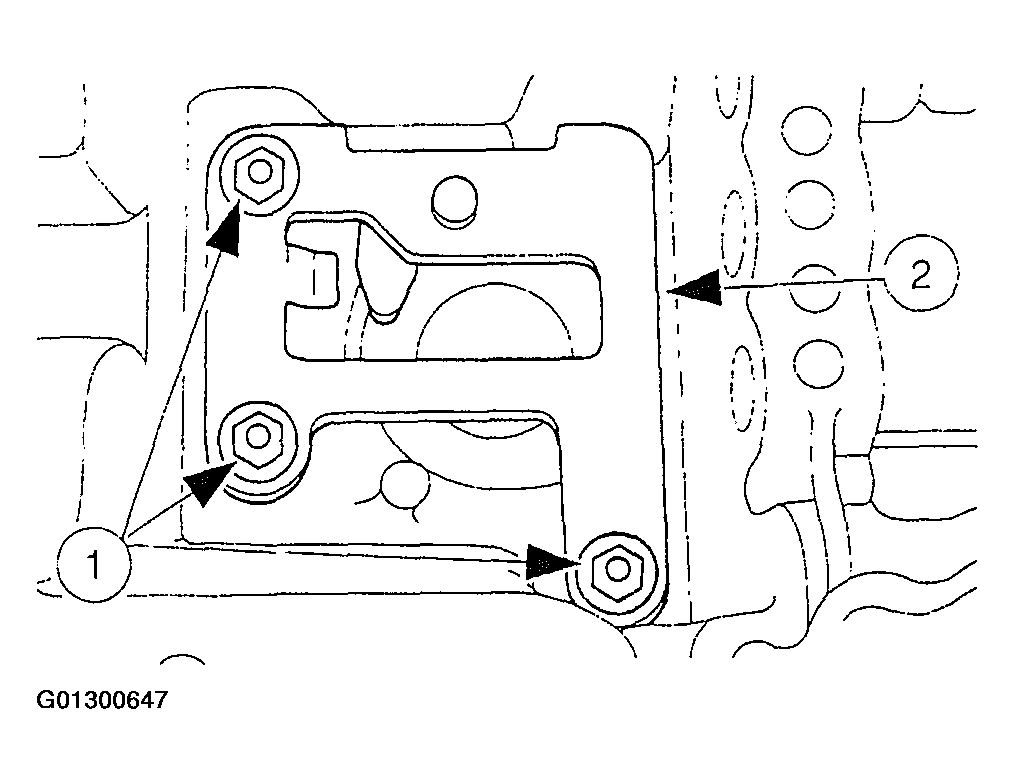

    Fig 11: Removing Gear Selector Interlock Sleeve
    G01300647Courtesy of FORD MOTOR CO.
