Input Shaft Bearing: Disassembly

  1. Inspect the input shaft bearing for wear or damage. See BEARINGS .
  2. Inspect the input shaft for damage or wear.
    CAUTION: To prevent damage, inspect the surface of the input shaft in the area of the bearing race to make sure it is smooth and free of burrs.
  3. Remove and discard the front bearing oil scoop ring.

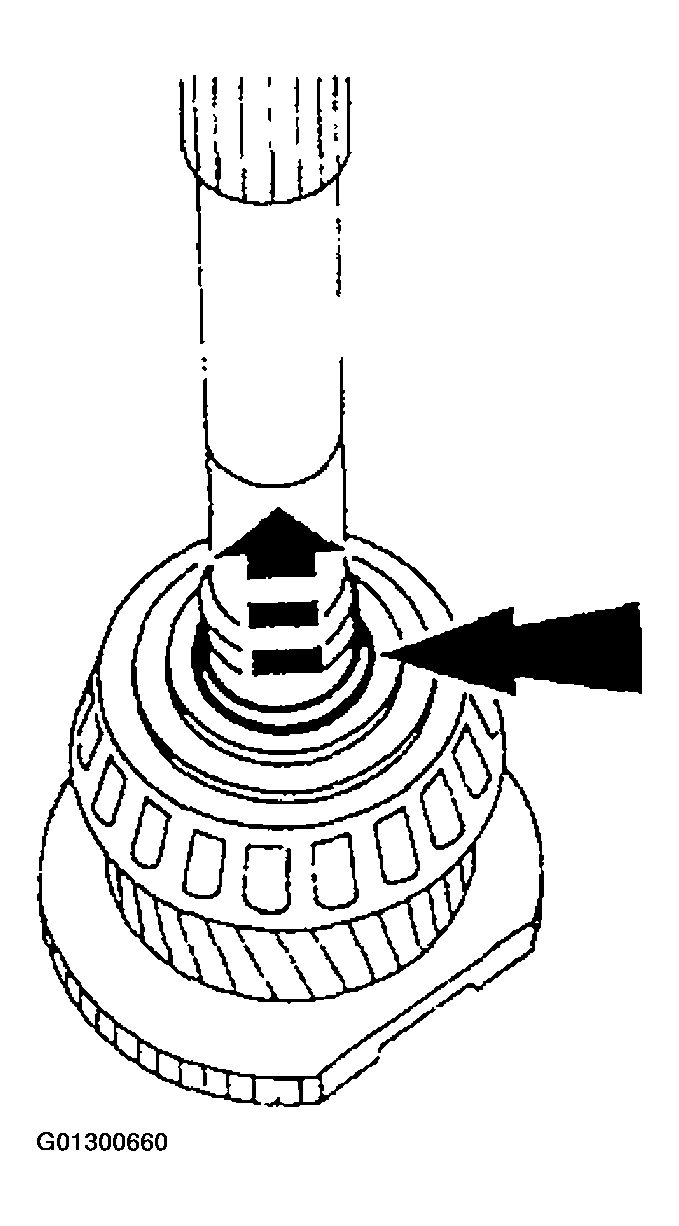

    Fig 1: Removing Front Bearing Oil Scoop Ring
    G01300660Courtesy of FORD MOTOR CO.
  4. Using the special tool, press the input shaft bearing from the input shaft.
    CAUTION: Hold the input shaft so it does not fall.
    NOTE: Remove the input shaft bearing only if installing a new one.

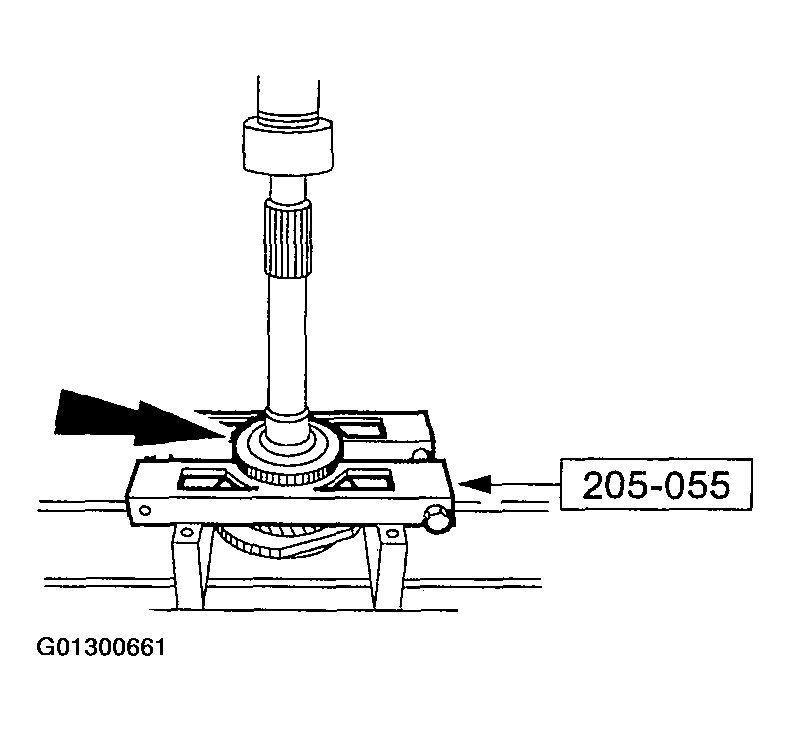

    Fig 2: Pressing Input Shaft Bearing From Input Shaft
    G01300661Courtesy of FORD MOTOR CO.
