Input Shaft Bearing: Assembly

  1. Using the special tools, press a new bearing on the input shaft.

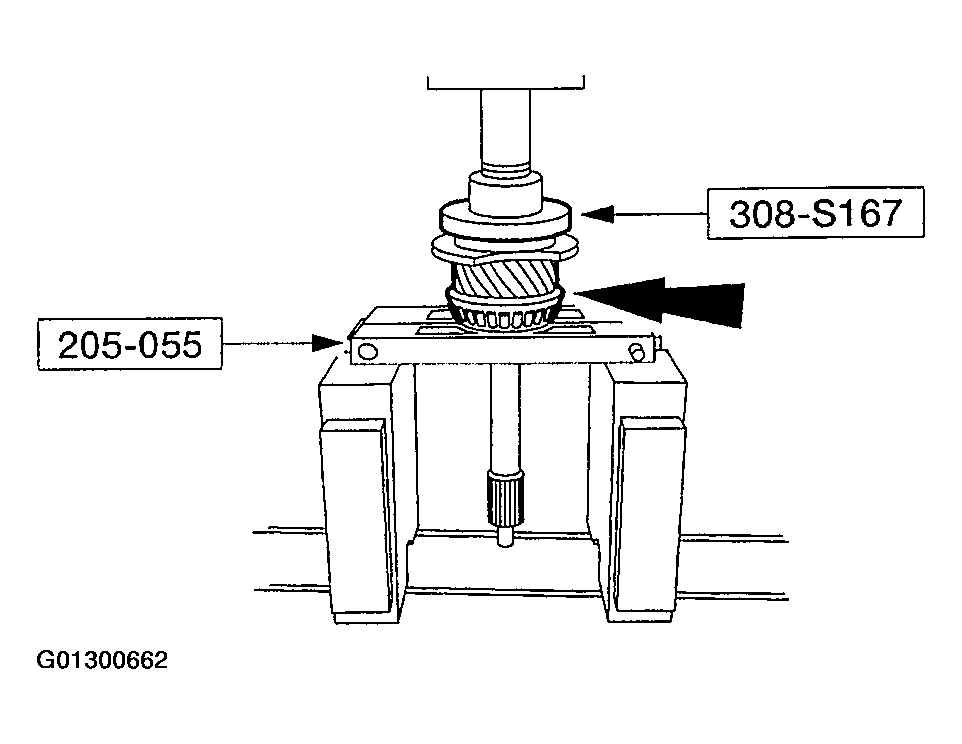

    Fig 1: Pressing New Bearing On Input Shaft
    G01300662Courtesy of FORD MOTOR CO.
  2. Install the front bearing oil scoop ring.
    • A click should be felt as the scoop ring notches align with the input shaft oil holes.

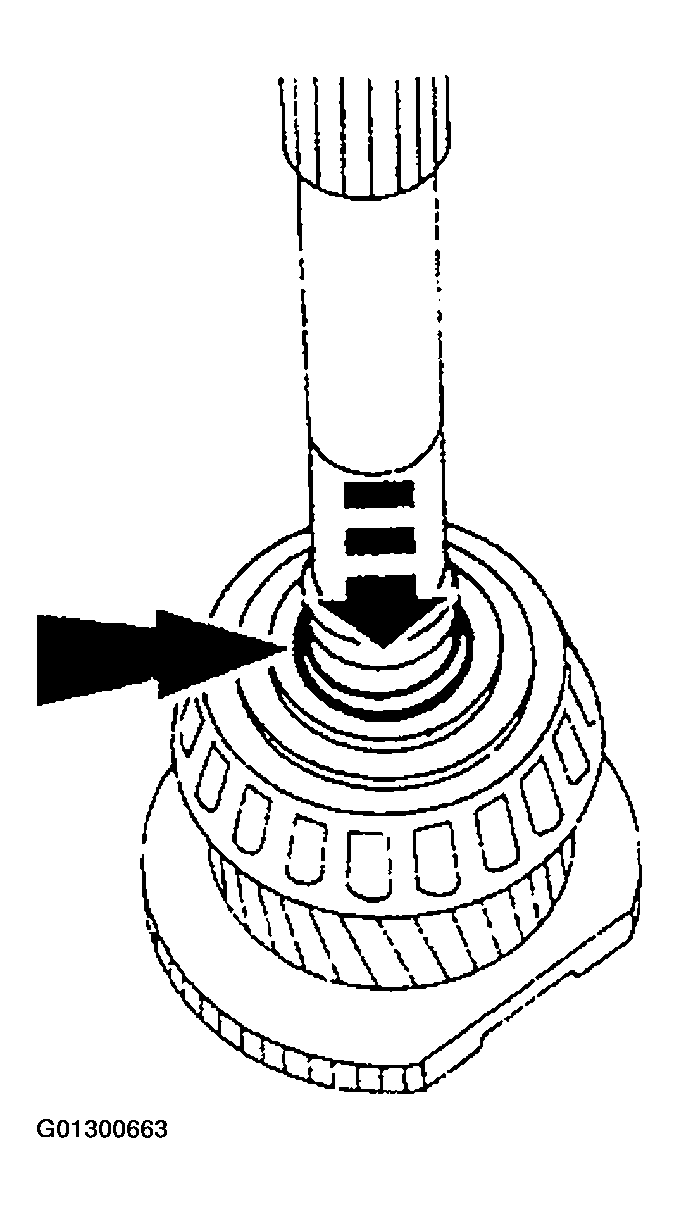

    Fig 2: Installing Front Bearing Oil Scoop Ring
    G01300663Courtesy of FORD MOTOR CO.
