Toe Adjustment

Start the engine (6007) and center the steering wheel (3600).

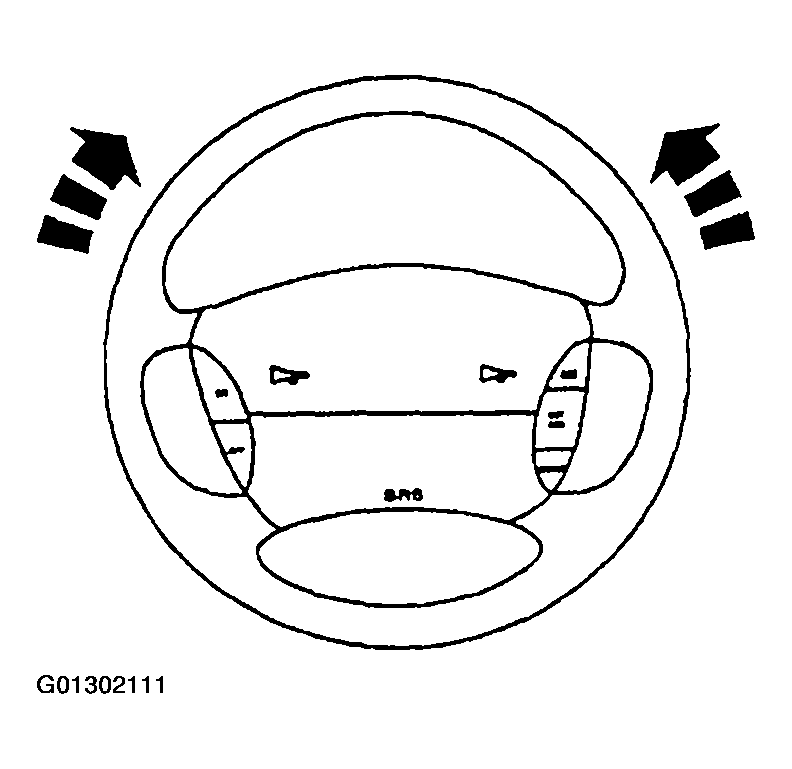

Fig 1: Centering Steering Wheel
Courtesy of FORD MOTOR CO.
Turn the engine off, and hold the steering wheel in the "straight forward " position by attaching a rigid link from the steering wheel to the brake pedal.
Check the toe settings; follow the manufacturer's instructions.
Remove the clamps.
NOTE: Do not allow the steering gear bellows to twist when the front wheel spindle tie-rod (3280) is rotated.

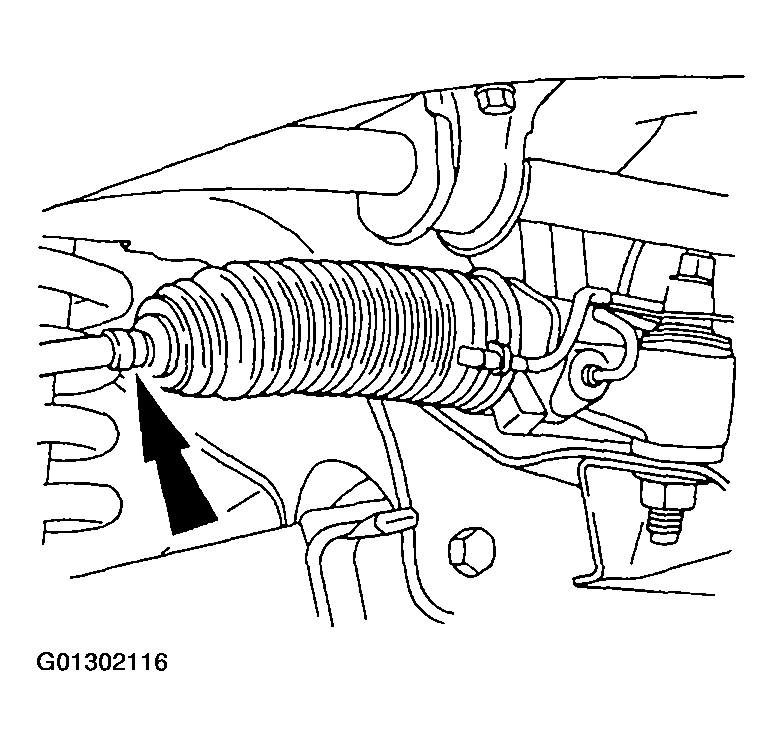

Fig 2: Removing Clamps
Courtesy of FORD MOTOR CO.
Loosen the nuts.
- Clean and lubricate the nut(s) and front wheel spindle tie-rod threads.

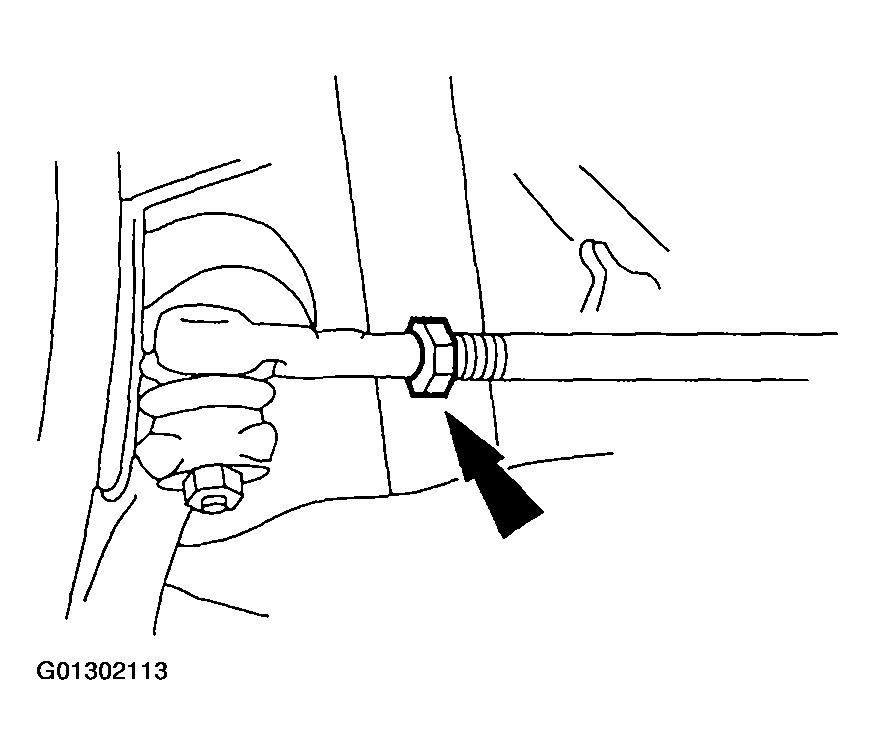

Fig 3: Locating Front Wheel Spindle Tie-Rod Nut
Courtesy of FORD MOTOR CO.
Rotate the front wheel spindle tie-rods.

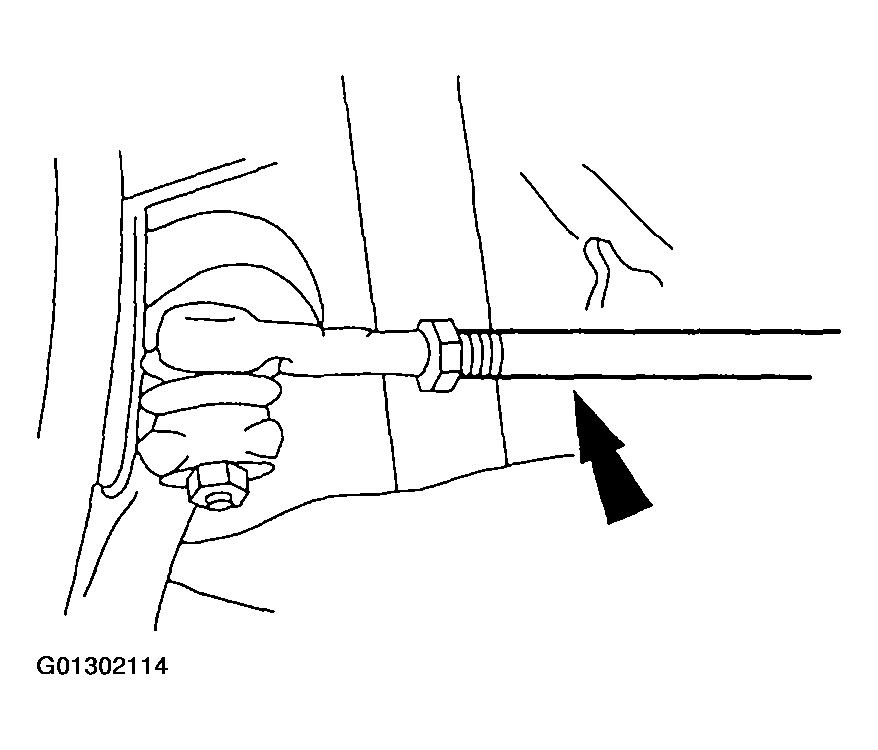

Fig 4: Locating Front Wheel Spindle Tie-Rod
Courtesy of FORD MOTOR CO.
Tighten the nuts.

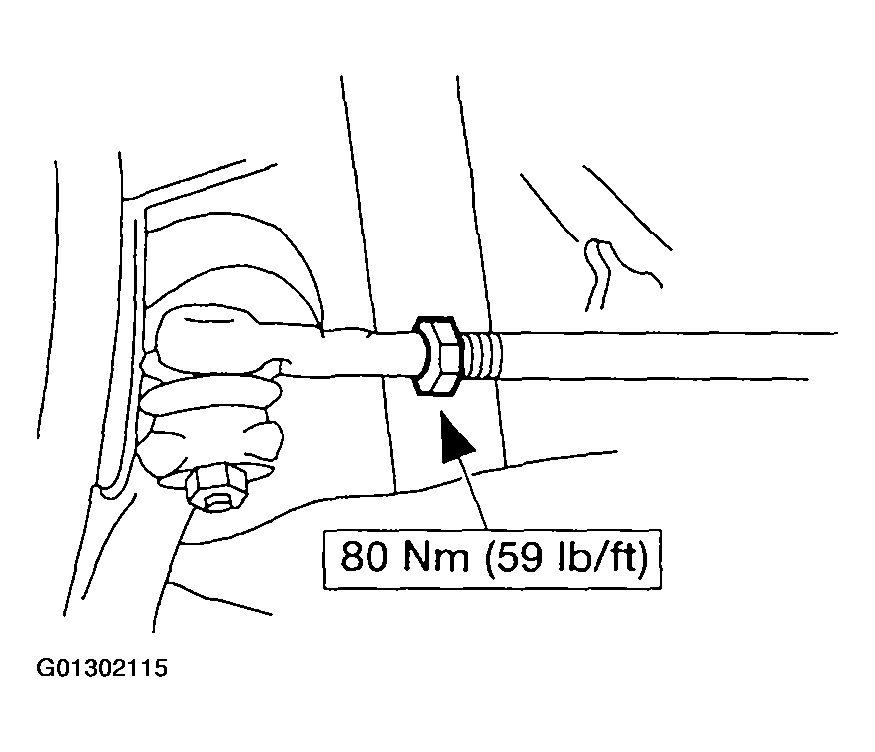

Fig 5: Identifying Tightening Torque Of Front Wheel Spindle Tie-Rod Nut
Courtesy of FORD MOTOR CO.
Install the clamps.

Fig 6: Installing Clamps
Courtesy of FORD MOTOR CO.
Recheck the toe settings; follow the manufacturer's instructions.
