Home
>>
Ford
>>
2003
>>
Explorer Sport 4.0 E, RWD, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
Fuel Delivery
>>
Fuel Tank & Lines
>>
Specifications
>>
Torque Specifications
Torque Specifications

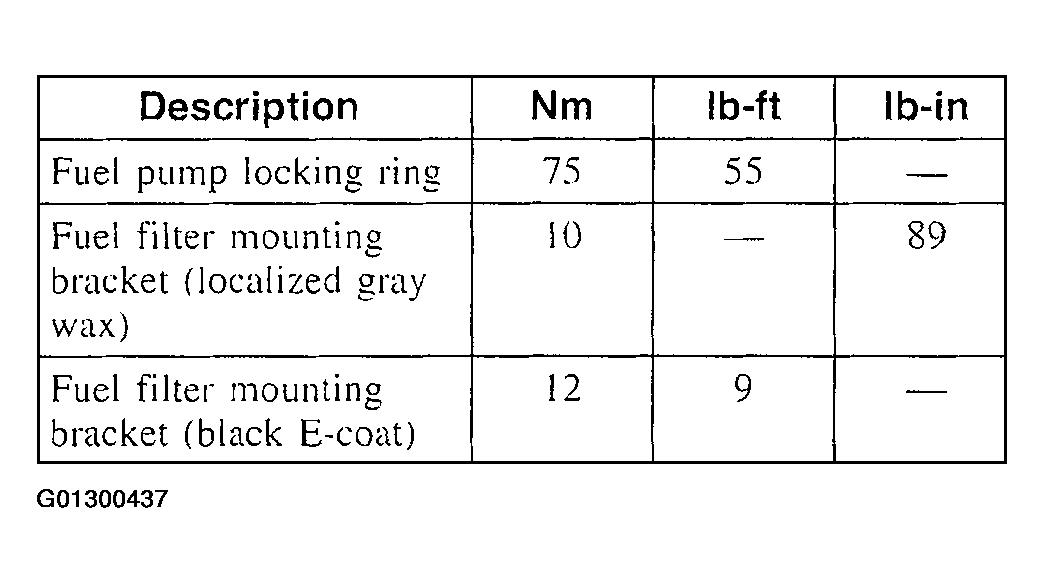

Fig 1: Fuel Tank And Lines Torque Specifications (1 Of 2)
Courtesy of FORD MOTOR CO.

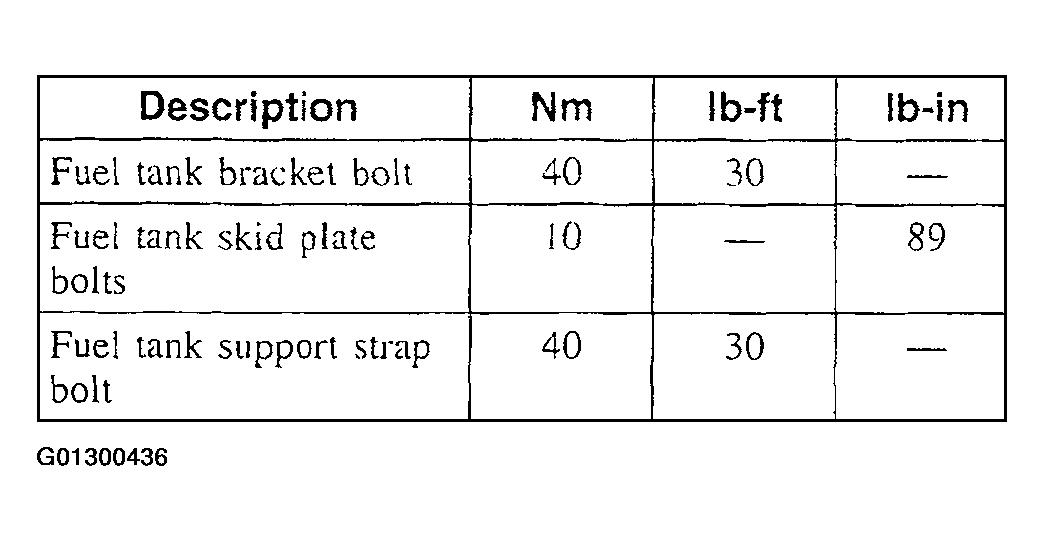

Fig 2: Fuel Tank And Lines Torque Specifications (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
