Fittings - Push Connect: Connect

  1. Align the tube to the fitting and push until you hear a click.

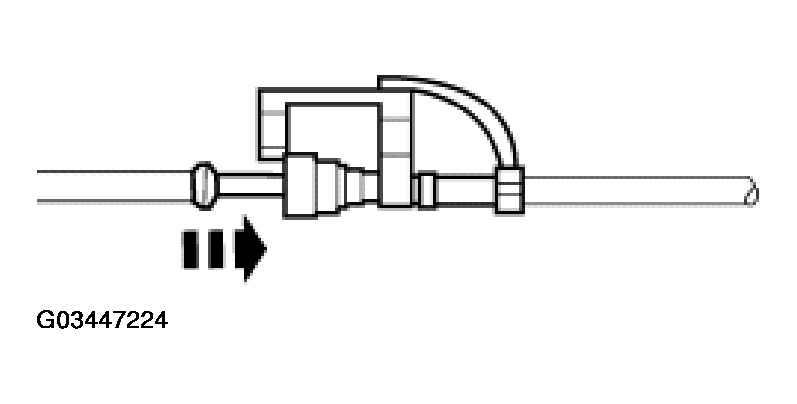

    Fig 1: Aligning Tube To Fitting
    G03447224Courtesy of FORD MOTOR CO.
  2. Pull on the fitting to make sure it is fully engaged, then install the safety clip.

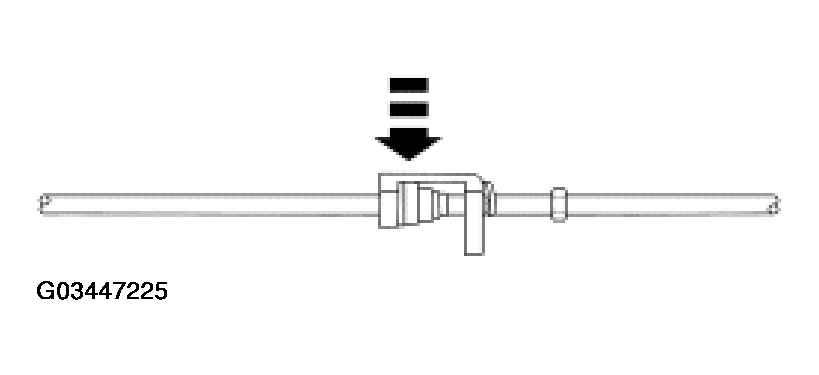

    Fig 2: Installing Safety Clip
    G03447225Courtesy of FORD MOTOR CO.
