Disassembly And Assembly Of Subassemblies: Synchronizers: Disassembly

Disassemble the synchronizer.
NOTE: Mark parts for assembly.
1. Remove the retaining spring.
2. Flip the synchronizer over and remove the opposite retaining spring.
3. Remove the three insert keys.
4. Remove the sleeve.

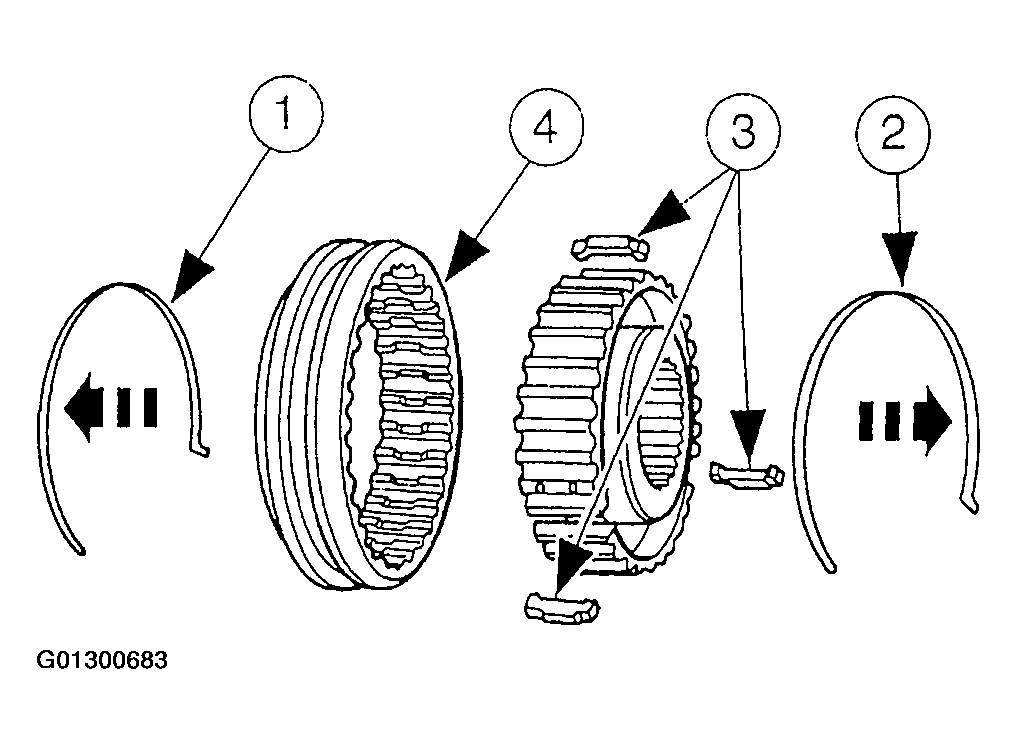

Fig 1: Disassembling Synchronizer
Courtesy of FORD MOTOR CO.
Inspect all the synchronizer components for wear and damage.
