Piston - Pin Diameter

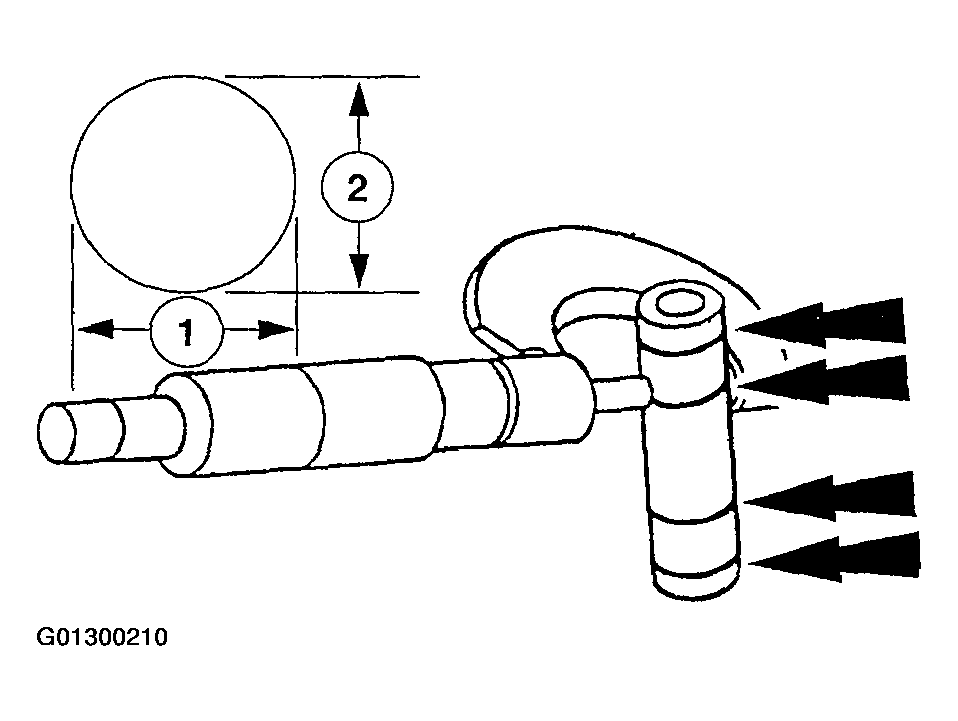

- Measure the piston pin diameter in two directions at the points shown. Verify the diameter is within specification.
- For additional information, refer to SPECIFICATIONS .
- If out of specification, install new components as necessary.
