Piston - Diameter

  1. Measure the piston dome and skirt diameter 90 degrees from the piston pin at the points indicated. For additional information, refer to SPECIFICATIONS .
    • If it is out of specification, install new components as necessary.

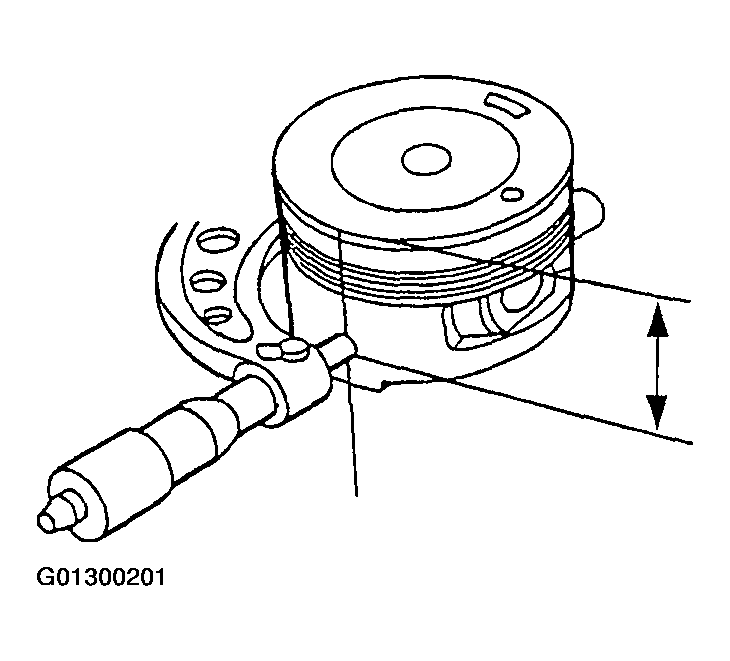

    Fig 1: Measuring Piston Dome And Skirt Diameter
    G01300201Courtesy of FORD MOTOR CO.
