Band And Clutch Application Chart B

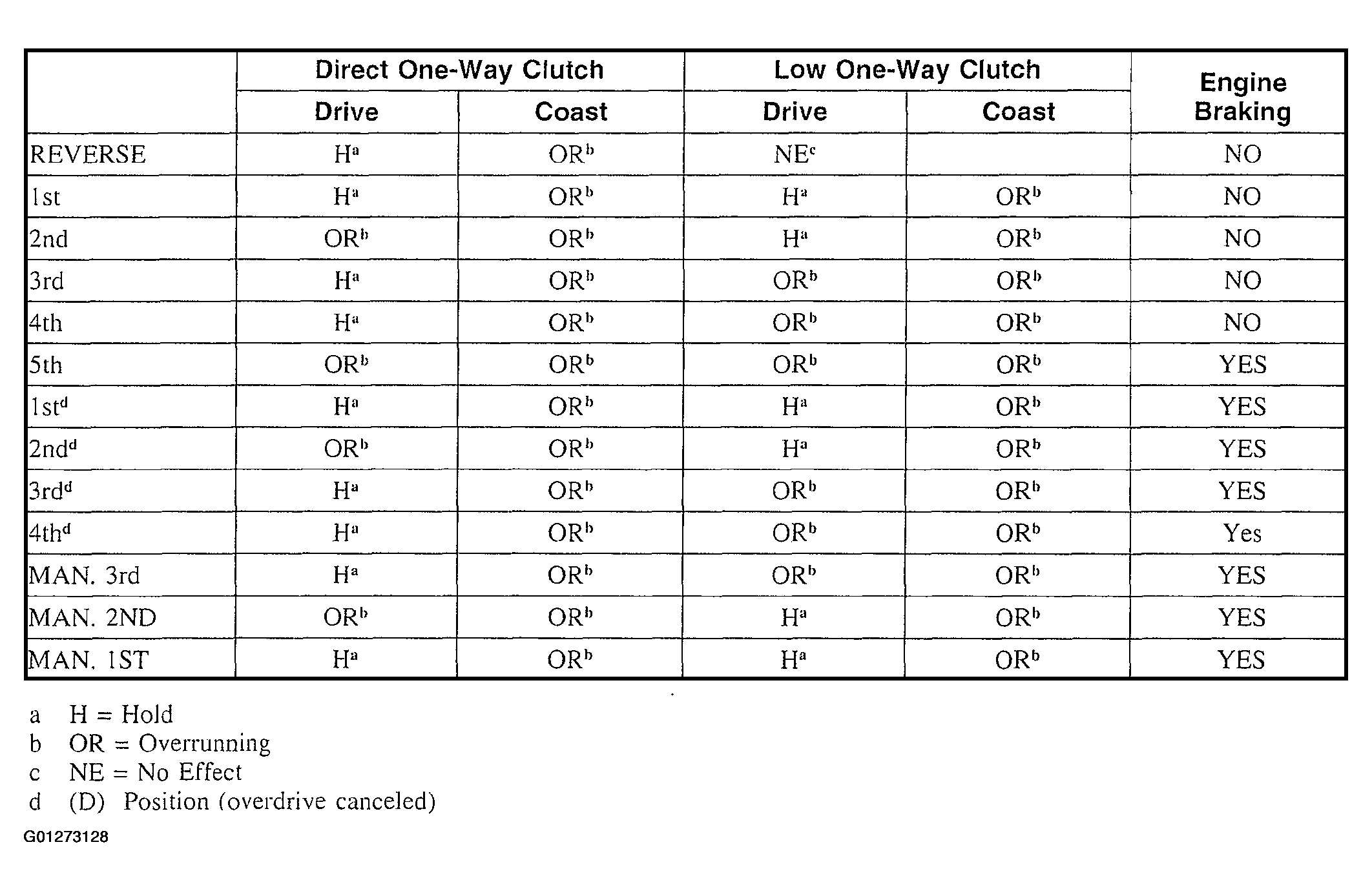

Fig 1: Band and Clutch Application Chart B
G01273128Courtesy of FORD MOTOR CO.
