Home >> Ford >> 2003 >> Explorer 4.6 W, AWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission >> Specifications >> Band And Clutch Application Chart A

Band And Clutch Application Chart A

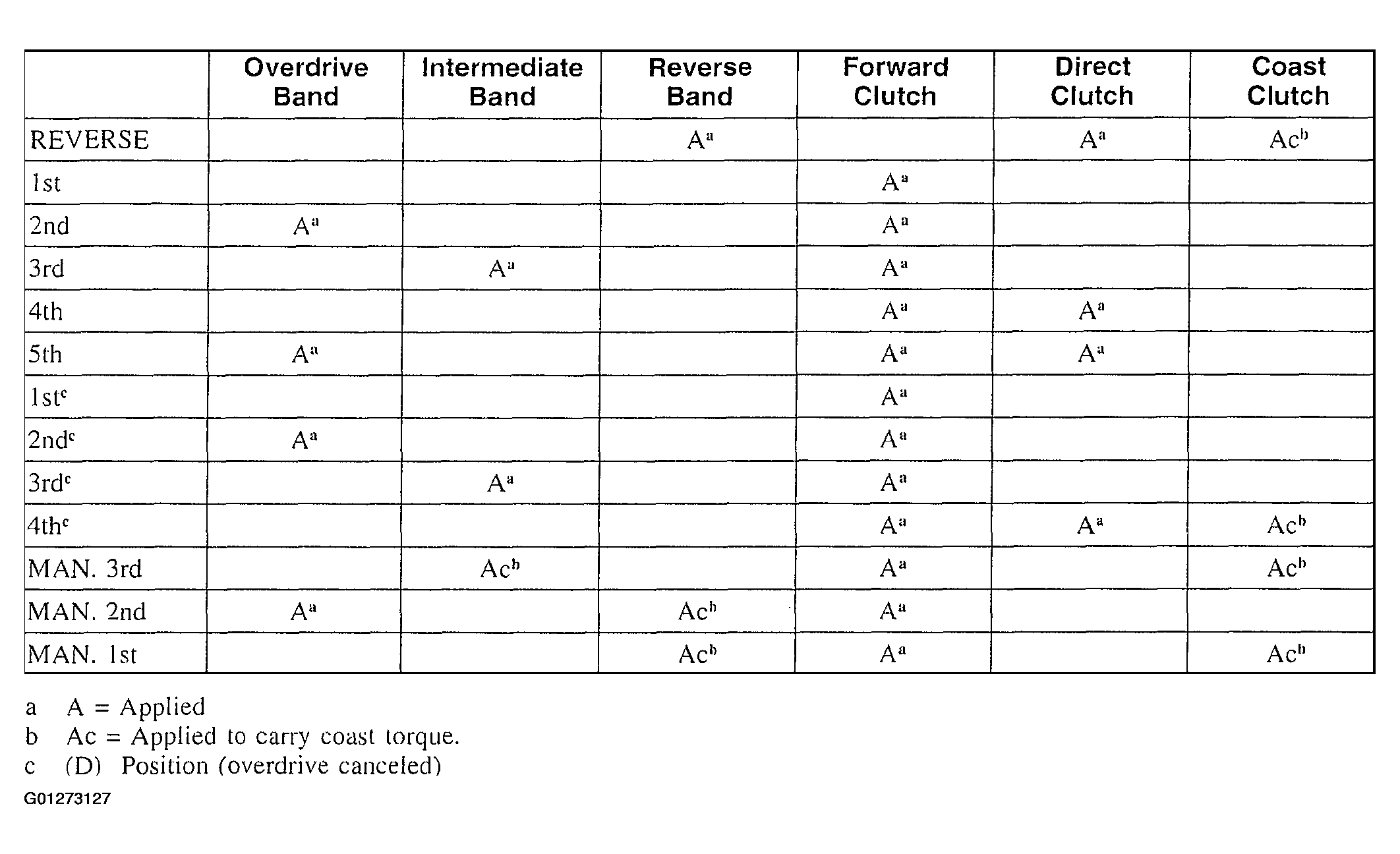

Fig 1: Band And Clutch Application Chart A

G01273127

Courtesy of FORD MOTOR CO.
