Band Adjustment And Torque Chart

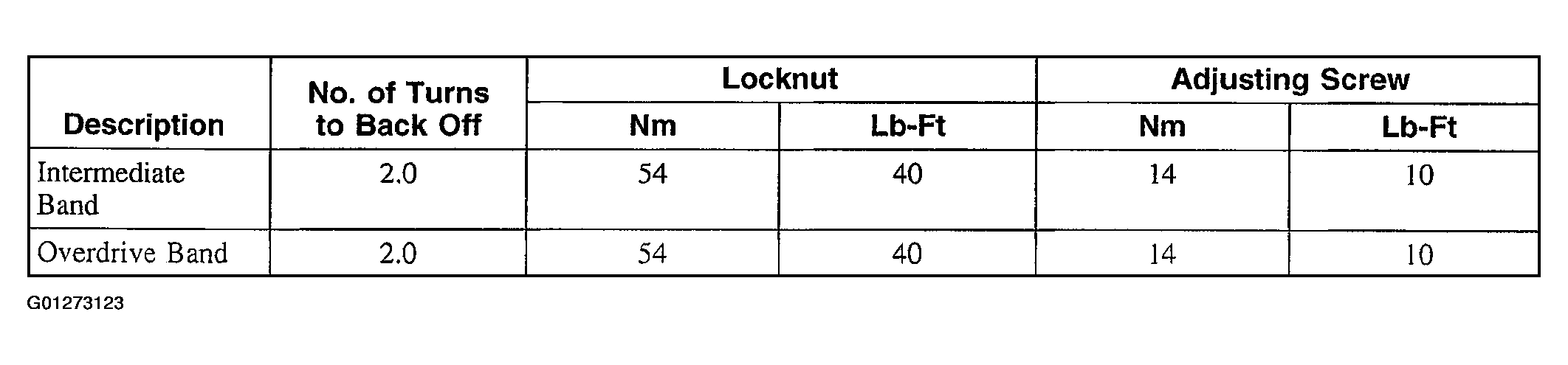

Fig 1: Band Adjustment And Torque Specification Chart

G01273123

Courtesy of FORD MOTOR CO.
