Item 5: Retaining Ring Assembly Note

    CAUTION: Do not fully depress the clutch spring compressor or damage to the spring retainer may occur.

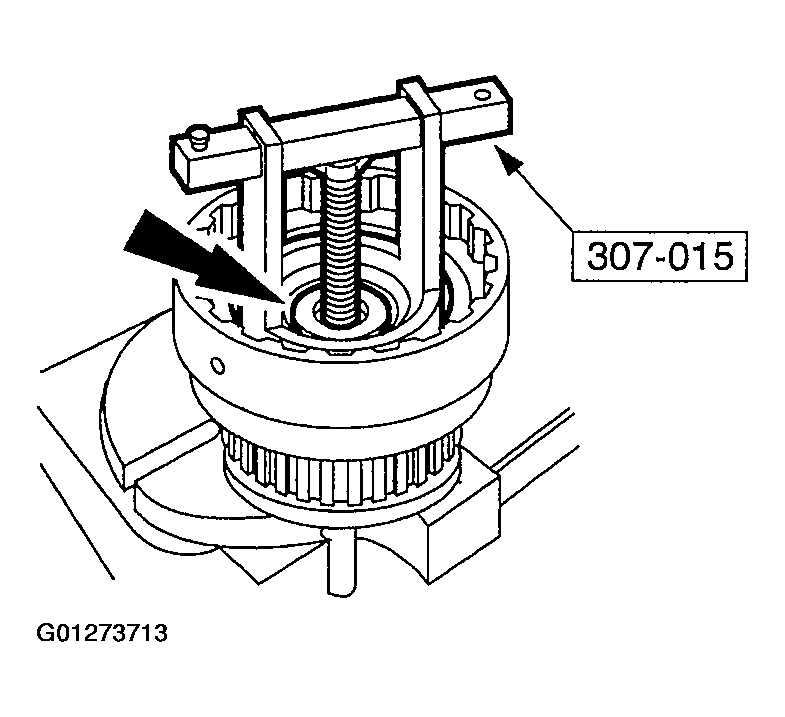

    Fig 1: Installing Forward Clutch Piston Spring Retaining Ring
    G01273713Courtesy of FORD MOTOR CO.
  1. Using the special tool, install the forward clutch piston spring retaining ring.
