Connector Reference

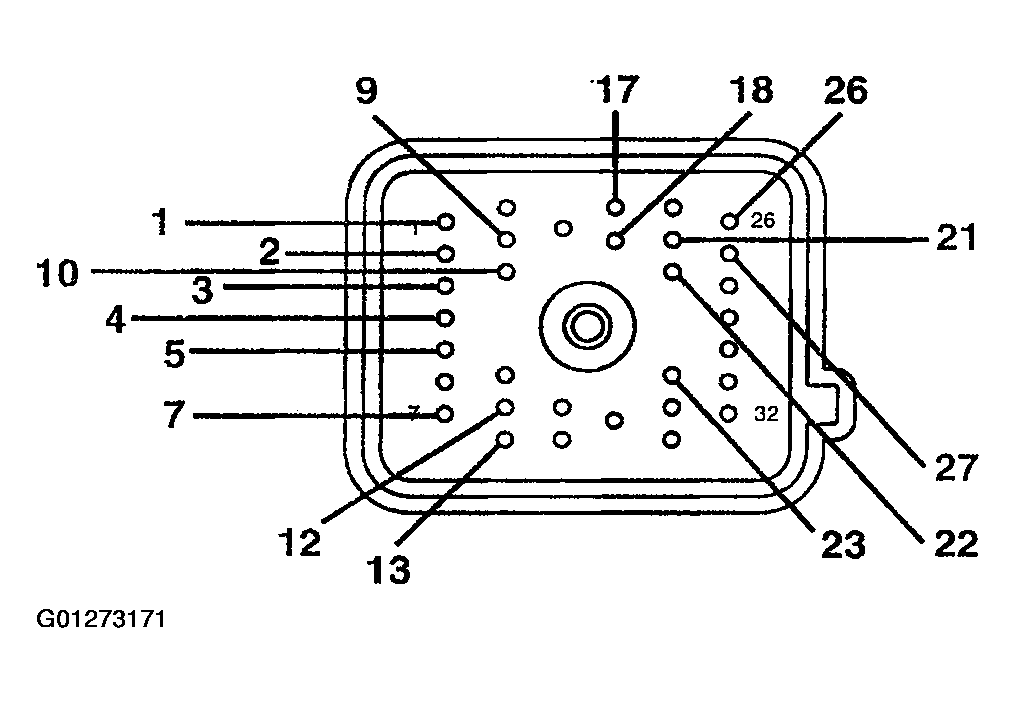

Fig 1: Identifying Powertrain Control Module Connector Pins (1 Of 3)
G01273171Courtesy of FORD MOTOR CO.

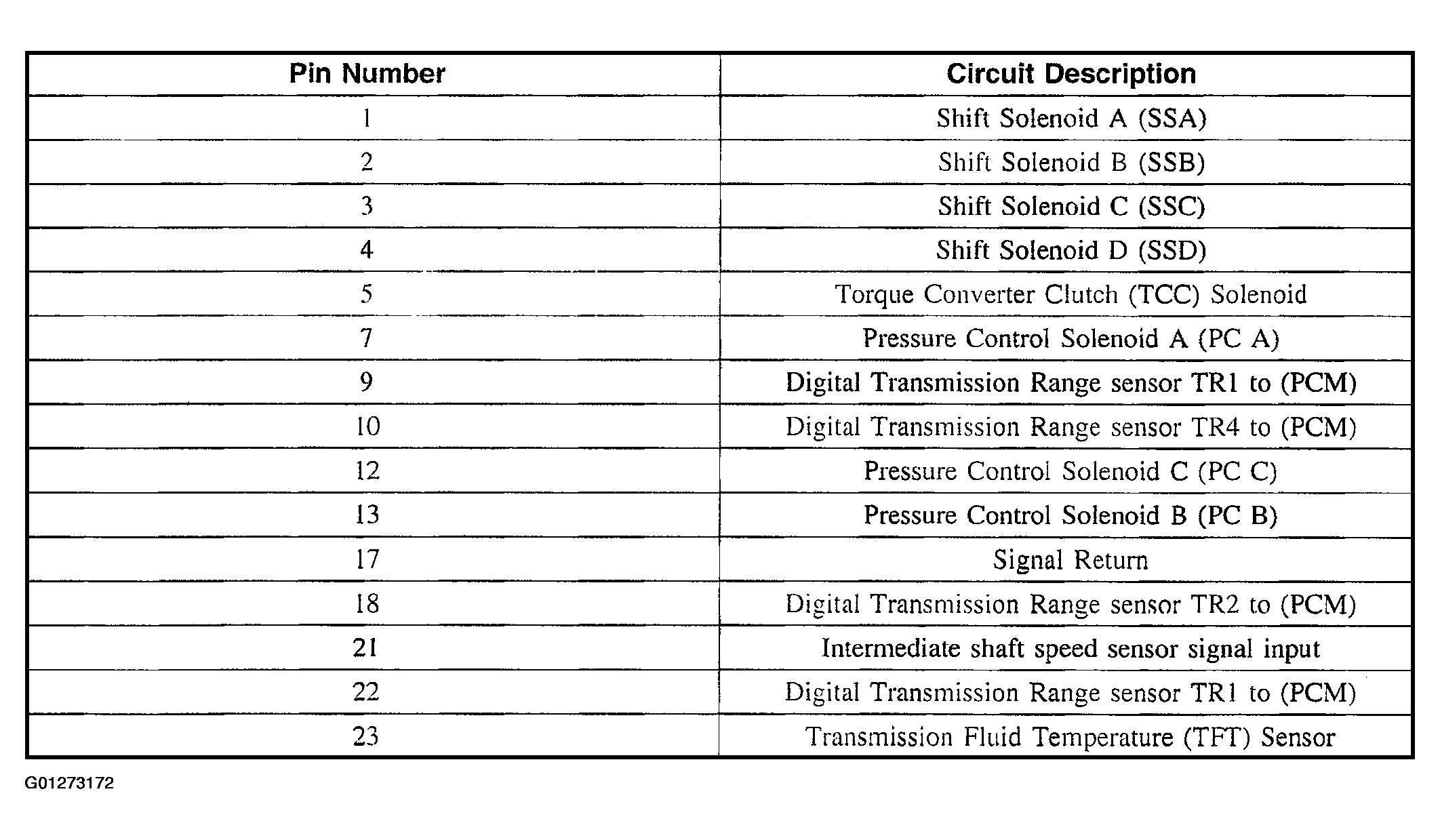

Fig 2: Identifying Powertrain Control Module Connector Pins (2 Of 3)
G01273172Courtesy of FORD MOTOR CO.

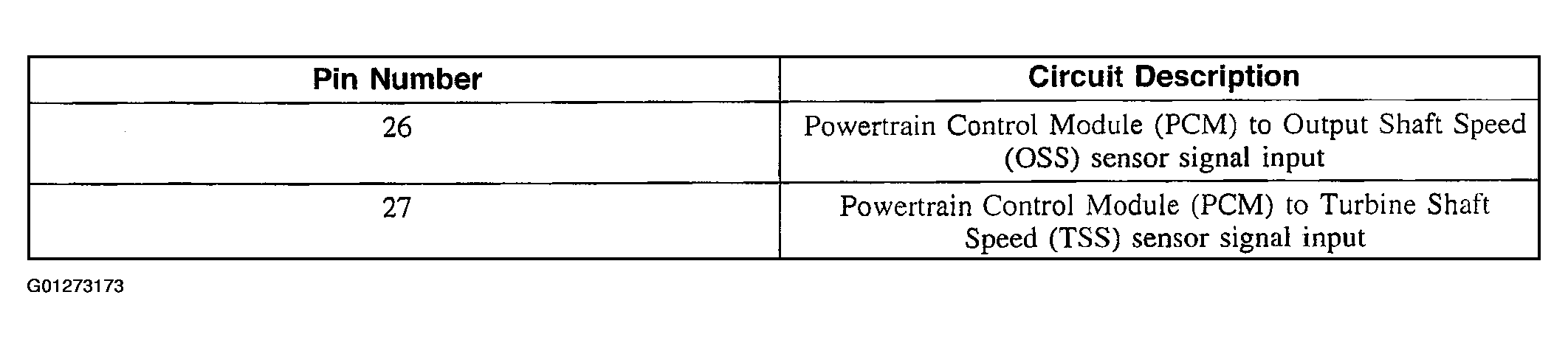

Fig 3: Identifying Powertrain Control Module Connector Pins (3 Of 3)
G01273173Courtesy of FORD MOTOR CO.
