Rear Camber Adjustment

NOTE: The lower arm rearward mounting bolt has a set shim that must be removed and replaced with a washer (W-705040-S426) to allow for the adjustment of the arm in the frame slot.

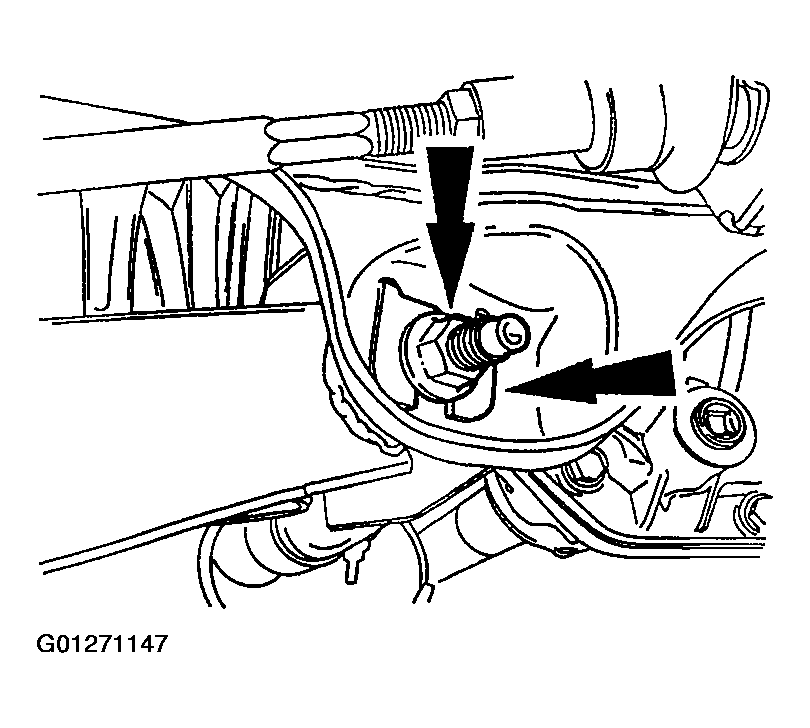

Fig 1: Removing Nut And Set Shim

Courtesy of FORD MOTOR CO.

Remove the nut and the set shim.
- Discard the nut and set shim.
  - Install the washer (W-705040-S426) and the nut and snug the nut.

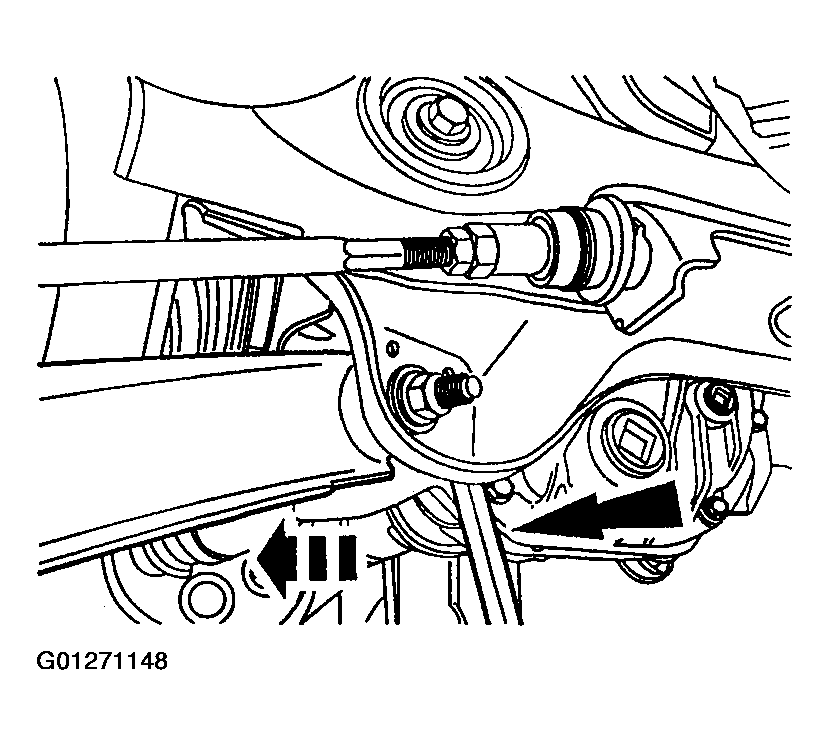

NOTE: A prybar may be used between the lower arm and the frame pocket to aid in moving the arm outward.

Fig 2: Decreasing Camber

Courtesy of FORD MOTOR CO.

To decrease the camber, move the lower arm outward.

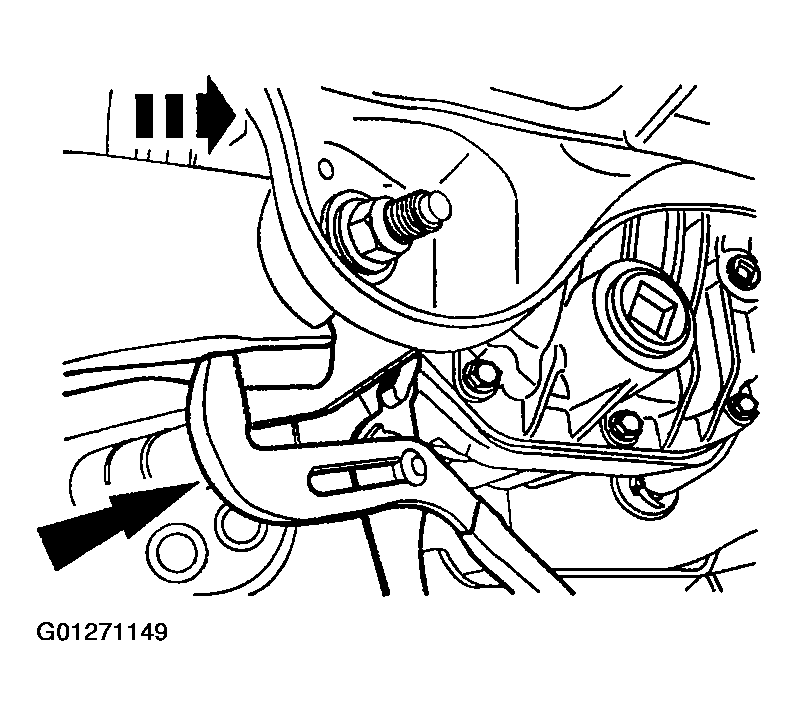

NOTE: Adjustable pliers may be used to aid in moving the arm inward.

Fig 3: Increasing Camber

Courtesy of FORD MOTOR CO.

To increase the camber, move the lower arm inward.

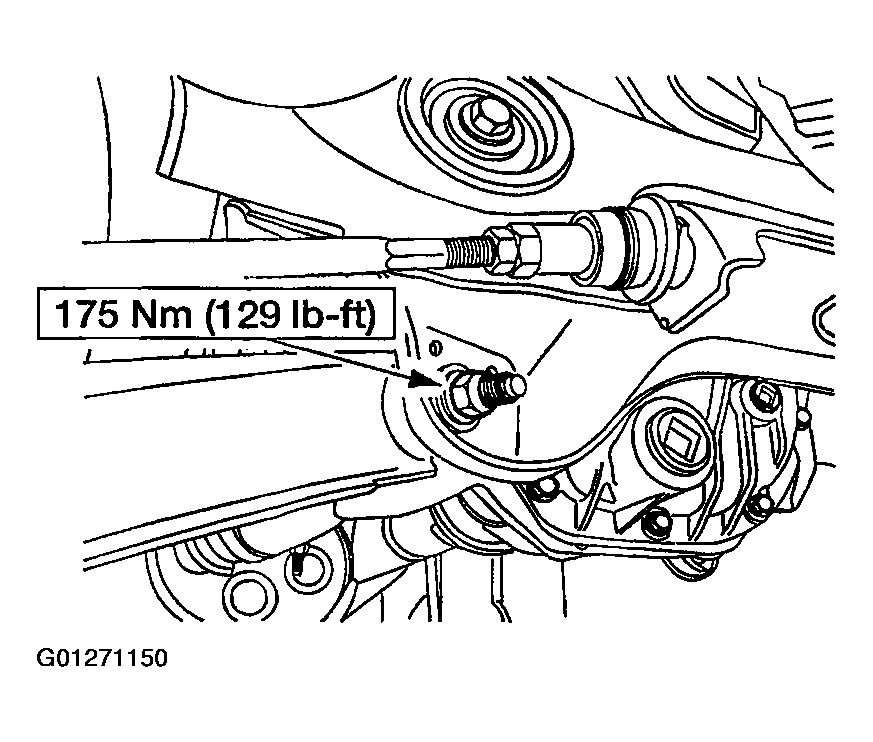

Tighten the nut.

Fig 4: Tightening Nut
Courtesy of FORD MOTOR CO.
Check and, if necessary, adjust the rear toe.
