Multifunction Switch, Wiper/Washer Portion

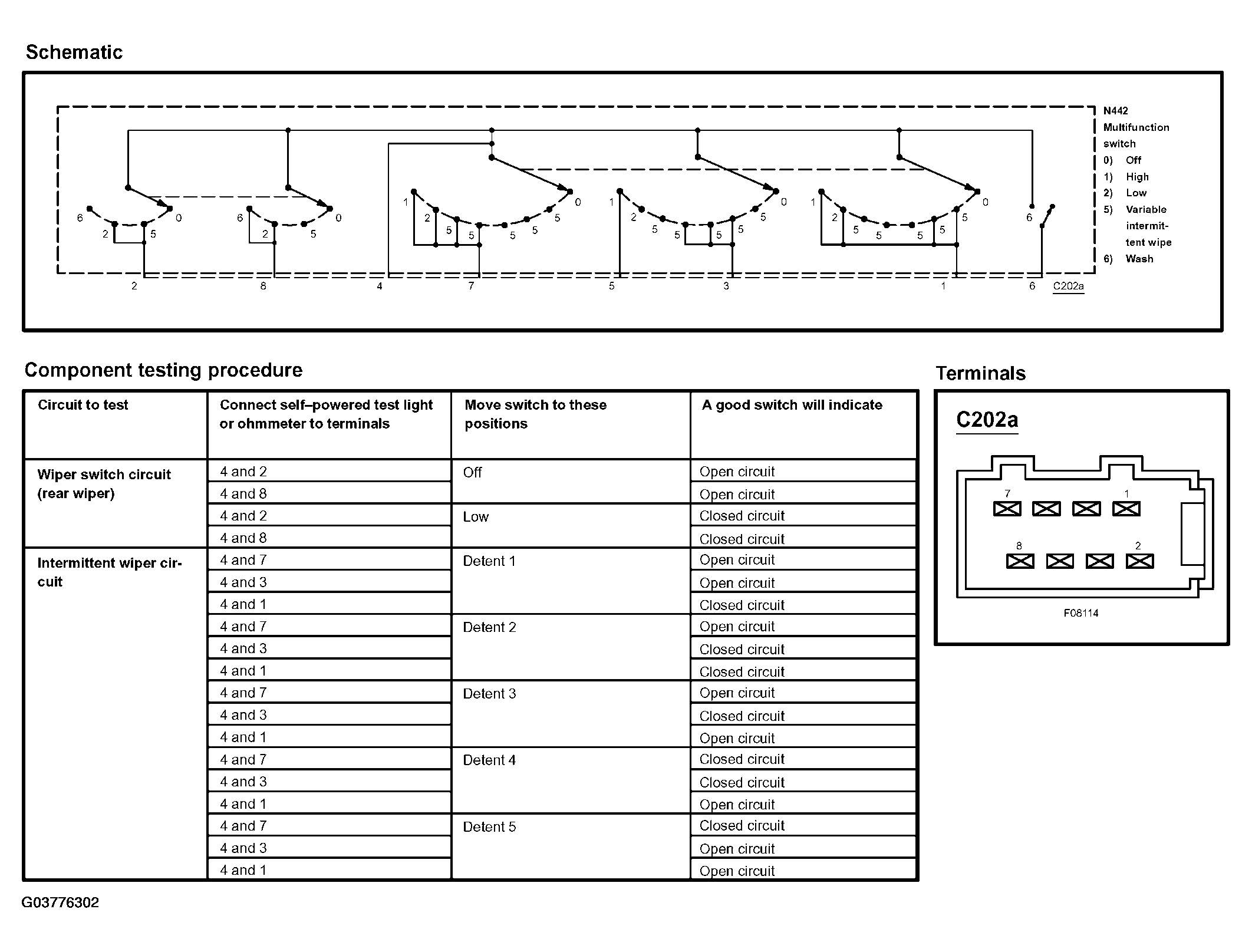

Fig 1: Testing Multifunction Switch - Wiper/Washer Portion

G03776302

Courtesy of FORD MOTOR CO.
