Item 78: Transmission Fluid Pan Assembly Note

  1. Install the transmission fluid pan and loosely install the screws.

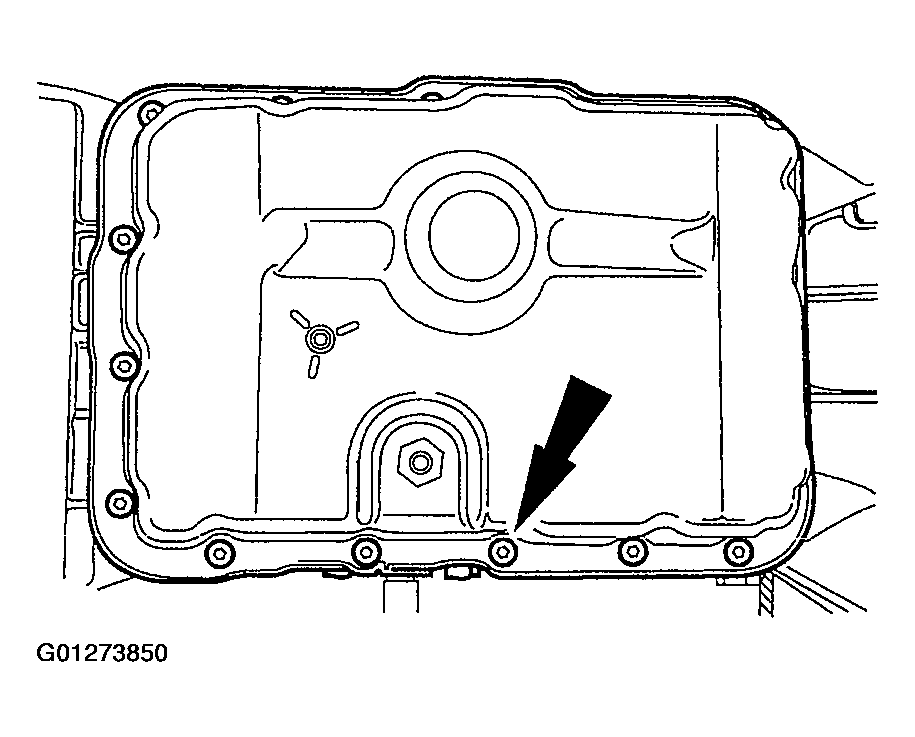

    Fig 1: Installing Transmission Fluid Pan And Loosely Installing Screws
    G01273850Courtesy of FORD MOTOR CO.
