Disassembly And Assembly Of Subassemblies: Piston: Disassembly: Notes
WARNING: This page is about a different variant/trim than selected.

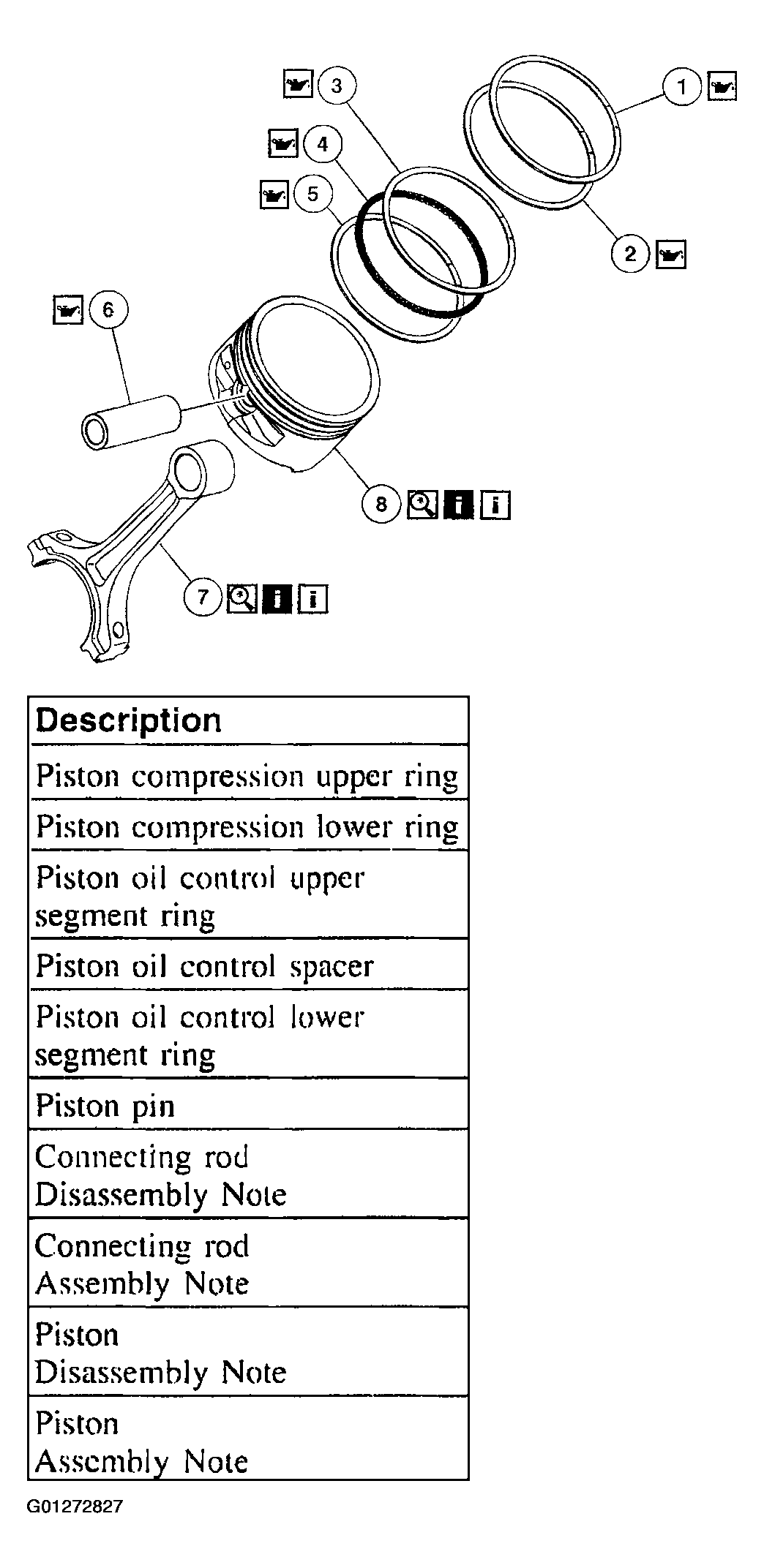

- Remove the components in the order indicated in the following illustration and table.
Courtesy of FORD MOTOR CO.
- To assemble, reverse the disassembly procedure.
