Items 8-7: Connecting Rod and Piston Assembly Note

WARNING: This page is about a different variant/trim than selected.

Lubricate the piston pin and piston pin bore with clean engine oil.

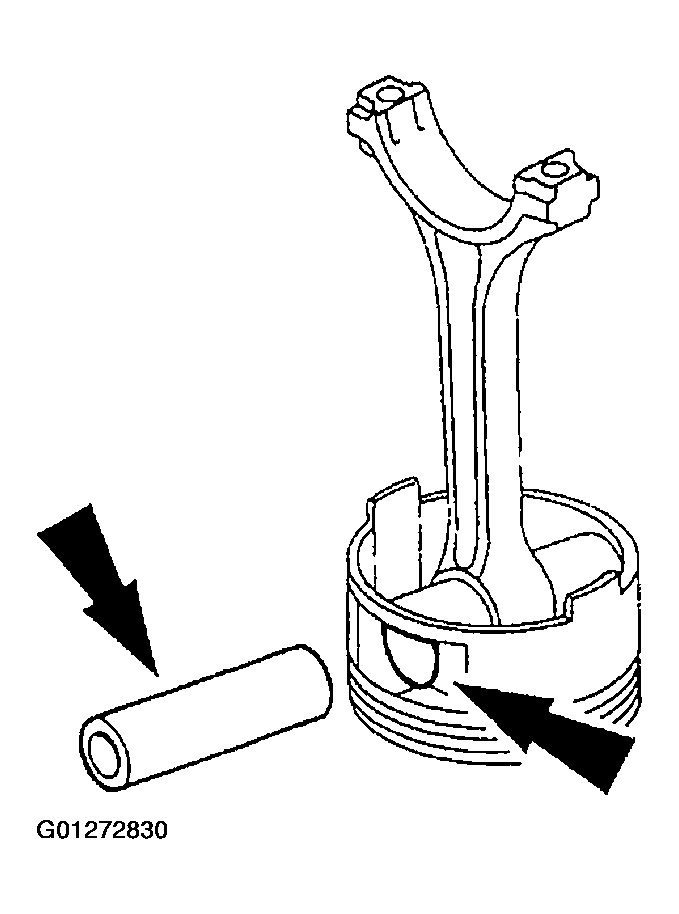

Fig 1: Locating Piston Pin And Piston Pin Bore Lubrication Points
Courtesy of FORD MOTOR CO.

NOTE: The connecting rod must be installed into the piston with identification markings toward the front.

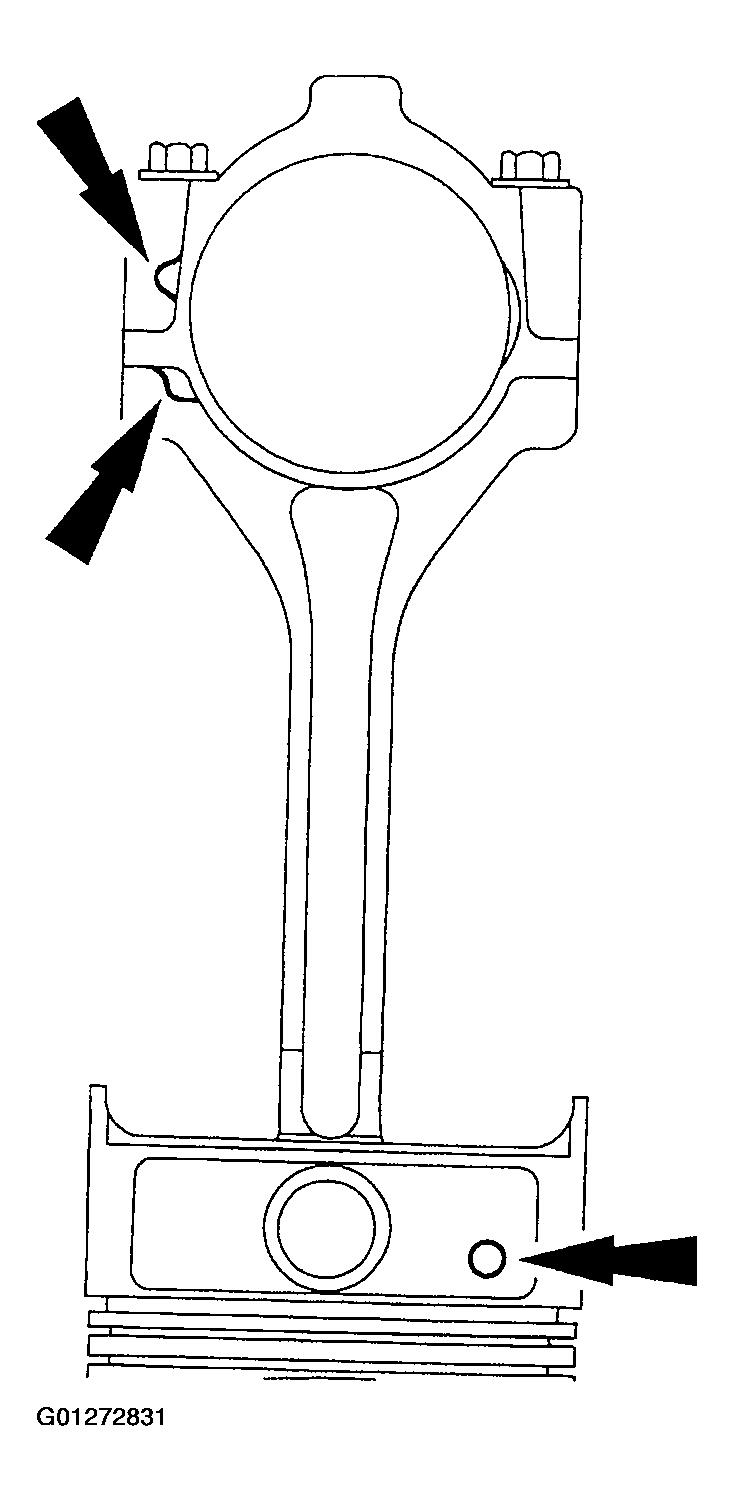

Fig 2: Positioning Connecting Rod In Piston

Courtesy of FORD MOTOR CO.

Position the connecting rod in the piston.
Using the special tool, press the piston pin into the piston and rod assembly.

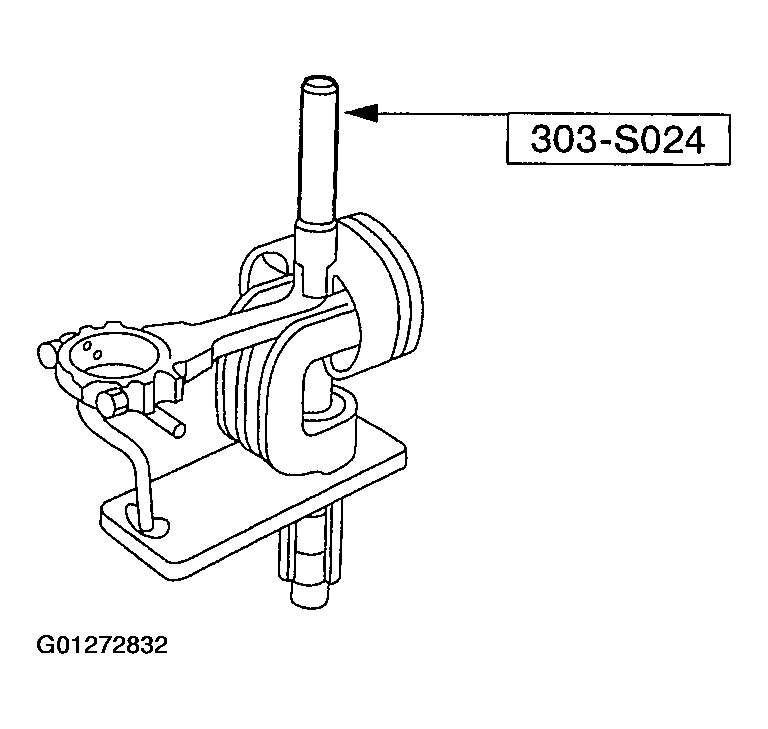

Fig 3: Pressing Piston Pin Into Piston And Rod Assembly
Courtesy of FORD MOTOR CO.
