Cylinder Head: Disassembly: Notes
WARNING: This page is about a different variant/trim than selected.
- Clean and inspect the sealing surfaces. For additional information, refer to ENGINE SYSTEM-GENERAL INFORMATION .

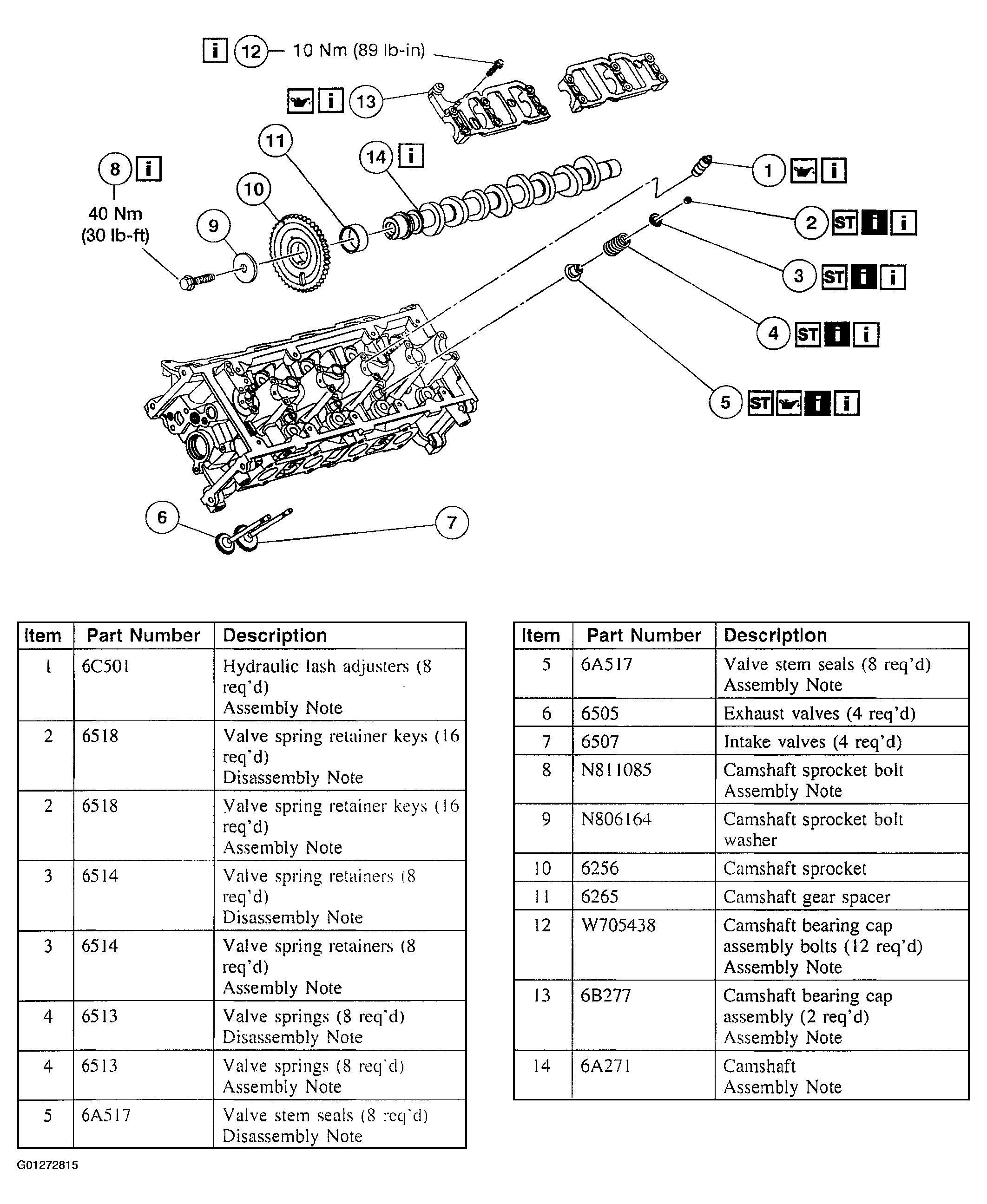

- Remove the components in the order indicated in the following illustration and table.
- To assemble, reverse the disassembly procedure.
CAUTION:
Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean surfaces. These tools cause scratches and gouges which make leak paths.
CAUTION:
Place the cylinder head on a cardboard or wood surface to prevent damage to the joint face.
NOTE:
The hydraulic lash adjusters must be installed in their original locations. Record hydraulic lash adjuster locations.
NOTE:
LH is shown in illustration, RH is similar.
