Section 1 (Engine - 4.6L 2V): Assembly: Engine: Material

WARNING: This page is about a different variant/trim than selected.

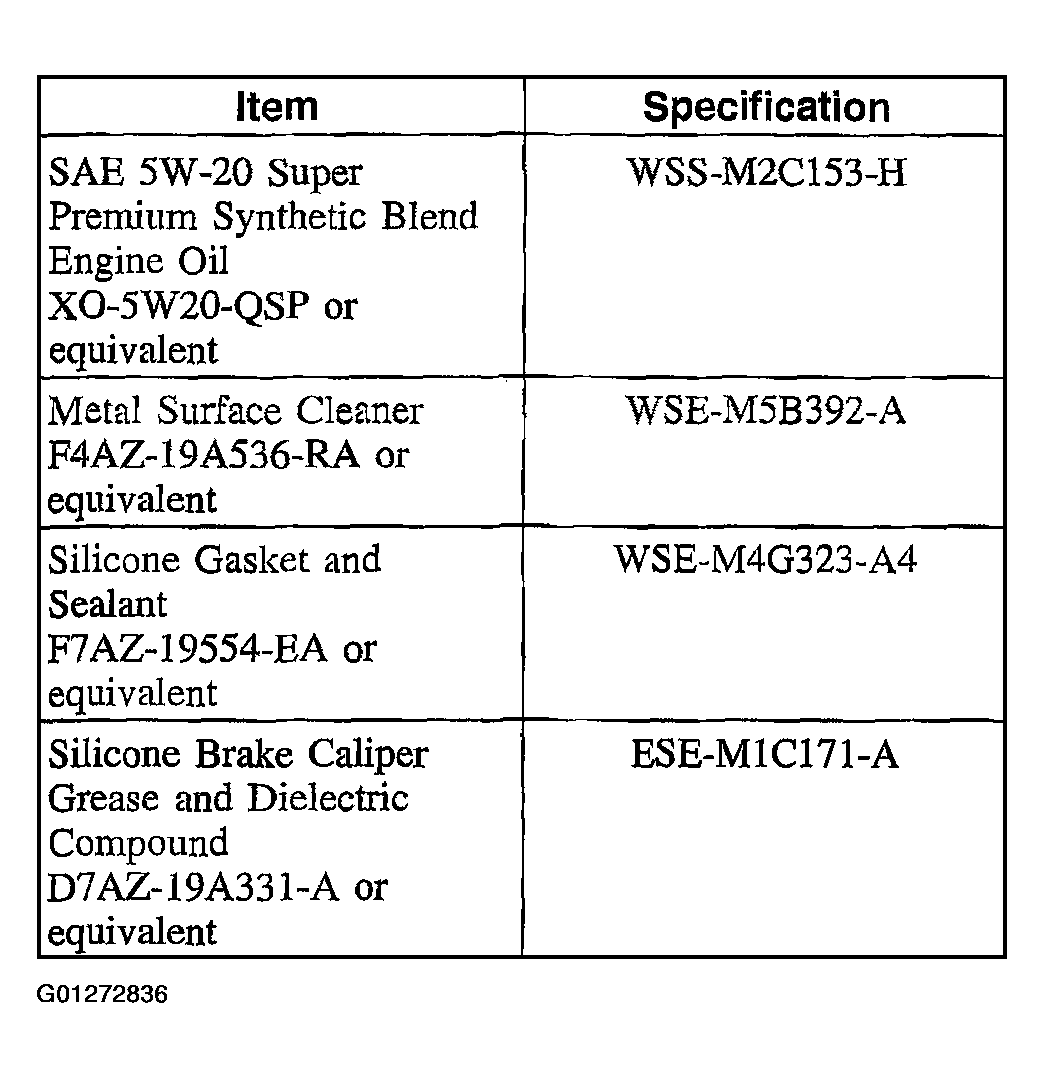

Fig 1: Identifying Material Specifications Index - Engine (1 Of 2)
G01272836Courtesy of FORD MOTOR CO.

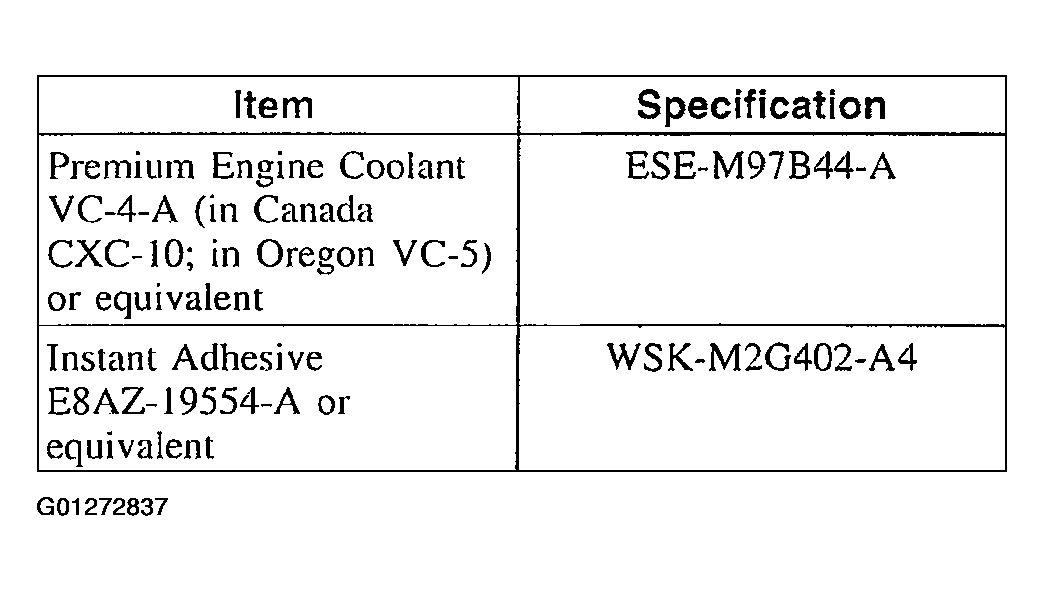

Fig 2: Identifying Material Specifications Index - Engine (2 Of 2)
G01272837Courtesy of FORD MOTOR CO.
