Transmission Insulator And Retainer: Installation

  1. Install the rear transmission mount and the bolts.
    Fig 1: Installing Rear Transmission Mount And The Bolts
    G01564821Courtesy of FORD MOTOR CO.
  2. Lower the transmission onto the crossmember and install the nuts.

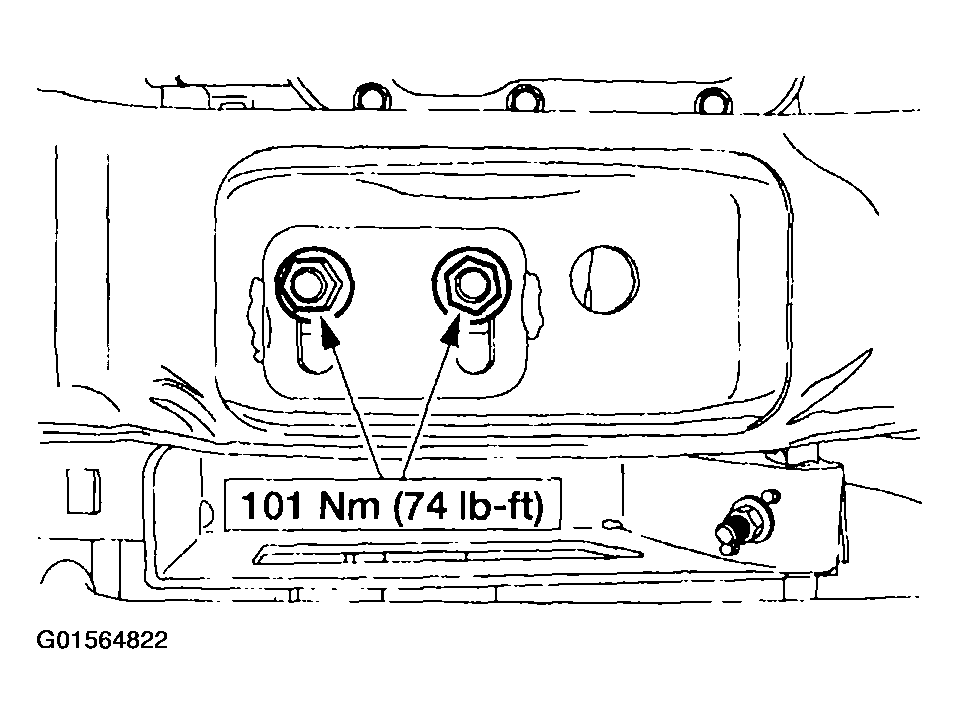

    Fig 2: Lowering The Transmission Onto The Crossmember And Installing The Nuts
    G01564822Courtesy of FORD MOTOR CO.
  3. Remove the high lift transmission jack.
  4. Lower the vehicle.
  5. Connect the battery ground cable.
