1-2 Accumulator: Installation

  1. Install the 1-2 accumulator.
    1. Install the 1-2 accumulator upper spring.
    2. Install the accumulator piston.
    3. Install the inner and outer 1-2 accumulator springs.
    4. Install the cover and seal assembly.

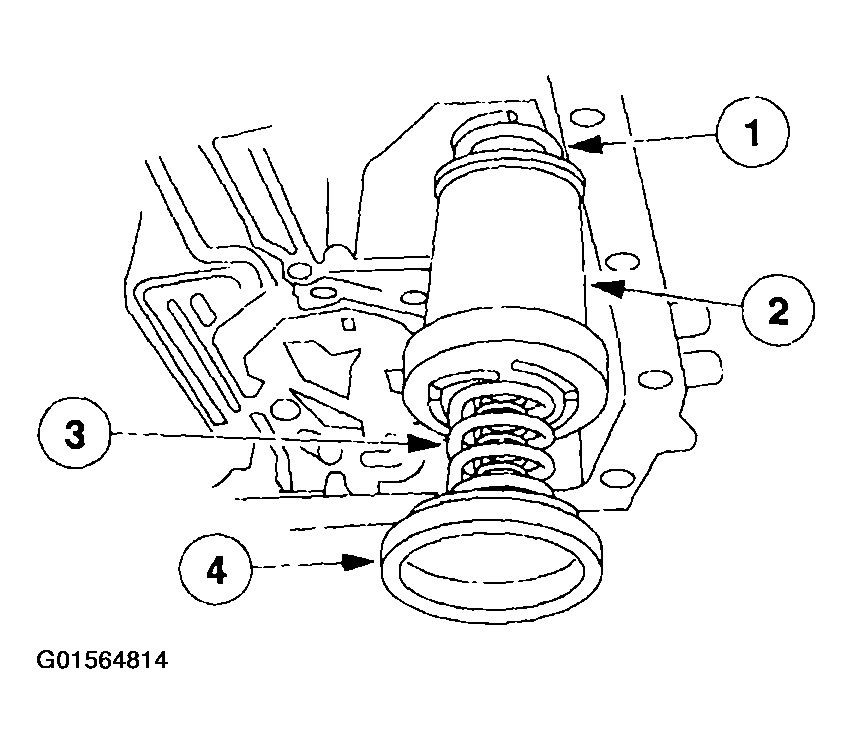

      Fig 1: Installing 1-2 Accumulator
      G01564814Courtesy of FORD MOTOR CO.
  2. Compress the 1-2 accumulator springs and install the accumulator piston retaining ring.
    Fig 2: Compressing The 1-2 Accumulator Springs
    G01564815Courtesy of FORD MOTOR CO.
