Removal and Installation

Remove the in-vehicle temperature and humidity sensor trim cover.

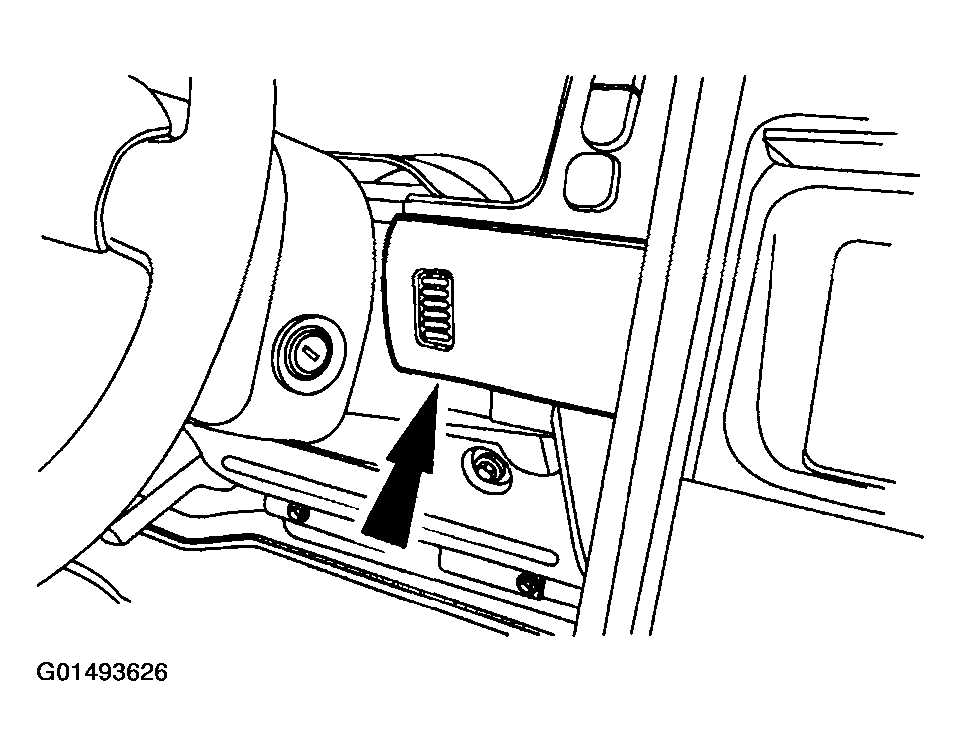

Fig 1: Locating In-Vehicle Temperature And Humidity Sensor Trim Cover
Courtesy of FORD MOTOR CO.
Disconnect the aspirator hose and the in-vehicle temperature and humidity sensor electrical connector.

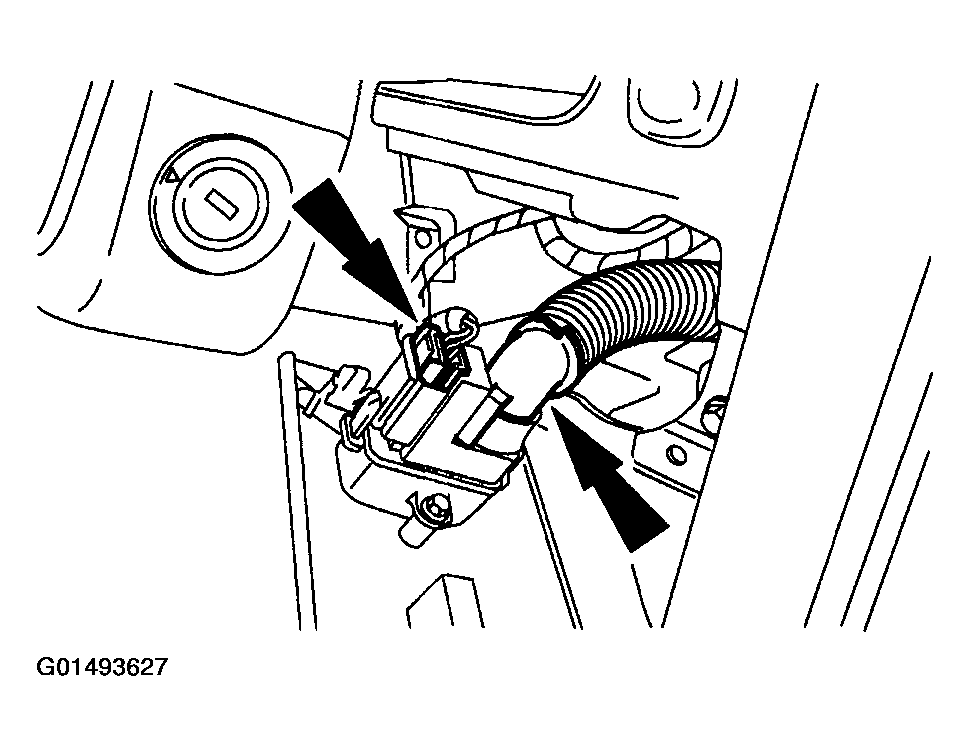

Fig 2: Locating In-Vehicle Temperature And Humidity Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the screws and the in-vehicle temperature and humidity sensor.

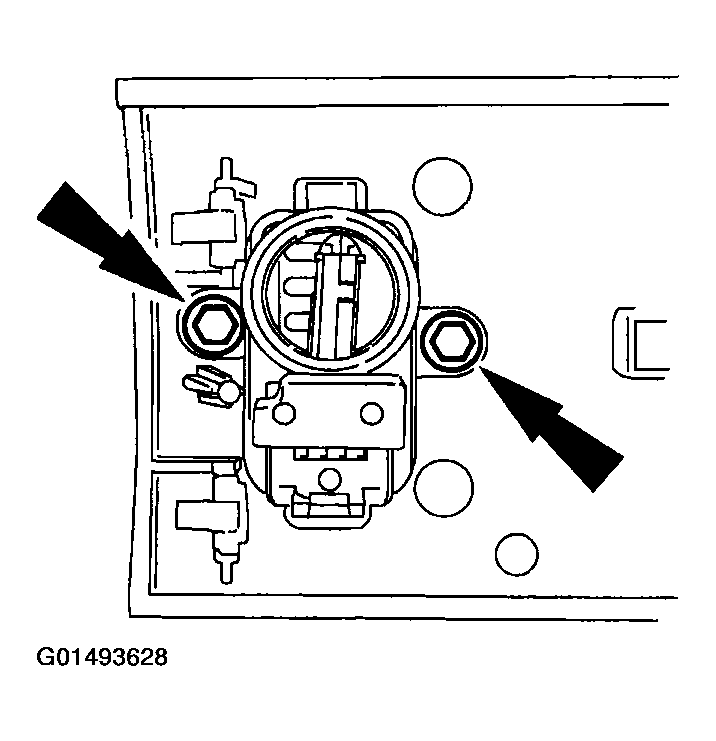

Fig 3: Locating Screws Humidity Sensor
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
