Jacking Points - Front

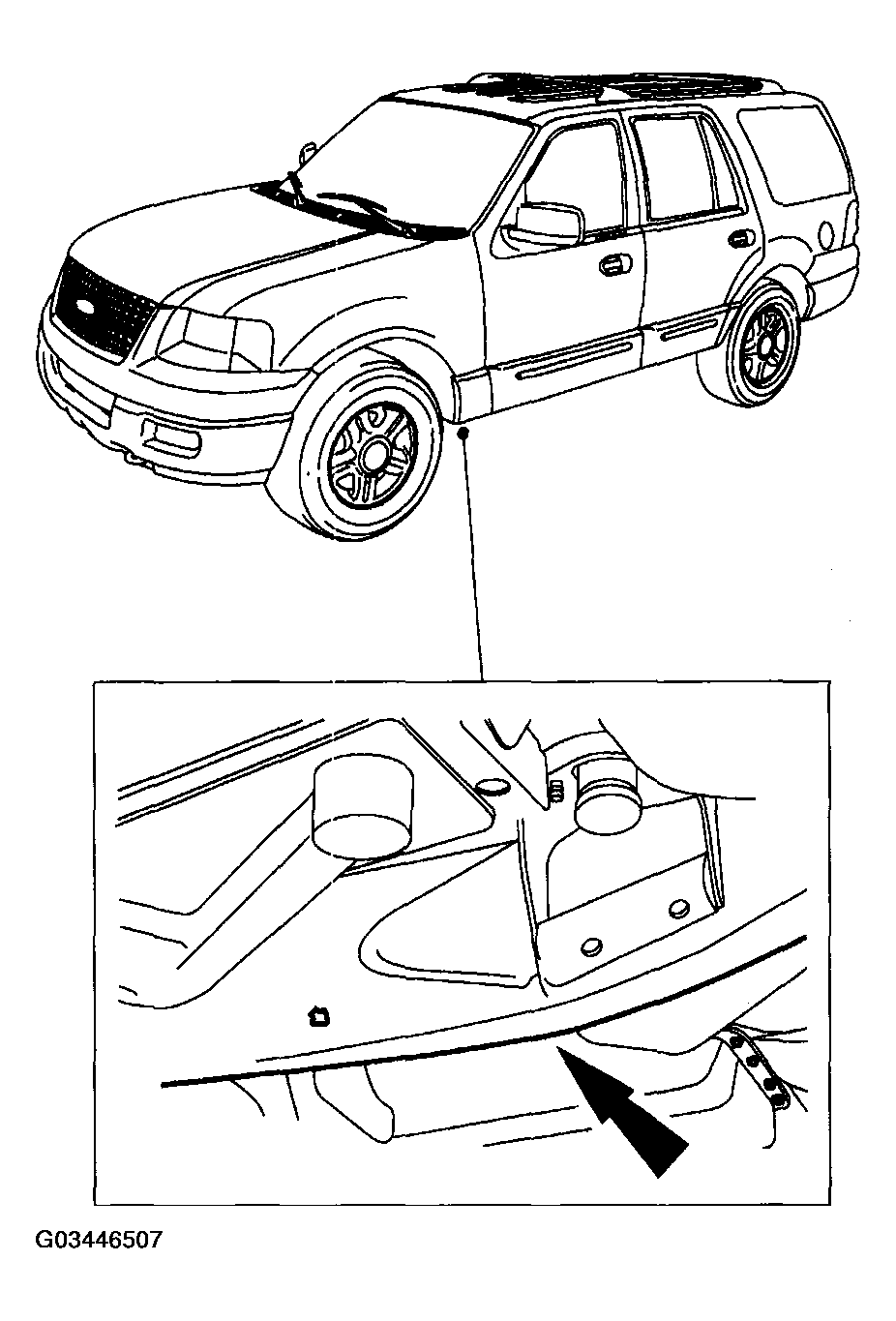

Fig 1: Identifying Jacking Points (Front)
G03446507Courtesy of FORD MOTOR CO.

The front jacking point is indicated by an arrow cutout in the frame, located behind the front tire and wheel assembly.
