Ignition switch (11572)

WARNING: This page is about a different car, the 2004 Lincoln Navigator and 2004 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

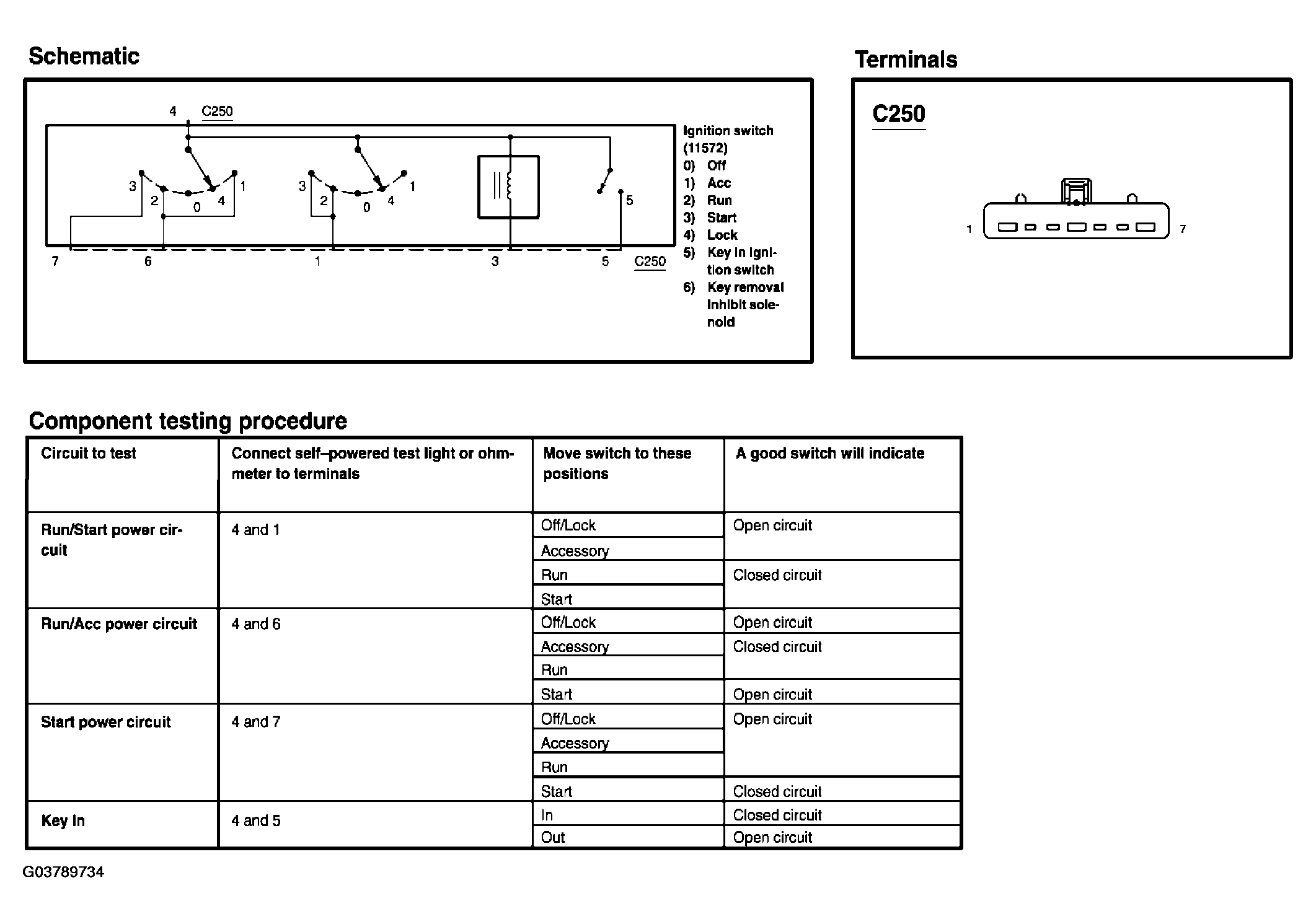

Fig 1: Testing Ignition Switch
G03789734Courtesy of FORD MOTOR CO.
