Transmission Range (Tr) Sensor Adjustment

Fig 1: Identifying Special Tool

Courtesy of FORD MOTOR CO.

Fig 2: Identifying Material Specifications

Courtesy of FORD MOTOR CO.

1. Position the vehicle on a hoist. Place in NEUTRAL.
CAUTION: Do not pry on the swivel tube to disconnect the transmission shift linkage.
Fig 3: Disconnecting Manual Lever Shift Control Cable
Courtesy of FORD MOTOR CO.
2. Disconnect the manual lever shift control cable.
CAUTION: Discard the outer manual control lever shaft nut. Do not reuse. The old nut will not retain the torque specification.
3. Remove the manual control lever.
   1. Remove the nut.
   2. Remove the lever.

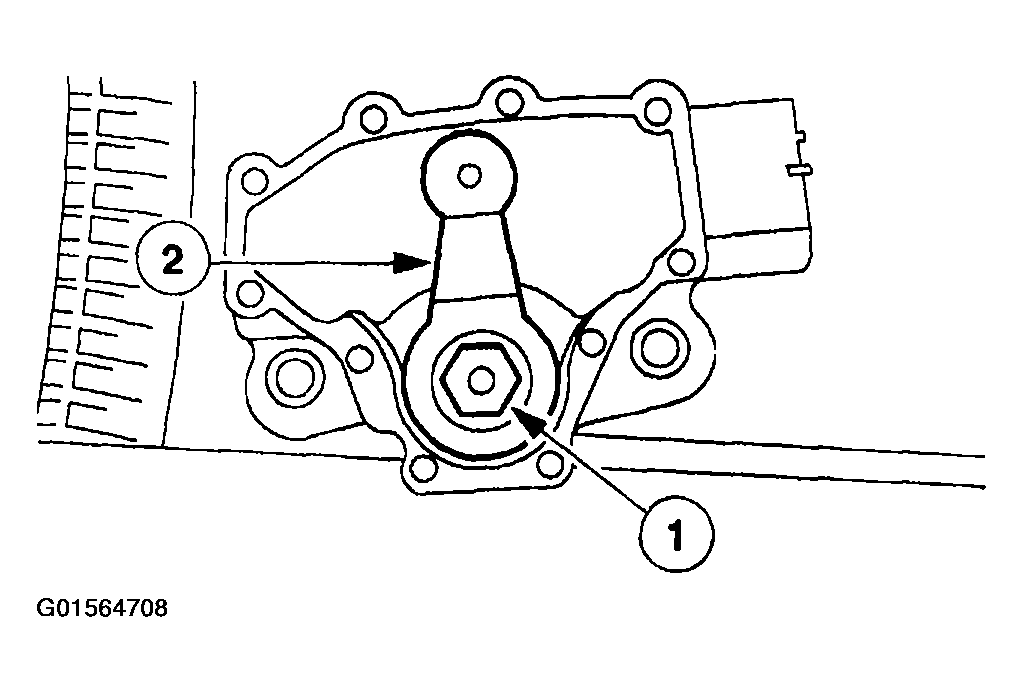

      Fig 4: Removing Manual Control Lever

      Courtesy of FORD MOTOR CO.
4. Loosen the digital TR sensor bolts.
   Fig 5: Loosening Digital TR Sensor Bolts

   Courtesy of FORD MOTOR CO.
NOTE: The manual lever must be in the NEUTRAL position.

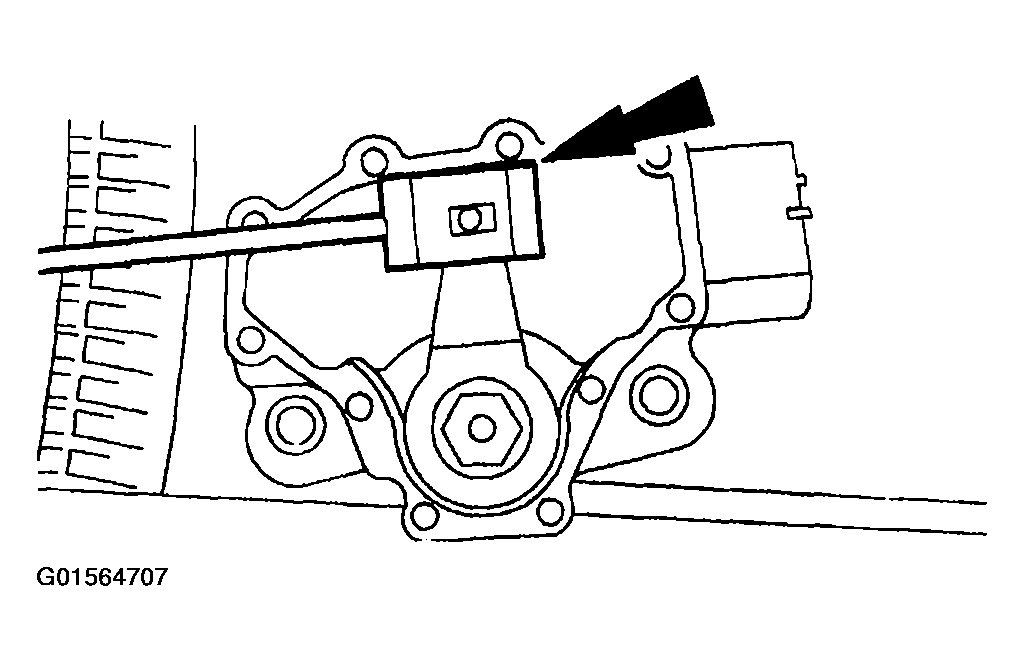

Fig 6: Aligning Digital TR Sensor Slots
Courtesy of FORD MOTOR CO.
5. Using the special tool, align the digital TR sensor slots. The tool is designed to fit snug.
6. Tighten the digital TR sensor bolts.
   Fig 7: Tightening Digital TR Sensor Bolts

   Courtesy of FORD MOTOR CO.
7. Install the manual control lever.
   1. Position the manual control lever.
   2. Install a new manual control lever outer nut.

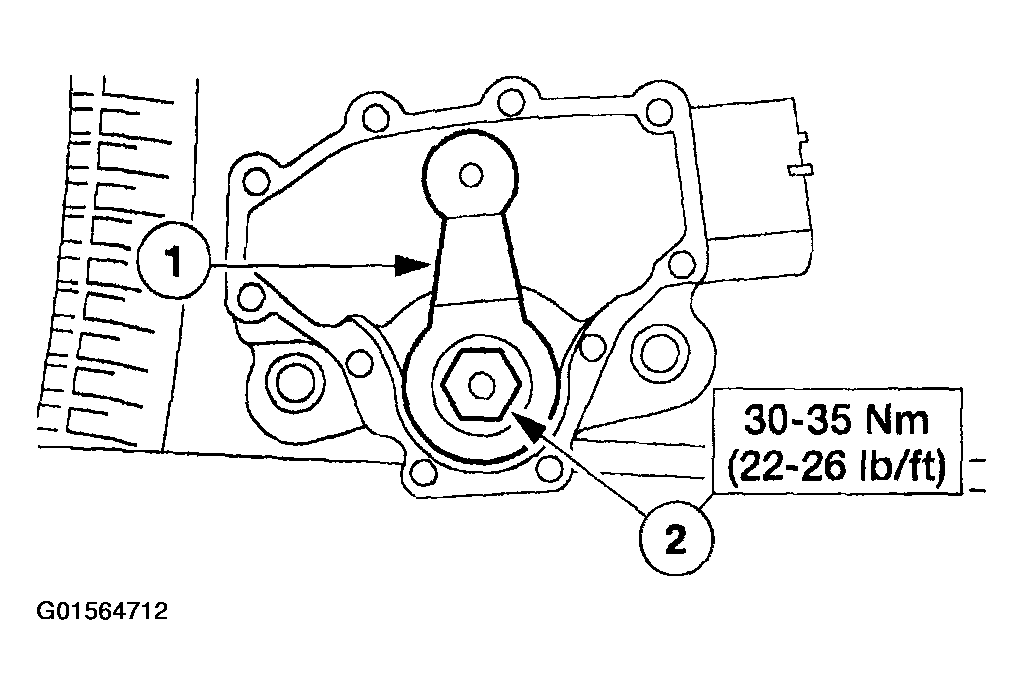

      Fig 8: Installing Manual Control Lever

      Courtesy of FORD MOTOR CO.
8. With the manual lever in overdrive connect the shift lever control cable.
   Fig 9: Material Specifications

   Courtesy of FORD MOTOR CO.
9. Lower the vehicle.
