Pump And Intermediate Clutch Piston: Notes

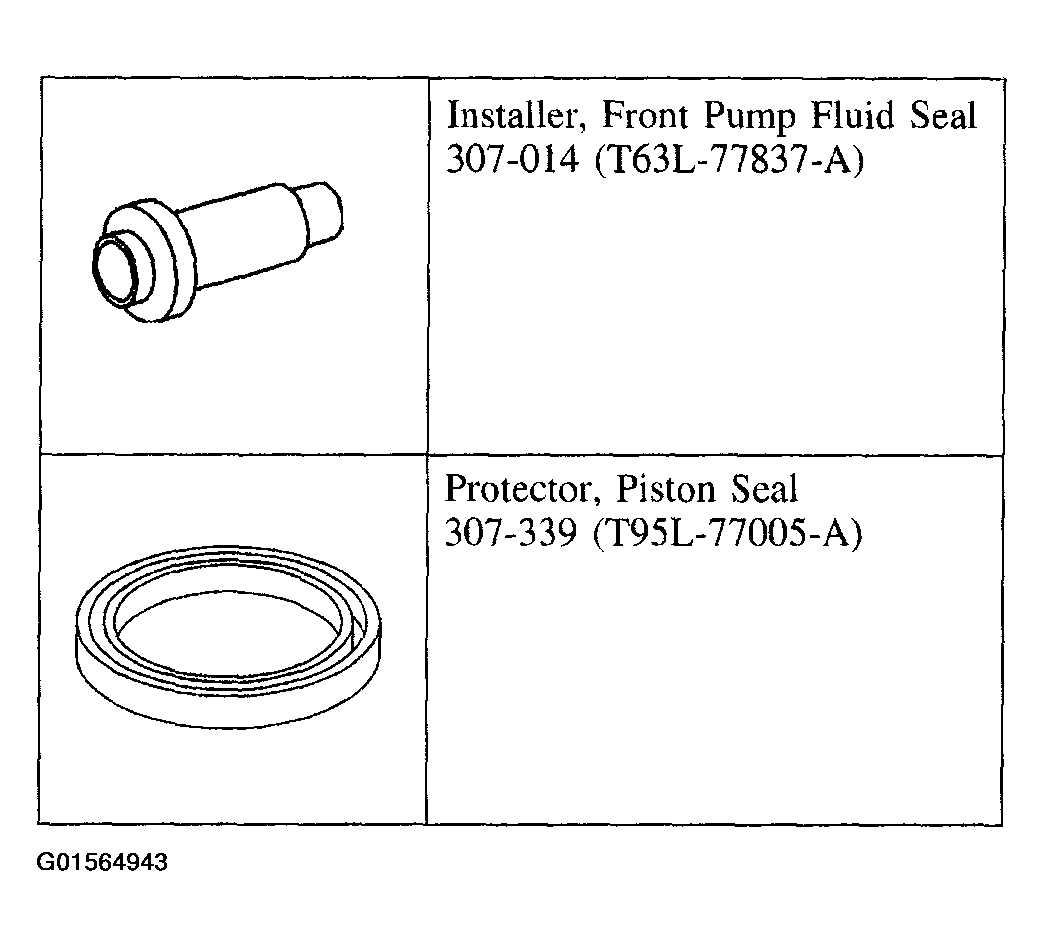

Fig 1: Identifying Special Tools
G01564943Courtesy of FORD MOTOR CO.

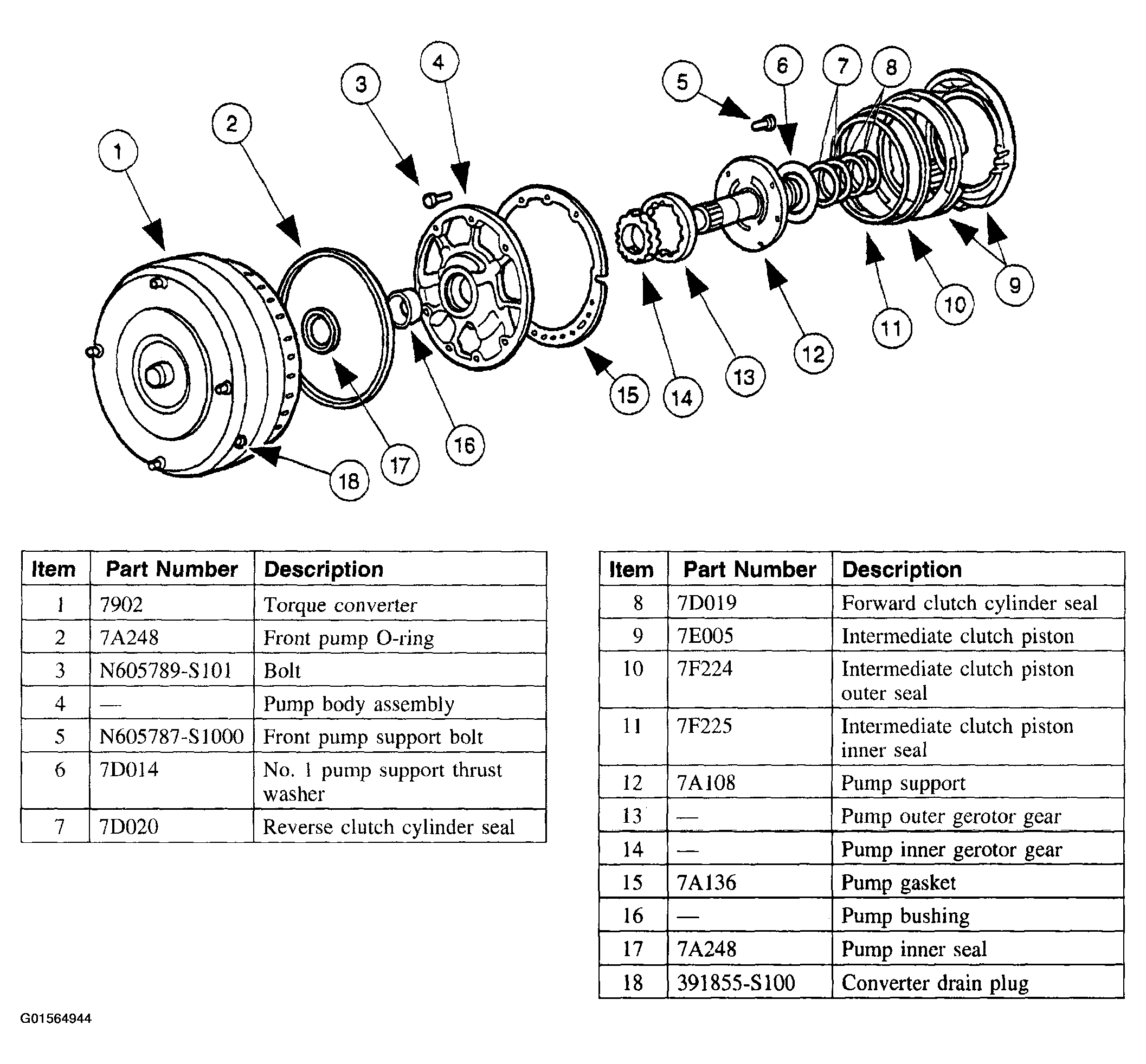

Fig 2: Exploded View Of Pump And Intermediate Clutch Piston And Parts Description Chart
G01564944Courtesy of FORD MOTOR CO.
