Reverse Sun Gear: Disassembly

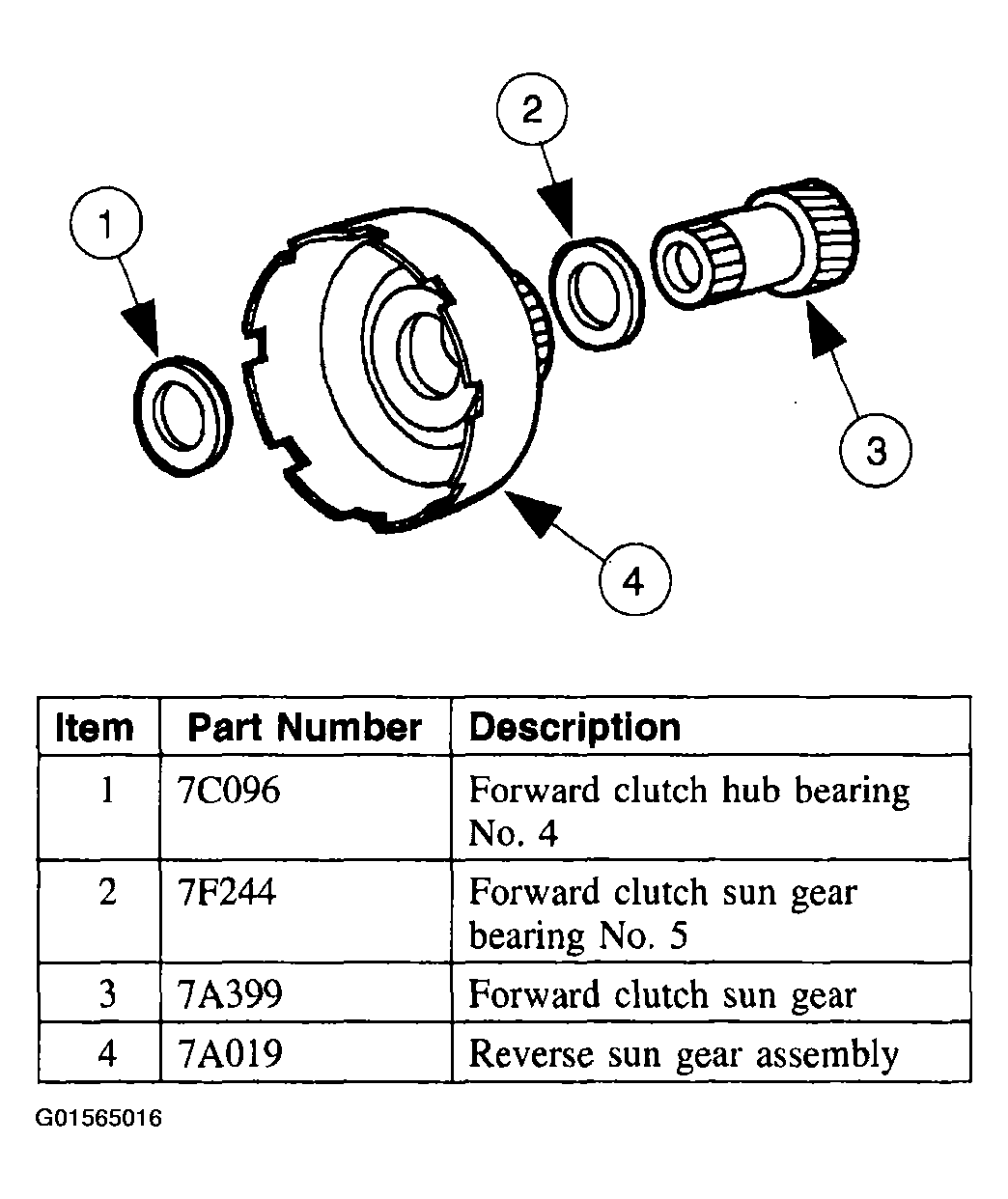

Fig 1: Identifying Reverse Sun Gear Components And Parts Description Chart
G01565016Courtesy of FORD MOTOR CO.
  1. Remove the reverse clutch sun gear assembly and the No. 4 forward clutch hub bearing and race.

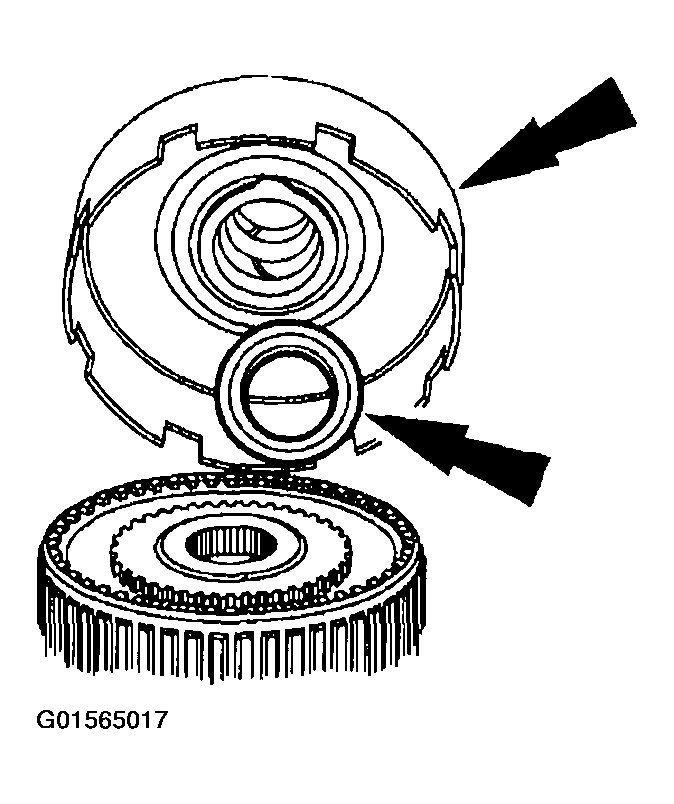

    Fig 2: Removing Clutch Sun Gear Assembly And The No. 4 Forward Clutch Hub Bearing And Race
    G01565017Courtesy of FORD MOTOR CO.
  2. Remove the forward clutch sun gear assembly and the No. 5 forward clutch sun gear bearing and race.

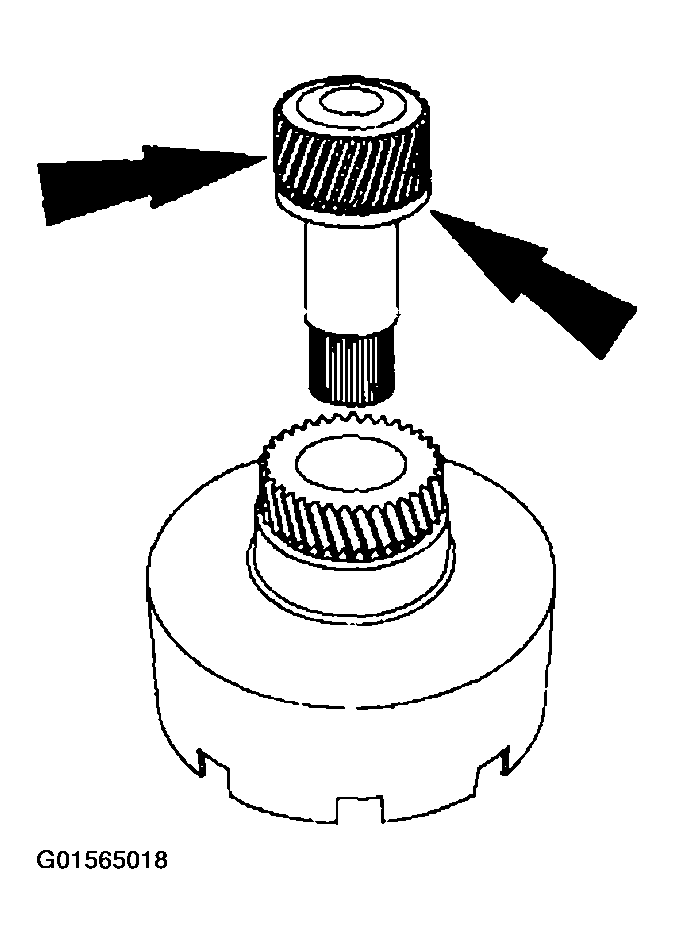

    Fig 3: Removing Forward Clutch Sun Gear Assembly And The No. 5 Forward Clutch Sun Gear Bearing And Race
    G01565018Courtesy of FORD MOTOR CO.
