Apply Components: Clutch-Direct

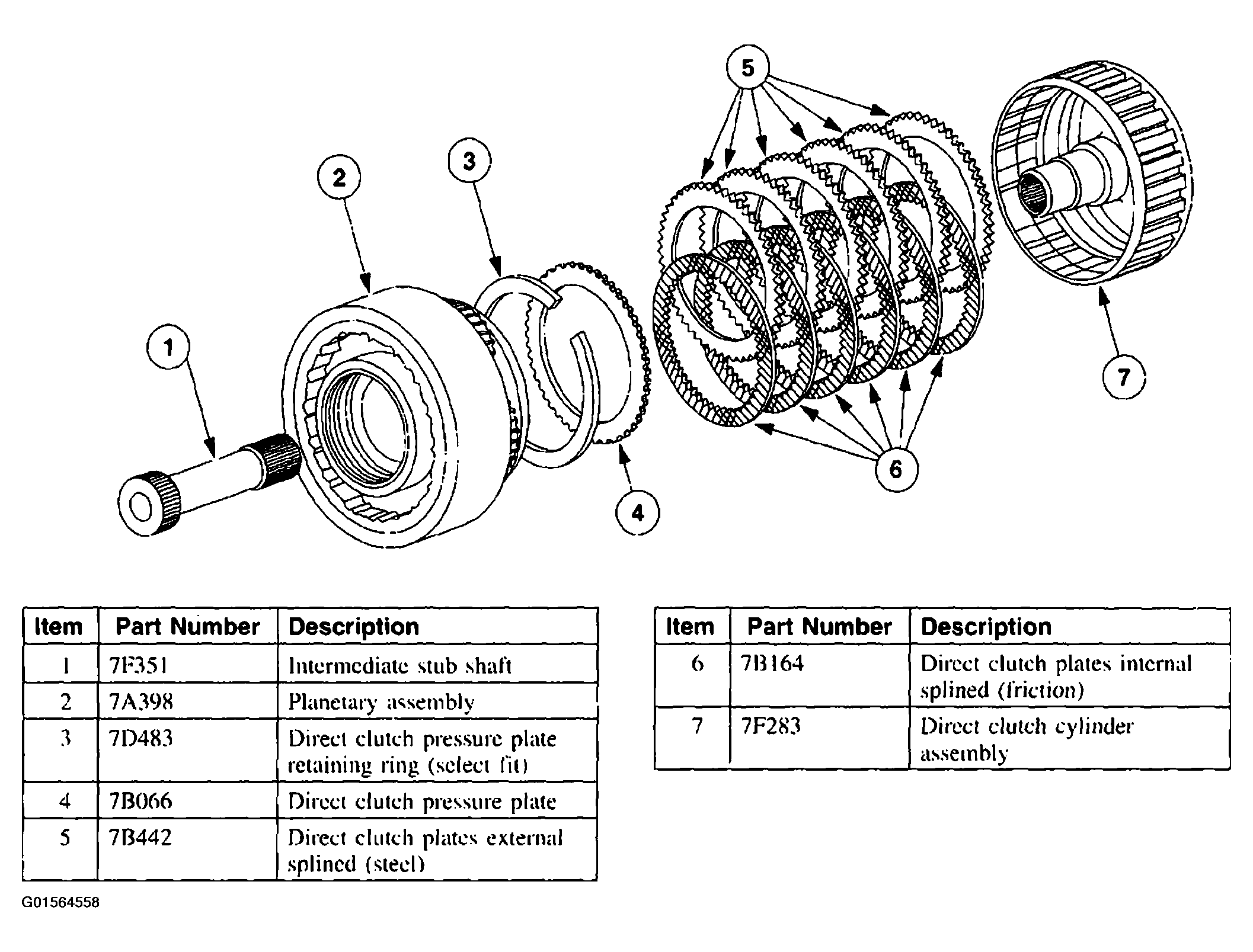

Fig 1: Exploded View Of Clutch-Direct Components And Parts Description Chart
G01564558Courtesy of FORD MOTOR CO.

The direct clutch couples the input shaft to the planet carrier through the stub shaft in third and fourth gears.
