Pinpoint Test D Chart: Speed Control Switches Are Inoperative

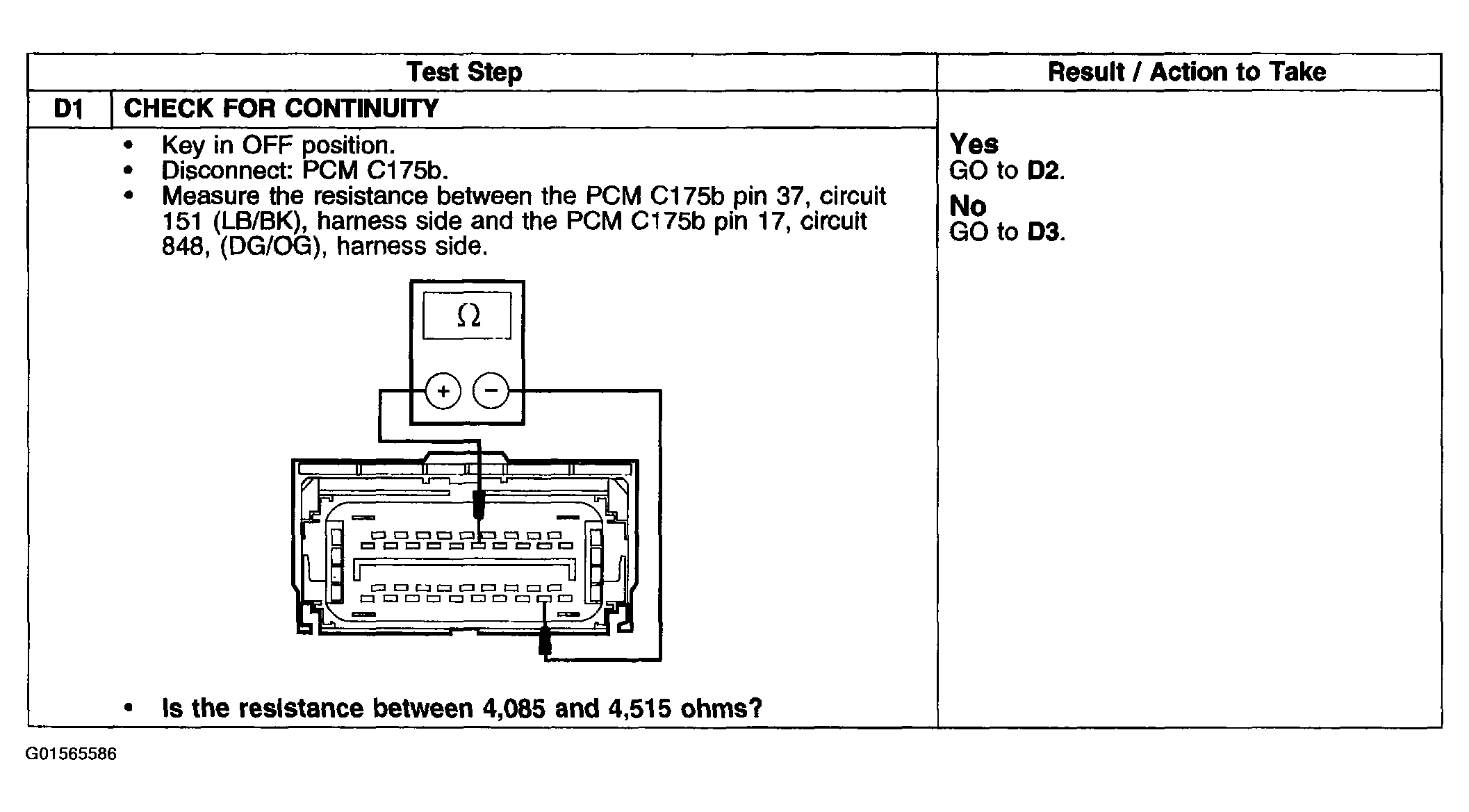

Fig 1: Pinpoint Test D Chart: Speed Control Switches Are Inoperative (D1)

Courtesy of FORD MOTOR CO.

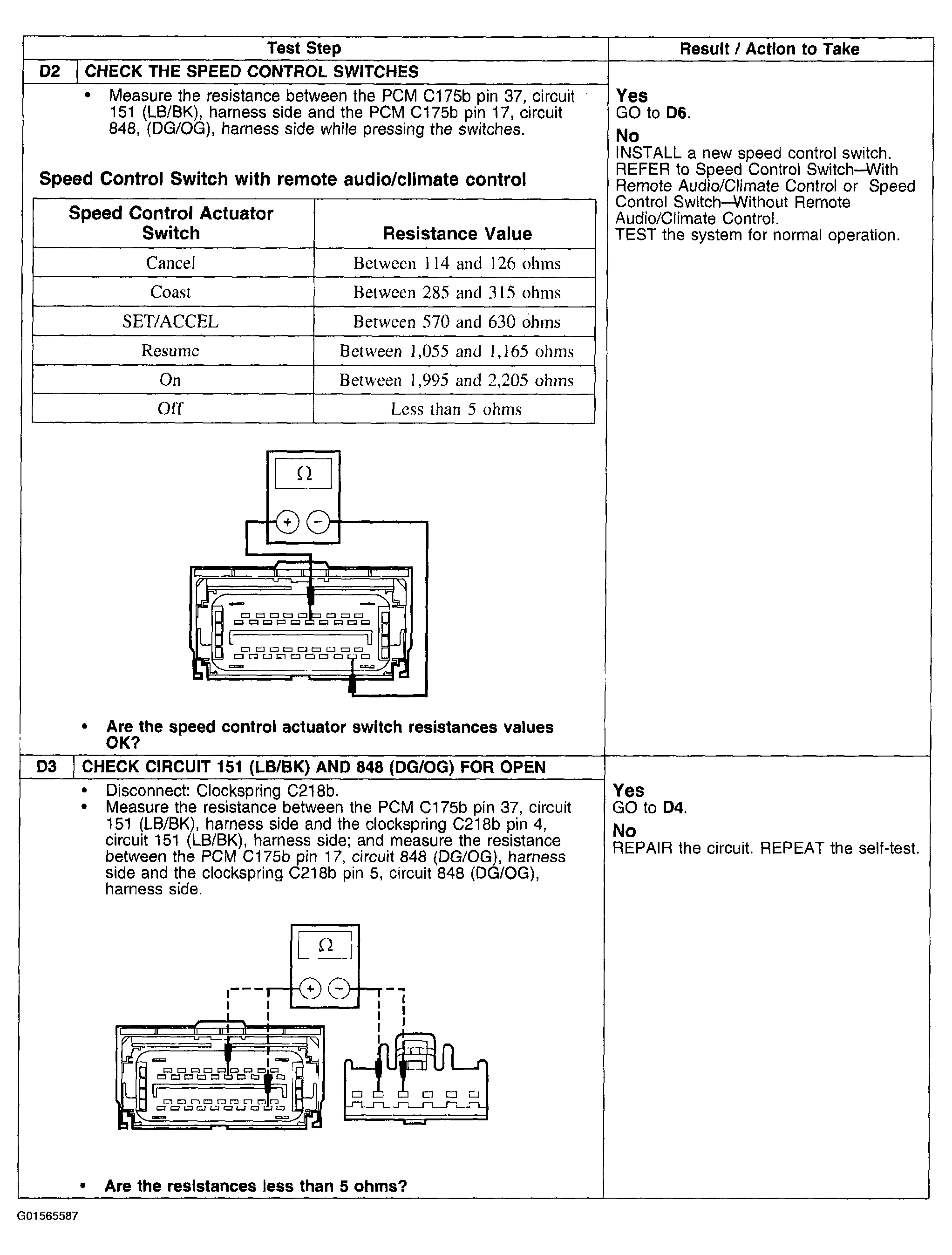

Fig 2: Pinpoint Test D Chart: Speed Control Switches Are Inoperative (D2-D3)

Courtesy of FORD MOTOR CO.

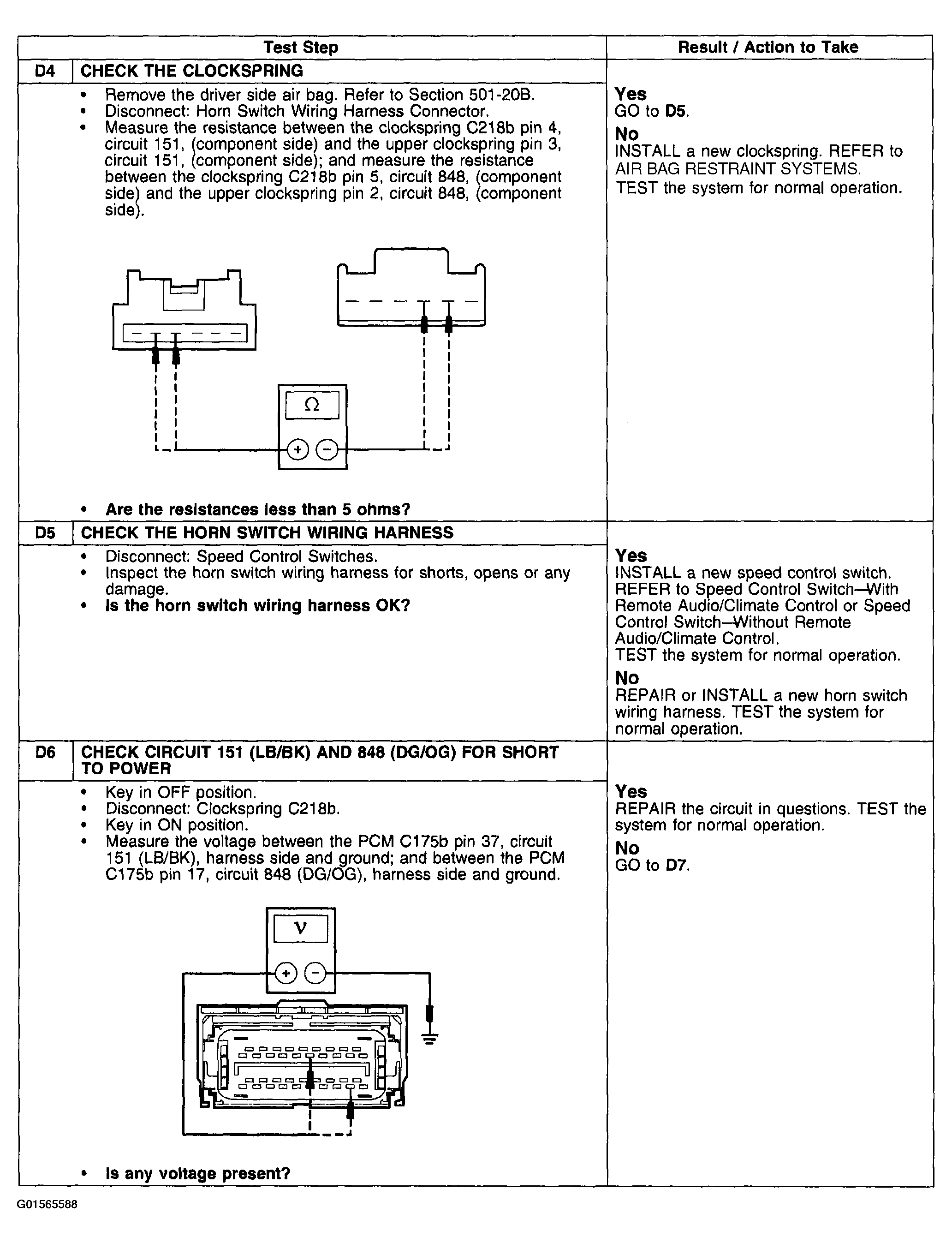

Fig 3: Pinpoint Test D Chart: Speed Control Switches Are Inoperative (D4-D6)

Courtesy of FORD MOTOR CO.

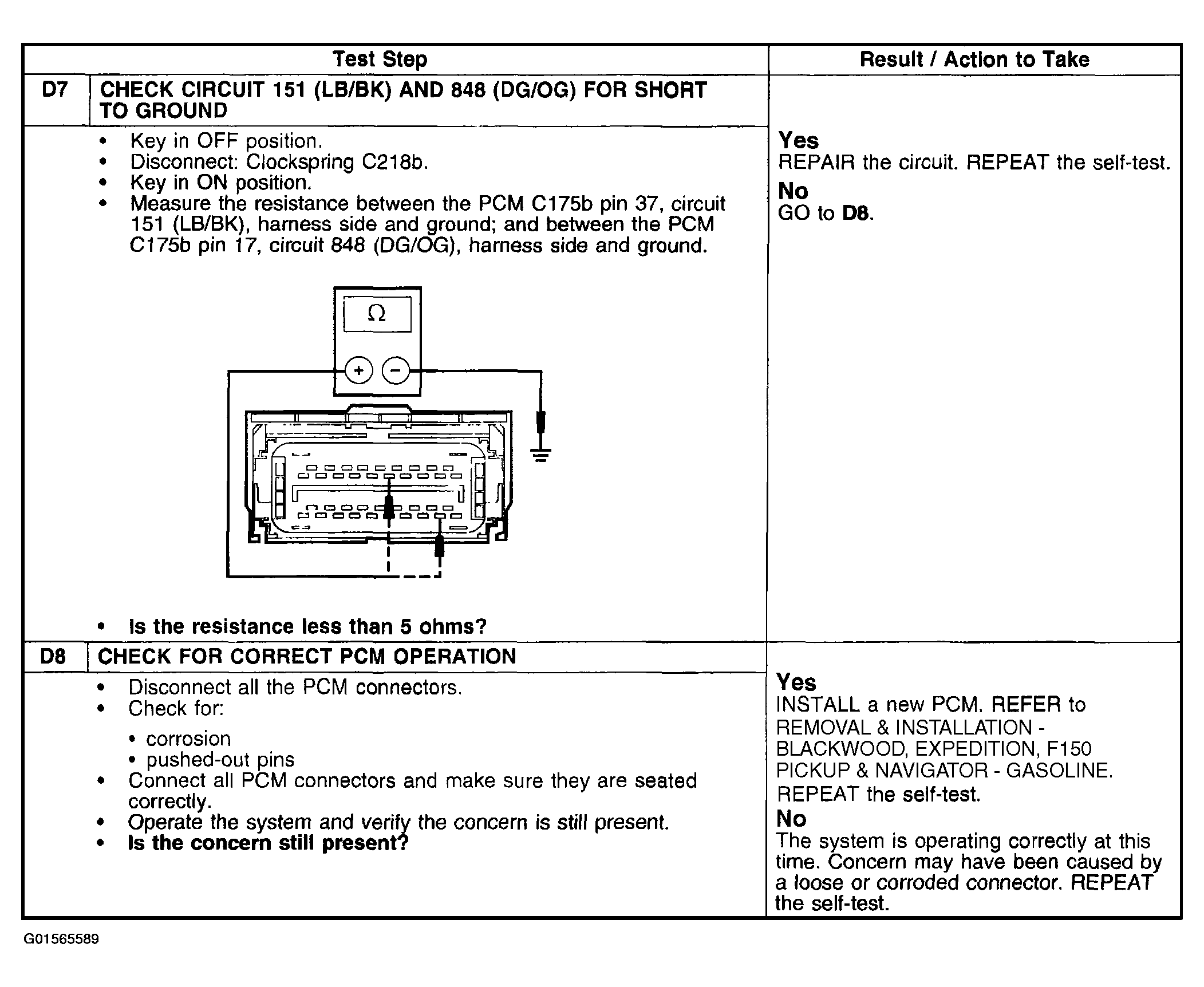

Fig 4: Pinpoint Test D Chart: Speed Control Switches Are Inoperative (D7-D8)

Courtesy of FORD MOTOR CO.
