Oil Cooler: Removal

WARNING: This page is about a different variant/trim than selected.

Raise and support the vehicle.
Remove the drain plug and drain the engine oil.

Fig 1: Removing Drain Plug
Courtesy of FORD MOTOR CO.
Drain the coolant. Refer to ENGINE COOLING .

NOTE: Make sure all O-ring seals are in place.

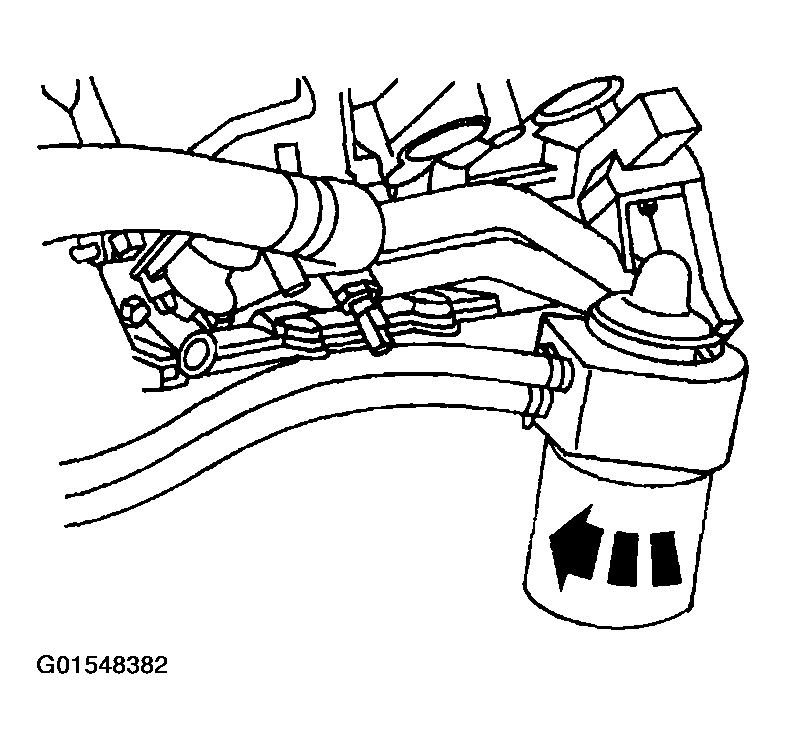

Fig 2: Removing Oil Filter

Courtesy of FORD MOTOR CO.

Remove the oil filter.
Slide the hose clamps down and disconnect the coolant hoses from the oil cooler.

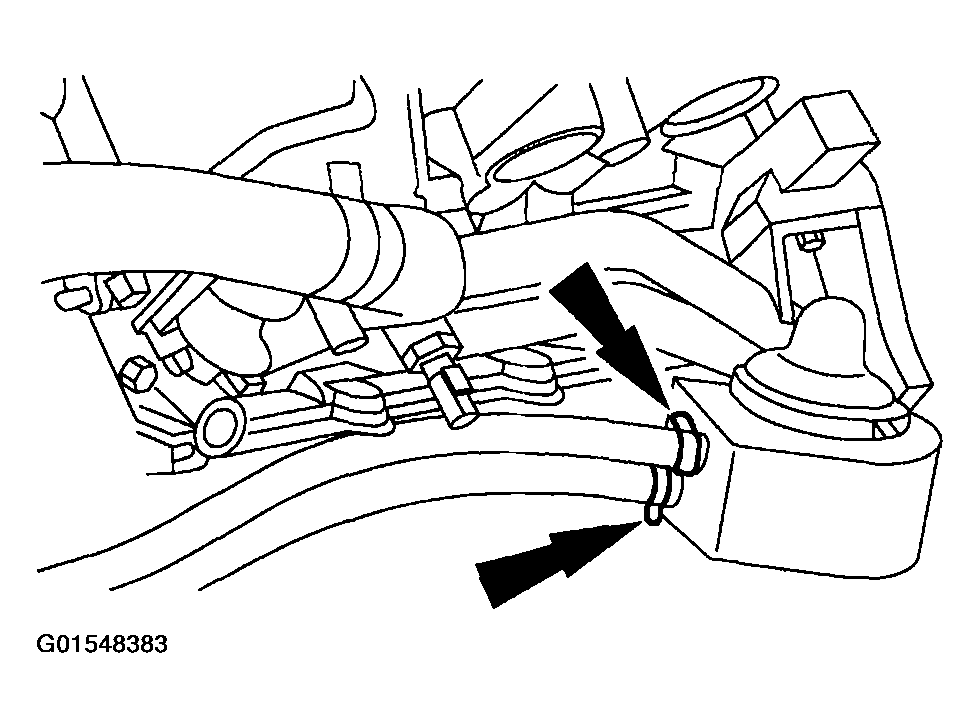

Fig 3: Disconnecting Coolant Hoses From Oil Cooler
Courtesy of FORD MOTOR CO.
Remove the oil cooler insert, and remove the oil cooler.

Fig 4: Removing Oil Cooler
Courtesy of FORD MOTOR CO.
