Connecting Rod Cleaning: Inspection

WARNING: This page is about a different variant/trim than selected.
  1. Using a suitable solvent, thoroughly clean the connecting rod and rod cap.
  2. Mark each connecting rod and its corresponding rod cap for correct installation.
  3. Measure the inside diameter of the piston pin bushing. Install a new connecting rod, if not within specification.

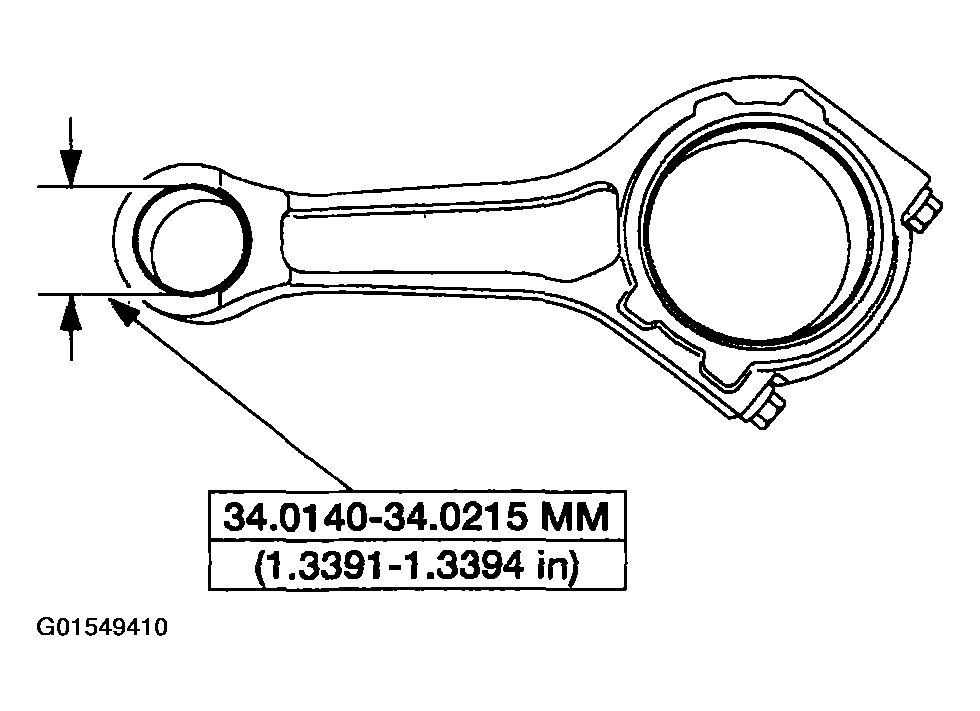

    Fig 1: Identifying Piston Pin Bushing Diameter
    G01549410Courtesy of FORD MOTOR CO.
  4. Using a suitable micrometer, measure the connecting rod bearing bore.
    1. Remove the connecting rod bearings from the connecting rod and the connecting rod cap. Install the connecting rod cap onto the connecting rod and tighten the bolts.
    2. Further tighten the connecting rod cap bolts.
      • Measure and record the connecting rod bearing bore as indicated. Install new connecting rods if not within specification.

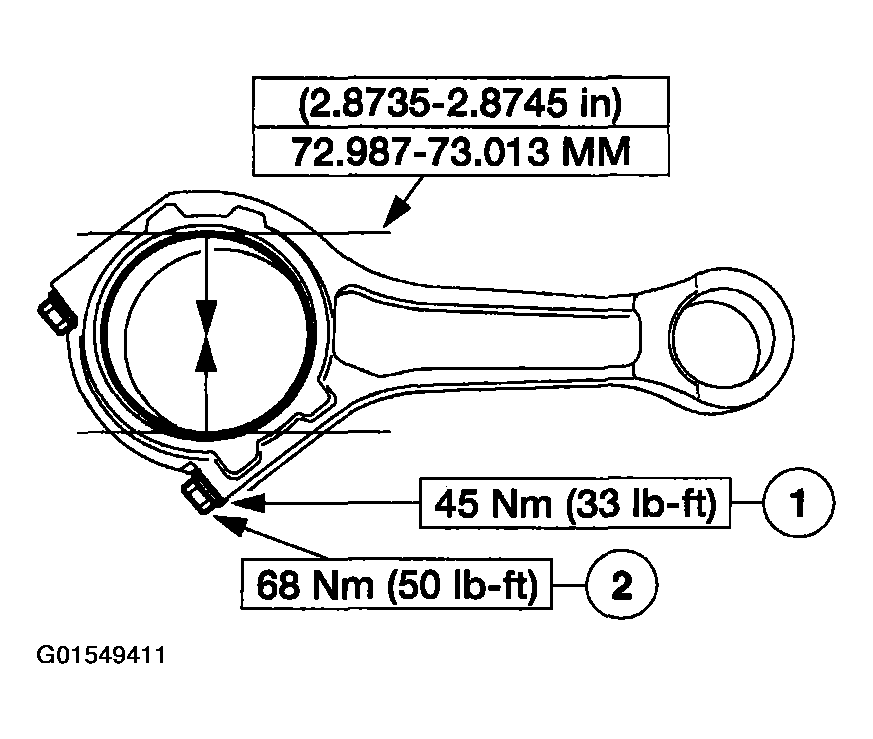

    Fig 2: Measuring Connecting Rod Bearing Bore
    G01549411Courtesy of FORD MOTOR CO.
  5. Using a suitable micrometer, inspect the connecting rod bearing bore taper.
    1. Measure the bearing bore inside diameter near the large chamfer.
    • Measure the bearing bore inside diameter near the small chamfer.
      • The difference between the two readings is the bore taper. Install new connecting rods if not within specifications.
    Fig 3: Identifying Bearing Bore Inside Diameter
    G01549412Courtesy of FORD MOTOR CO.
