Coolant Flow 3.9L

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

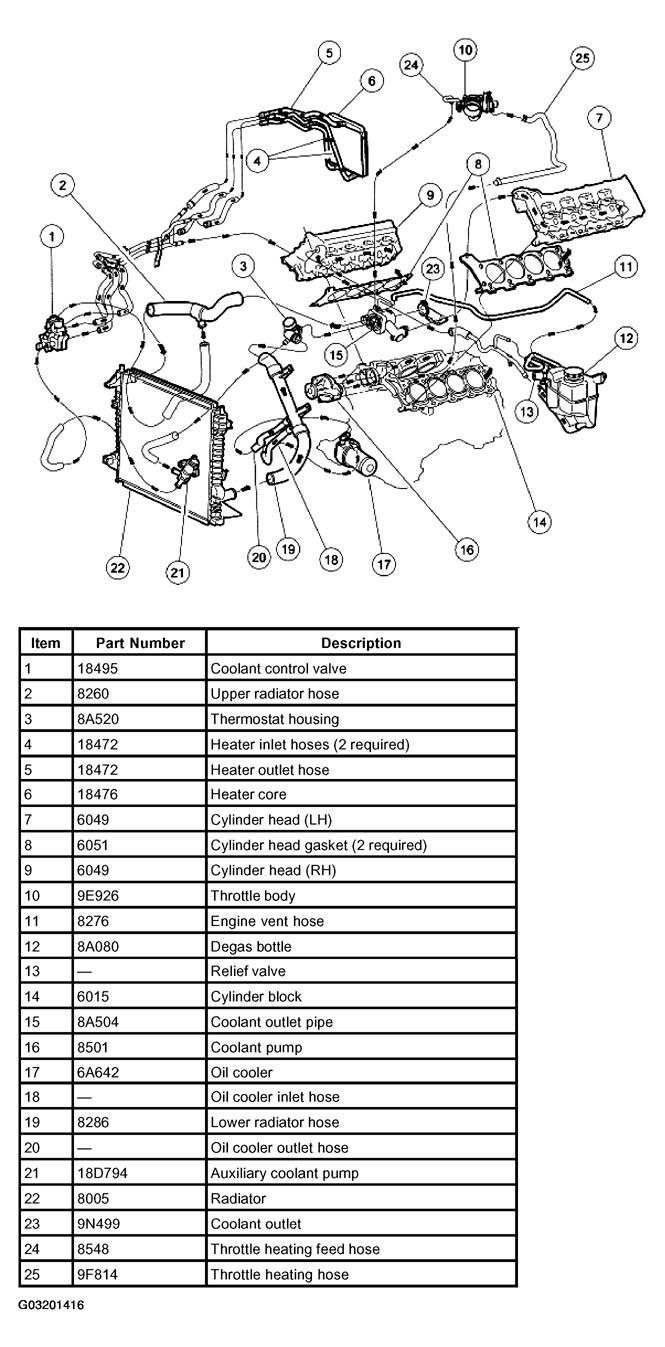

Fig 1: Identifying Coolant Flow 3.9L Component
G03201416Courtesy of FORD MOTOR CO.
