Blower Motor

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Remove the RH floor duct. For additional information, Refer to AIR DISTRIBUTION DUCTS .
Remove the components in the order indicated in Fig 1.
To install, reverse the removal procedure.

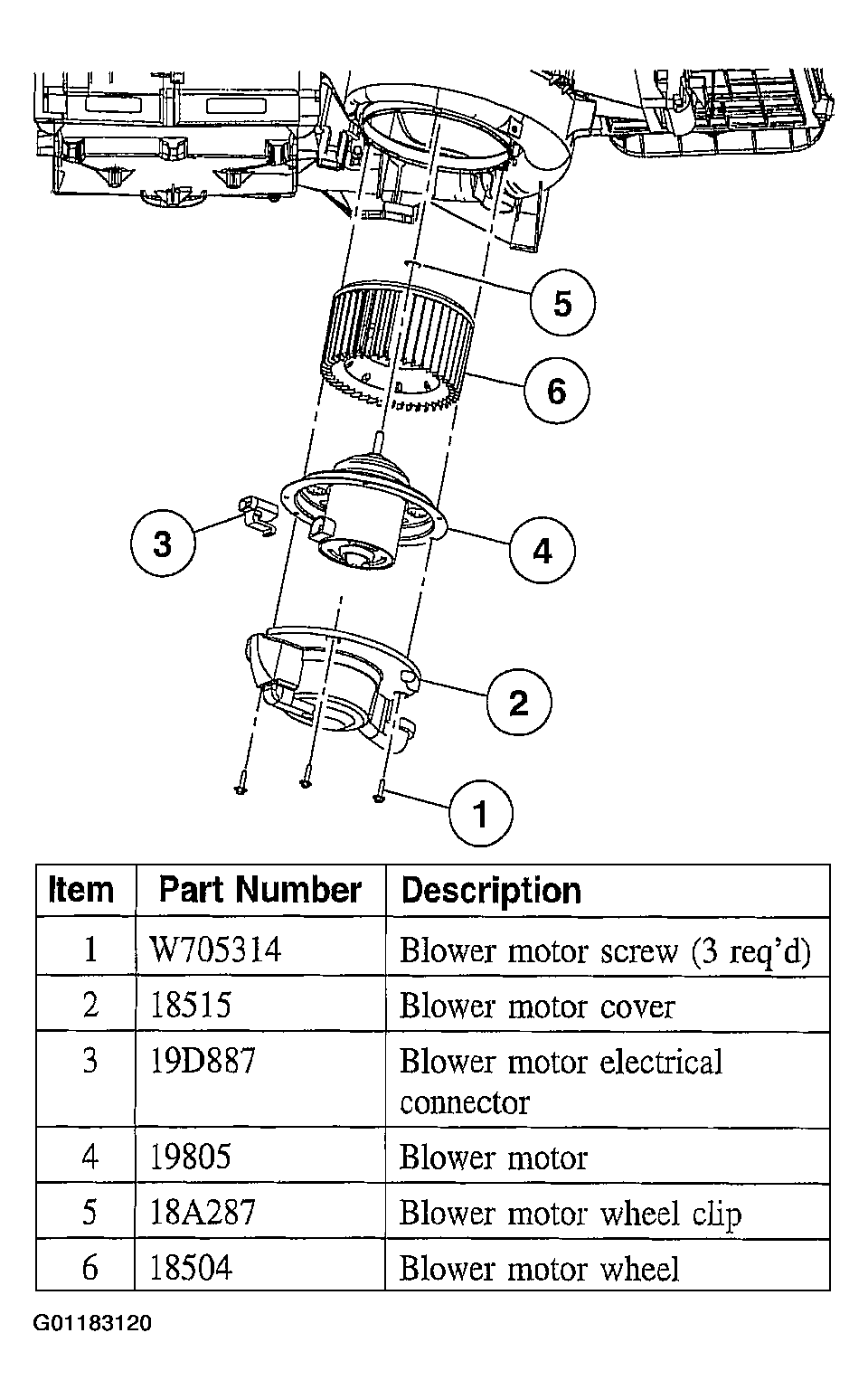

Fig 1: Removing Sequence Of Blower Motor
Courtesy of FORD MOTOR CO.
