Rotary Blade Coupling -Rear Differential Mass Damper: Installation

WARNING: This page is about a different car, the 2003 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: The mass damper bolts must be installed in the sequence shown or damage to the vehicle may occur.

NOTE: Install the mass damper bolts by hand until finger tight.

Install the rear differential mass damper.
- Position the rear differential mass damper and install the bolts in the sequence shown.

  Fig 1: Installing Rear Differential Mass Damper
  Courtesy of FORD MOTOR CO.
Final torque the mass damper bolts in the sequence shown.

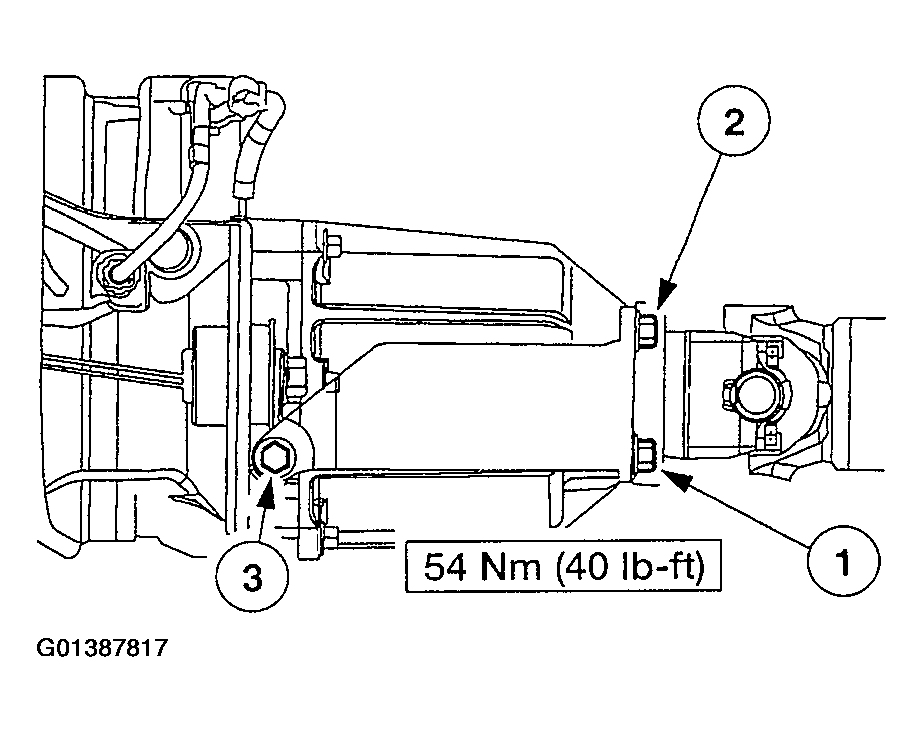

Fig 2: Torquing Mass Damper Bolts
Courtesy of FORD MOTOR CO.
