RR Wheel Speed Sensor C426

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

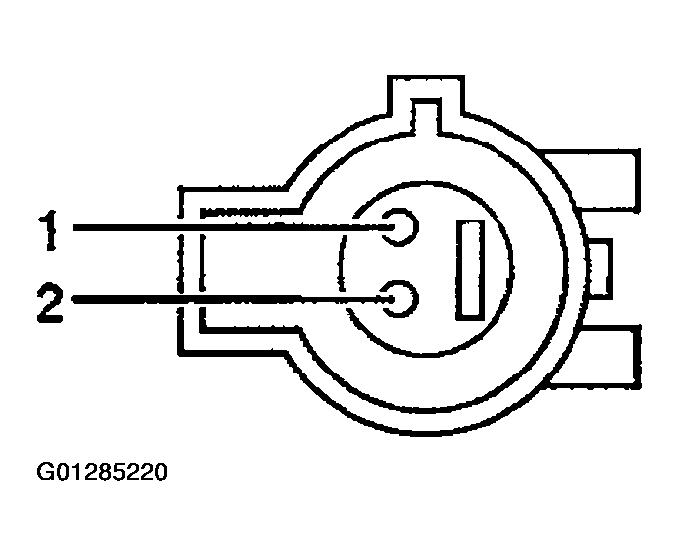

Fig 1: Identifying RR Wheel Speed Sensor C426 Terminals
G01285220Courtesy of FORD MOTOR CO.

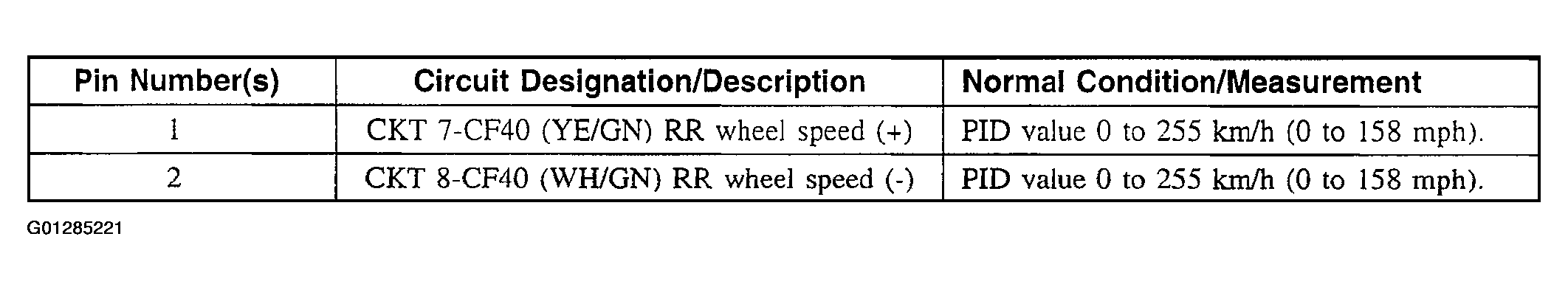

Fig 2: RR Wheel Speed Sensor C426 Terminals Readings
G01285221Courtesy of FORD MOTOR CO.
