LR Wheel Speed Sensor C440

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

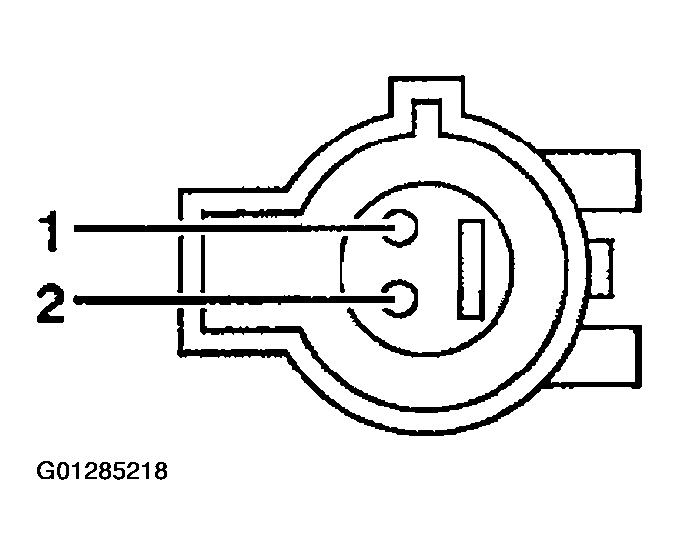

Fig 1: Identifying LR Wheel Speed Sensor C440 Terminals
G01285218Courtesy of FORD MOTOR CO.

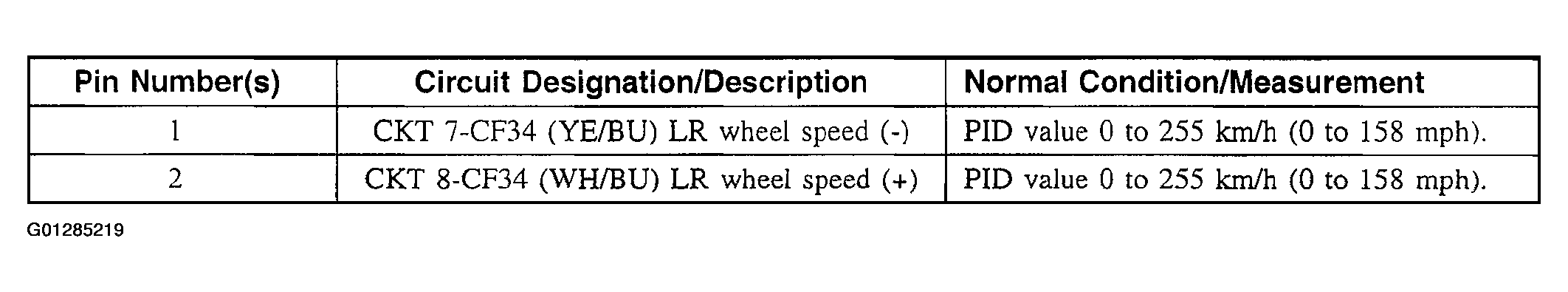

Fig 2: LR Wheel Speed Sensor C440 Terminals Readings
G01285219Courtesy of FORD MOTOR CO.
